Front Lower Arm

FRONT LOWER ARM

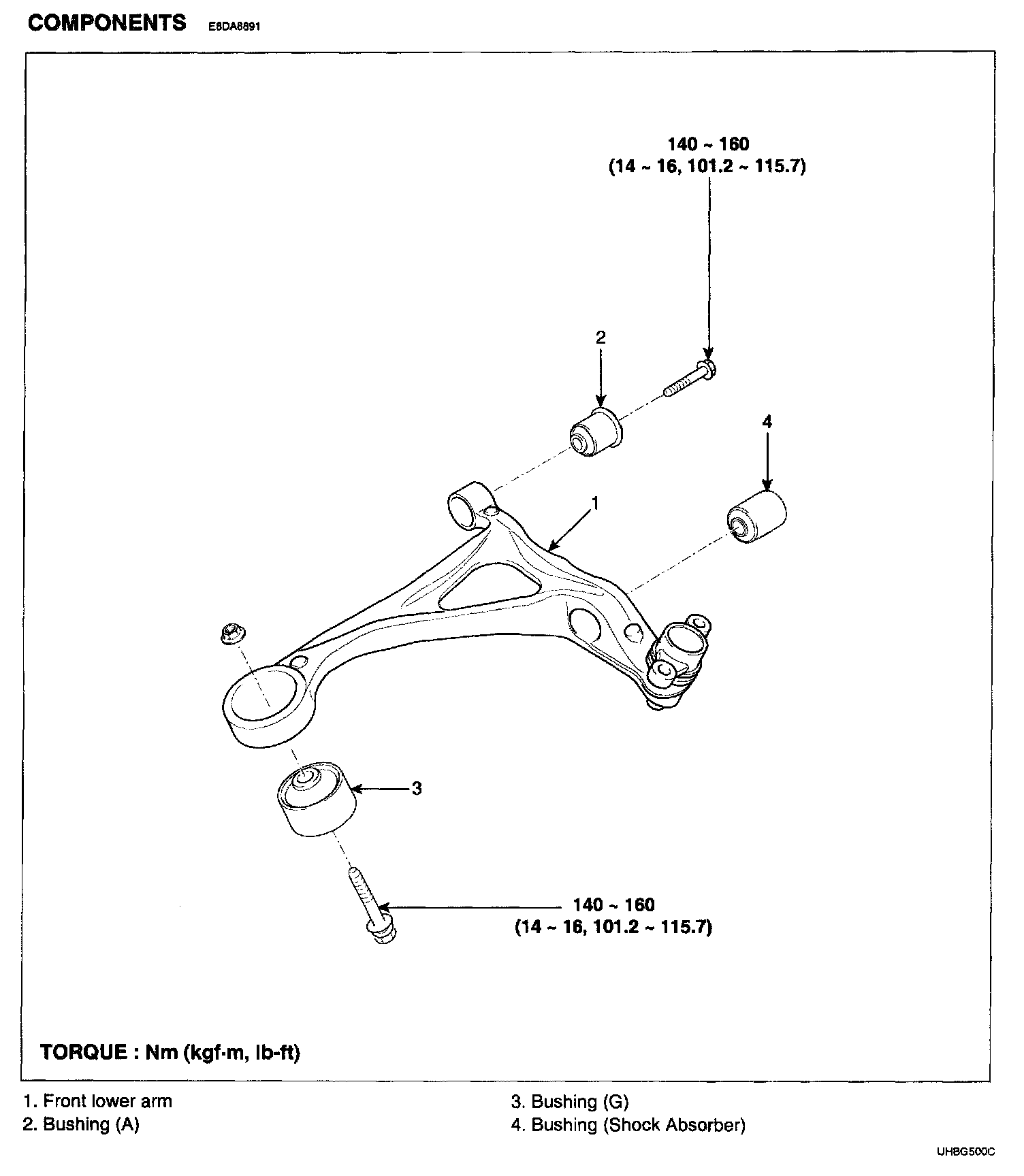

COMPONENTS:

REMOVAL
1. Loosen the wheel nuts slightly.

Raise the front of the vehicle, and make sure it is securely supported.

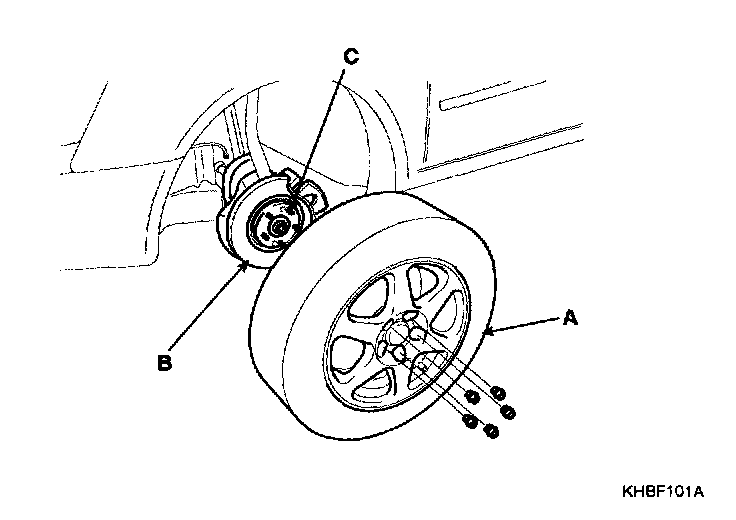

2. Remove the front wheel and tire(A) from front hub(B).





CAUTION: Be careful not to damage the hub bolts(C) when removing the front wheel and tire(A).

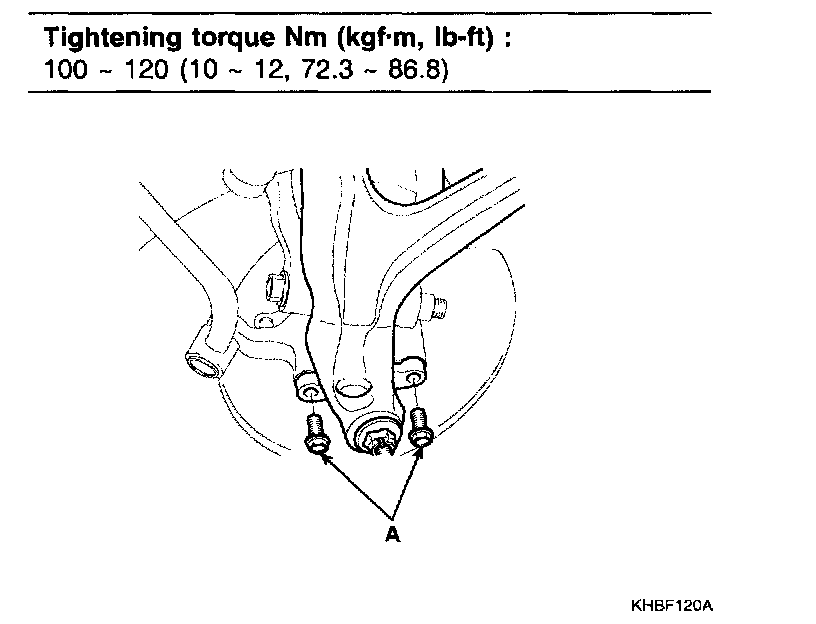

3. Remove the lower arm ball joint mounting bolts(A).





CAUTION: Be careful not to damage to the bolts(A).

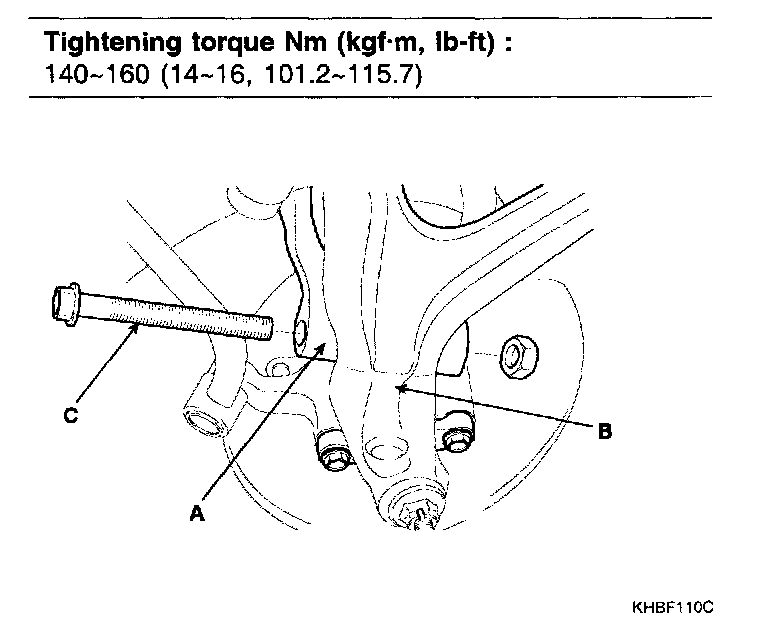

4. Remove the front lower arm(B) fork mounting bolt(C) from the fork(A).





CAUTION: Be careful not to damage to the aluminum lower arm.

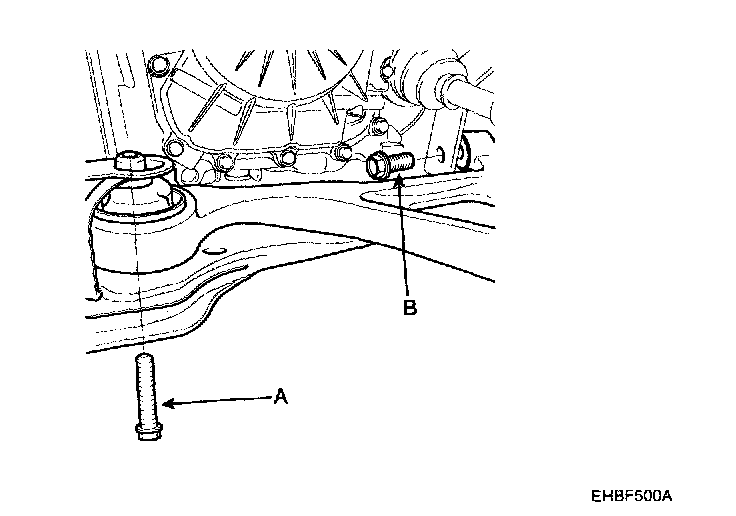

5. Remove the lower arm mounting bolts(A, B).





INSTALLATION
1. Install the lower arm mounting bolts(A, B).

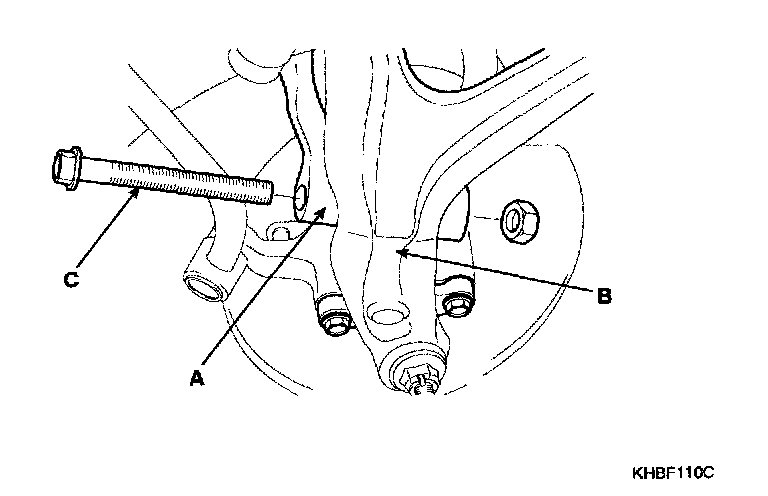

2. Install the lower arm(B) fork mounting bolt(C) to the fork(A).





CAUTION: Be careful not to damage to the aluminum lower arm.

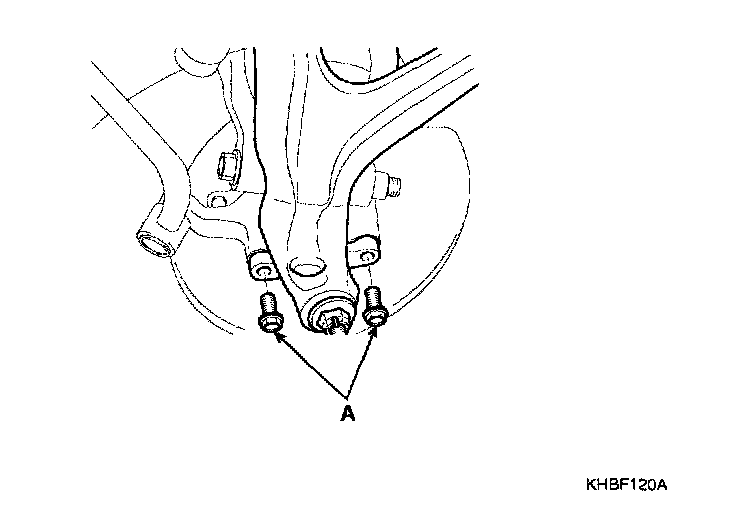

3. Install the lower arm ball joint mounting bolts(A).

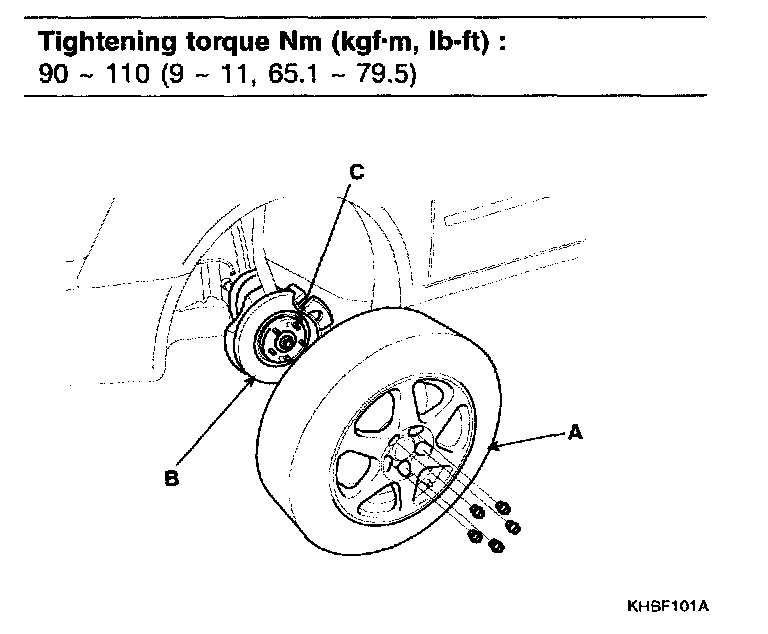

4. Install the wheel and the tire(A) to the front hub(B).





CAUTION: Be careful not to damage the hub bolts(C) when installing the front wheel and tire(A).
