Monitor Scantool Date

Monitor Scantool Data

Variant Code
1. Check for improper installation of EMS/TCU/ESC.
2. Connect scantool to Data Link Connector (DLC).
3. Ignition "ON".
4. Perform variant code. (figure 1).
5. Disconnect scantool.
6. Ignition "OFF" and then ignition "ON". Go to "Component Inspection" Procedure.

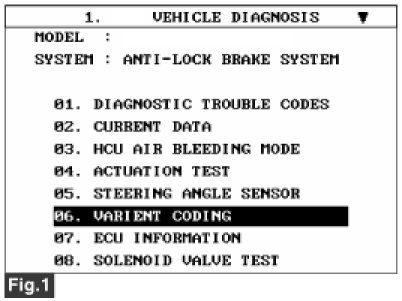

fig 1) Verient coding.
