Engine Control System

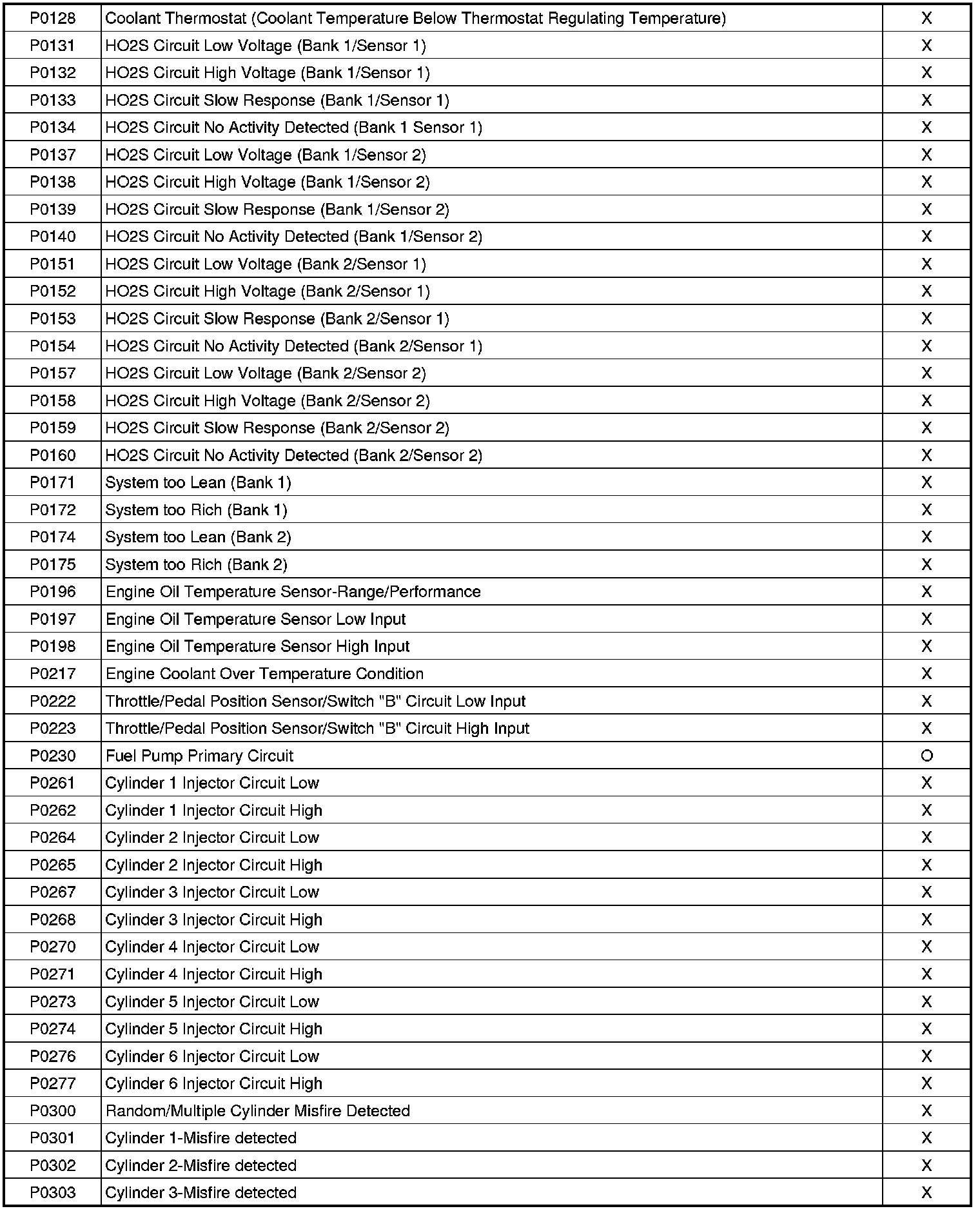

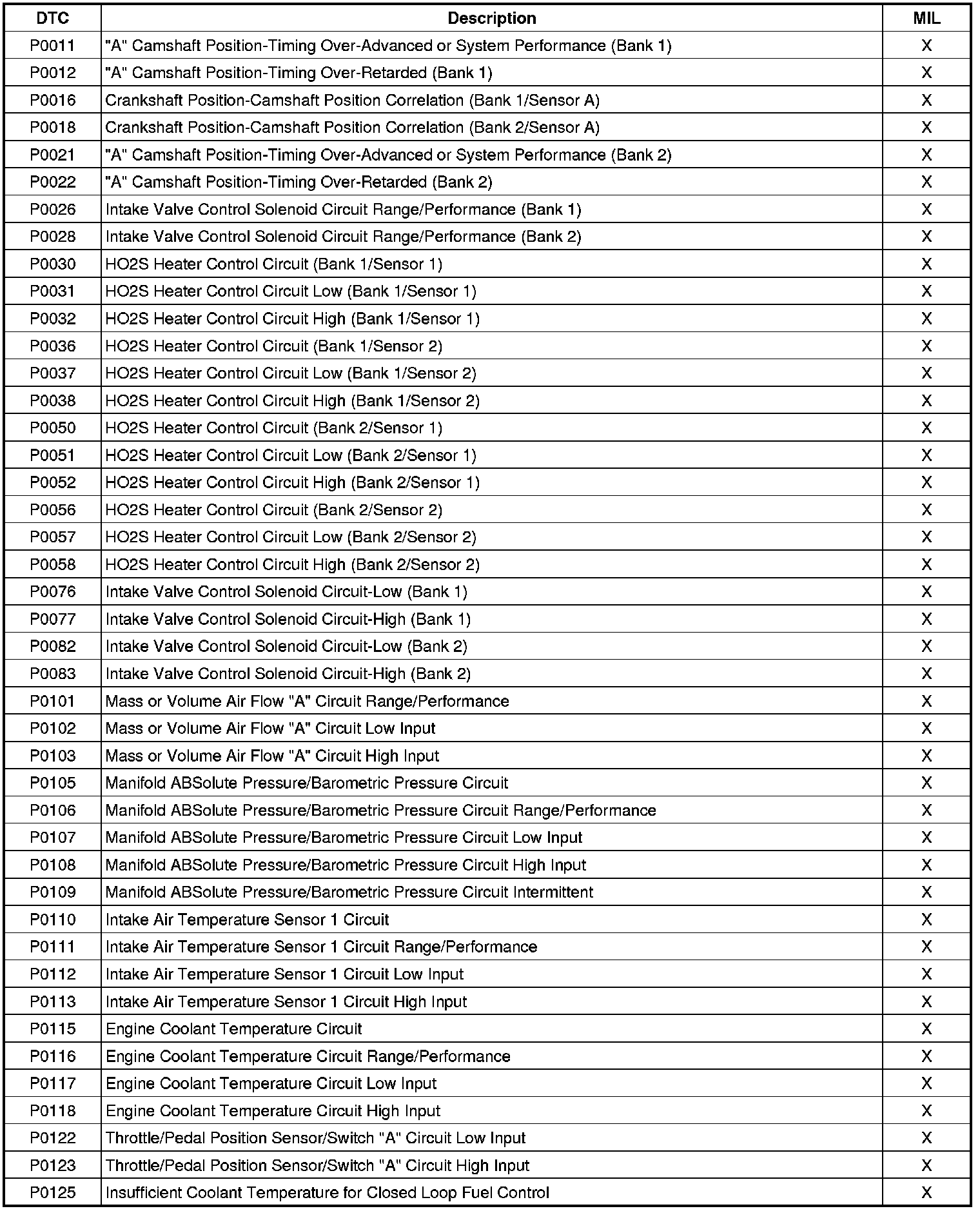

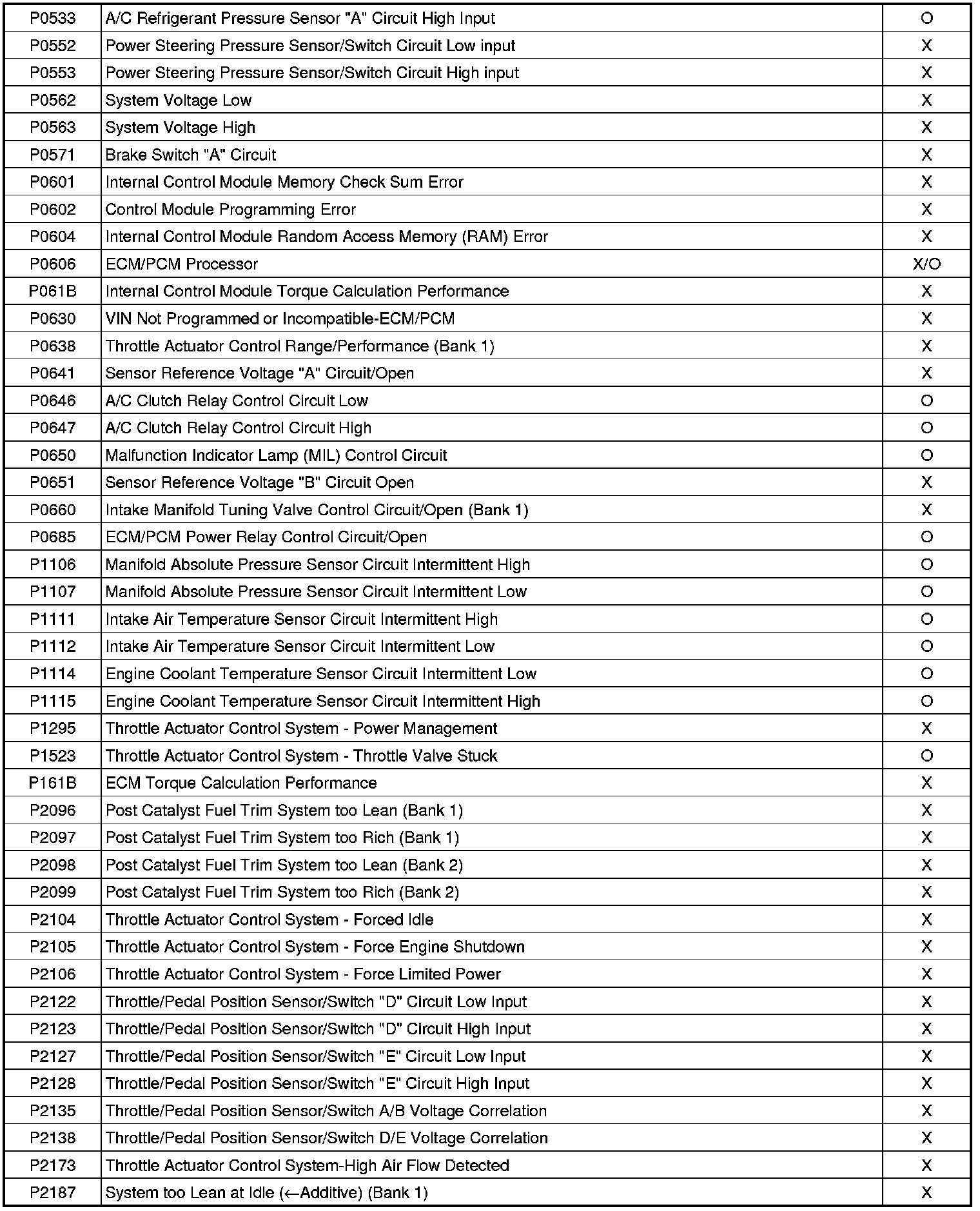

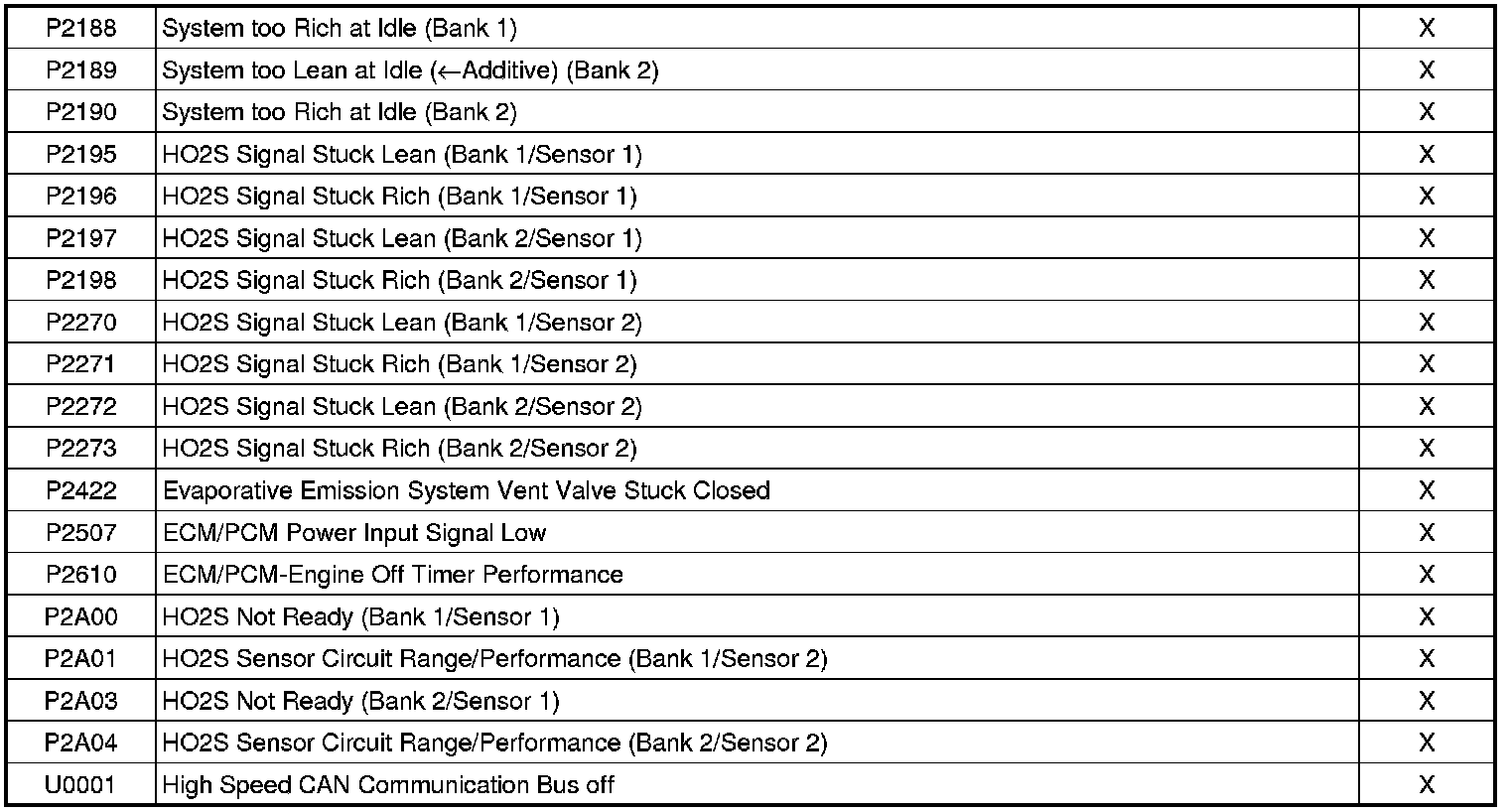

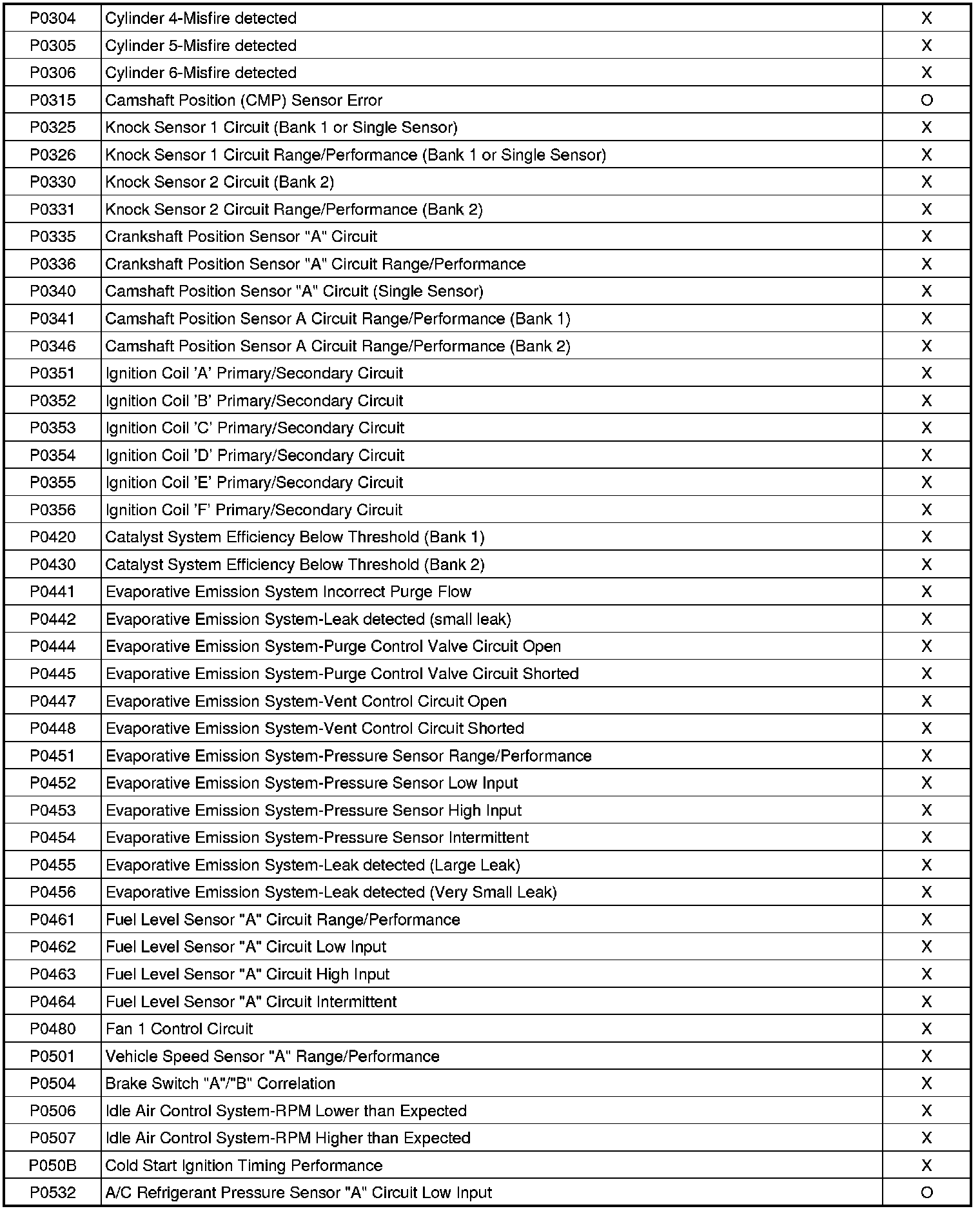

Inspection chart for diagnostic trouble codes (DTC)





















NOTE:
X: MIL ON & Memory
O: MIL OFF & Memory
