Data Monitor Mode




"DATA MONIT6R" MODE

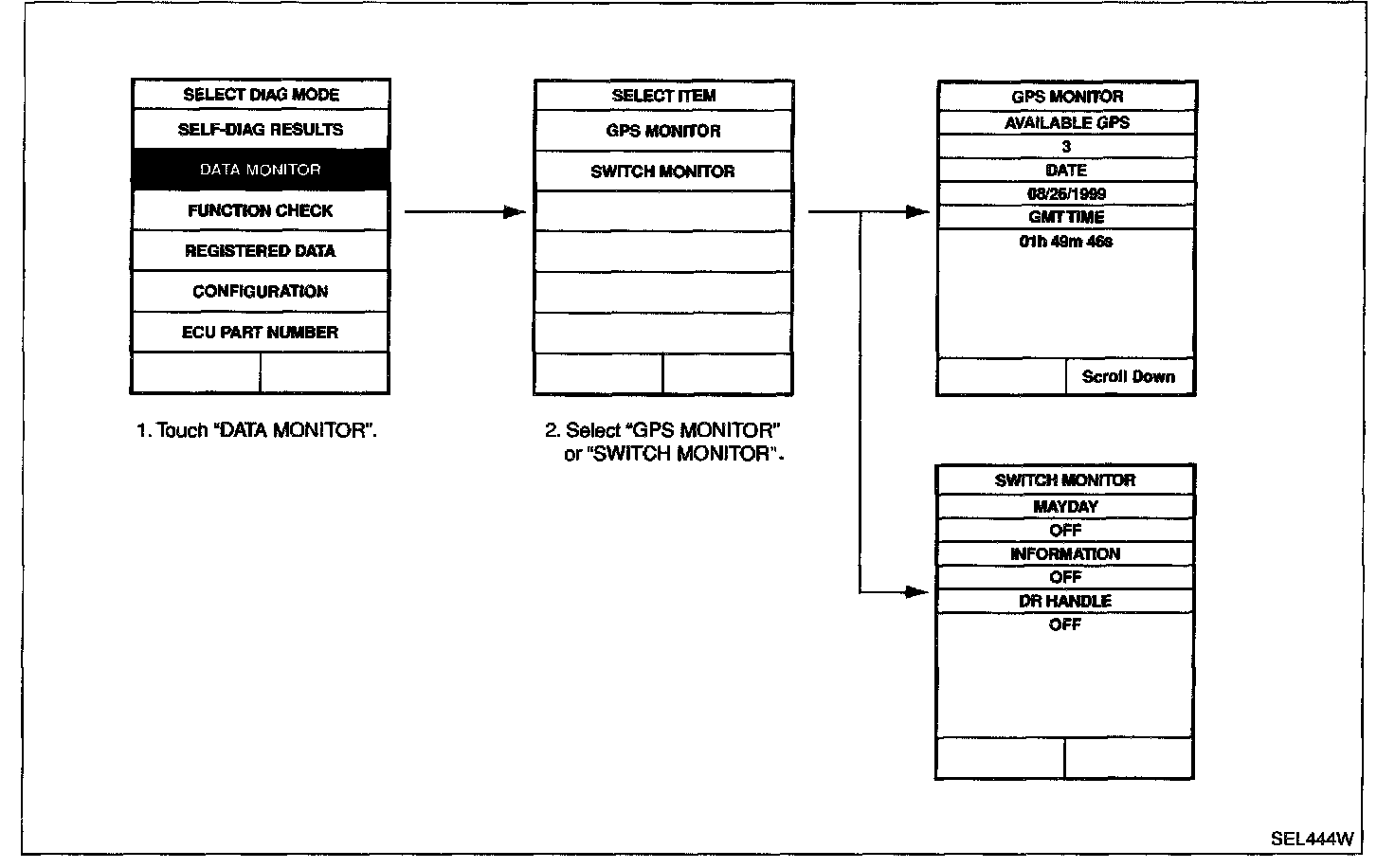

How to Perform Data Monitor

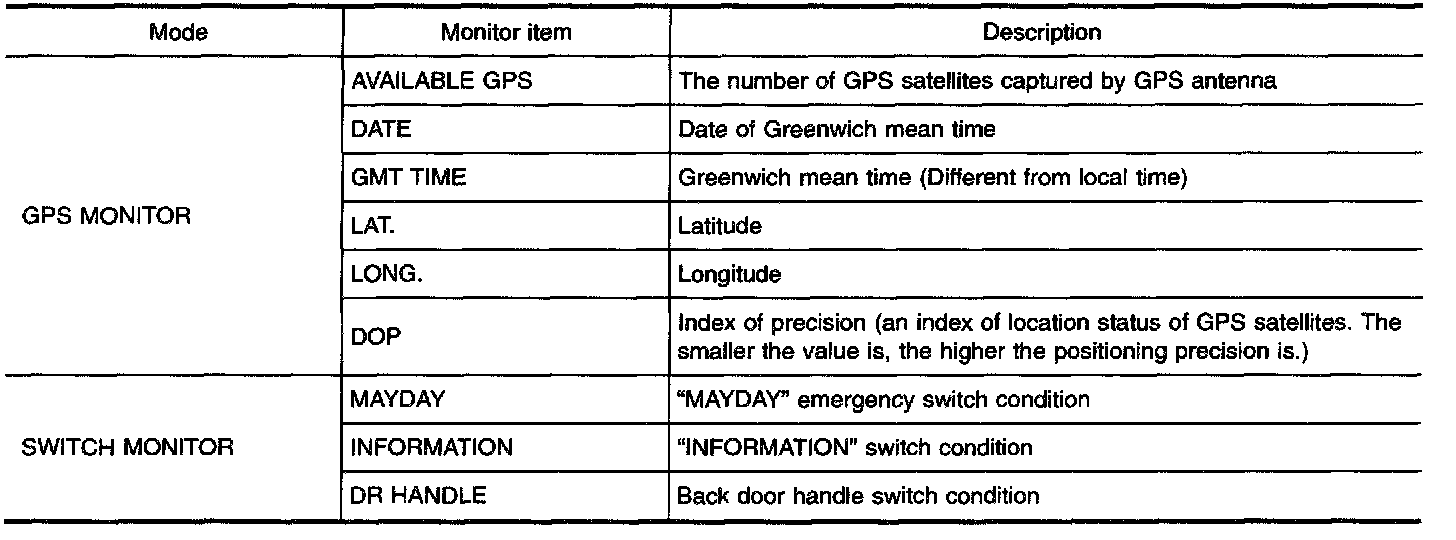

Data Monitor Item Chart:




Data Monitor Item Chart
