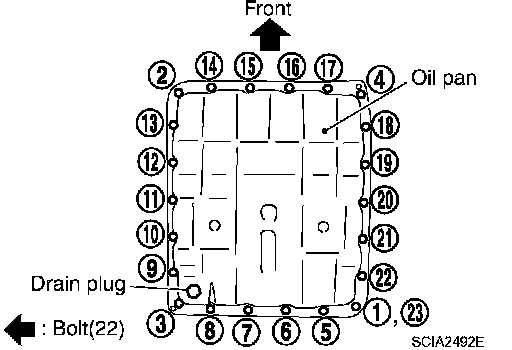

Tightening Torque & Sequence





A/T Pan Bolts 7.9 Nm (0.81 kg-m, 70 inch lbs.)

CAUTION: Do not reuse pan bolts.
