Tightening Torques & Sequences

Transmission Pan

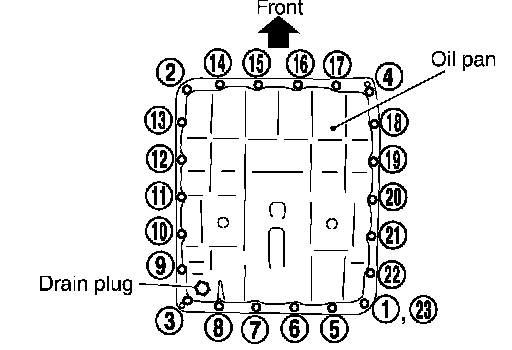

Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Refer to AT-274, "Components".

CAUTION: Do not reuse oil pan mounting bolts.
