Diagnostic Procedure

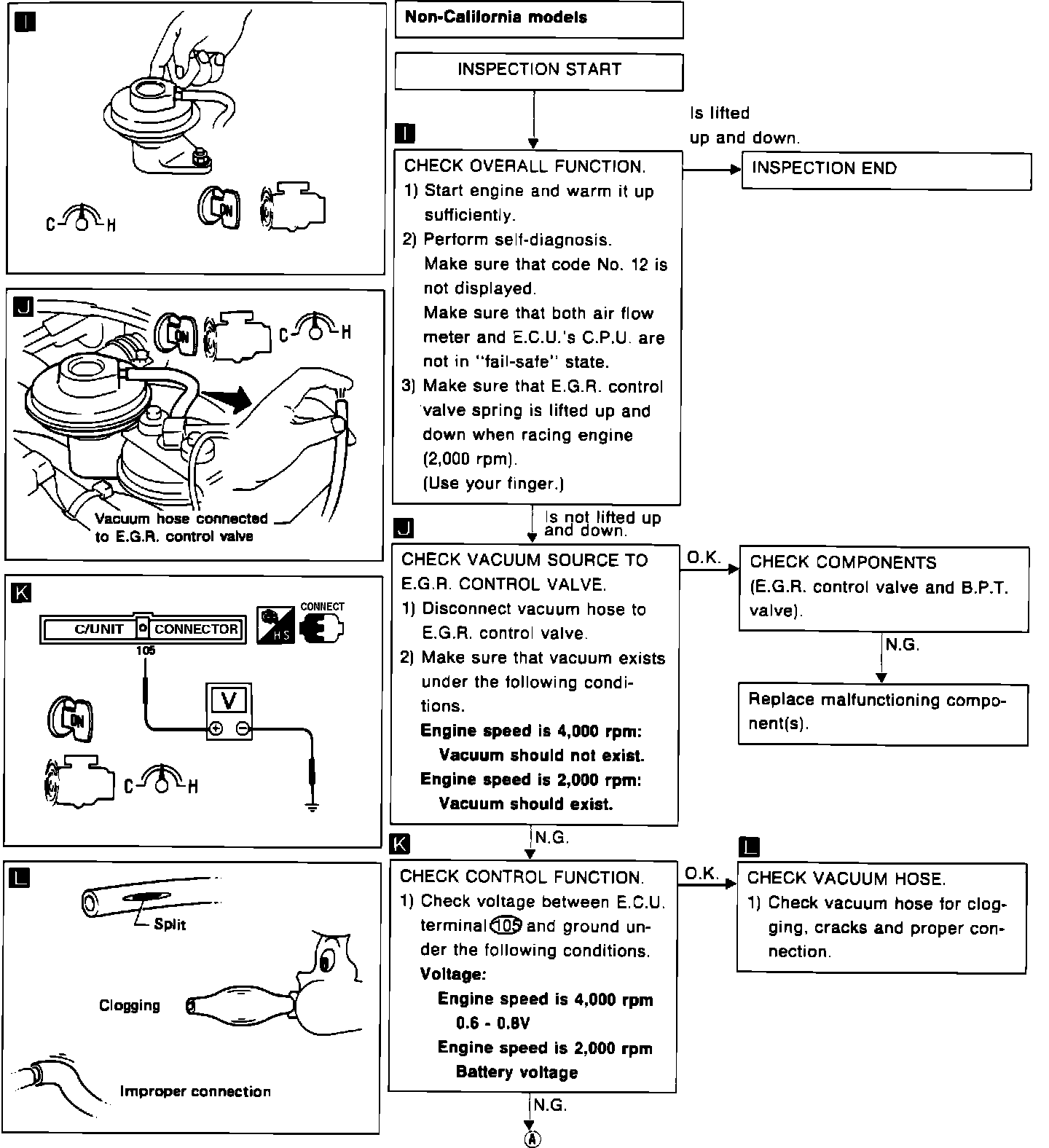

Fig. 57 E.G.R. Control E.G.R. Function (Part 1 Of 2):

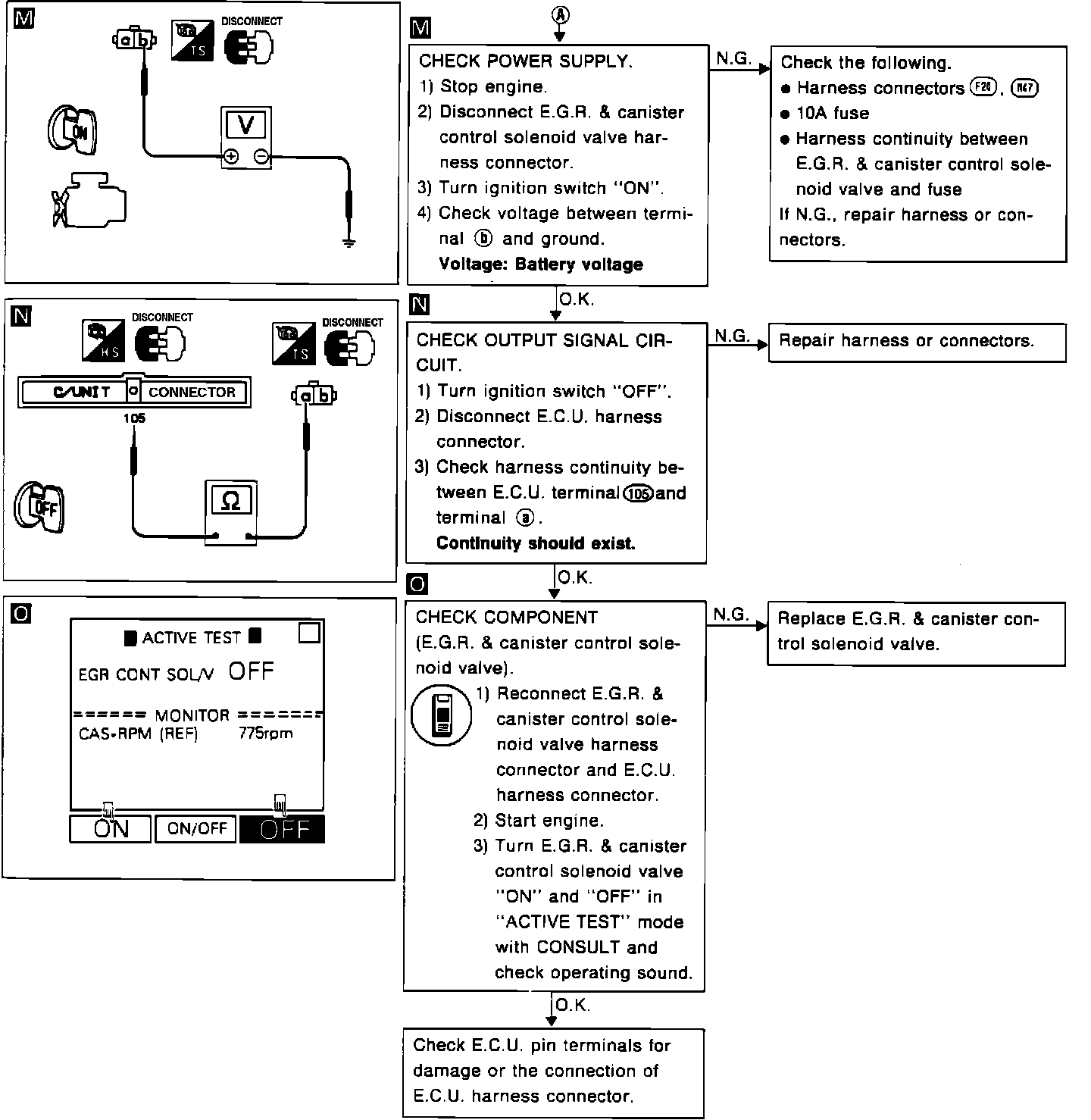

Fig. 57 E.G.R. Control E.G.R. Function (Part 2 Of 2):
