Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
1993
>>
Q45 V8-4494cc 4.5L DOHC (VH45)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Throttle Position Sensor Circuit
Throttle Position Sensor Circuit

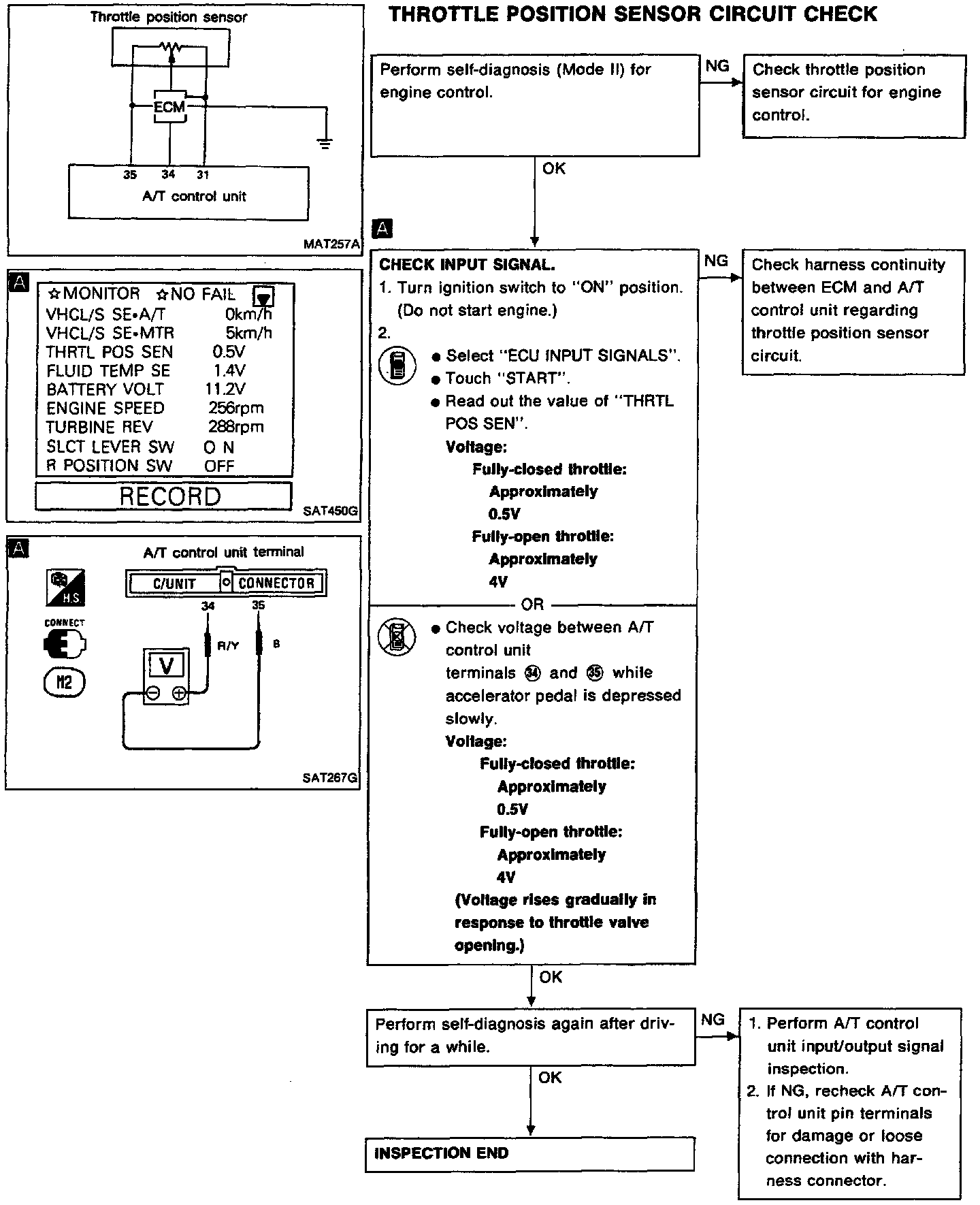

TPS Circuit Check:
