Power Steering Oil Pressure Switch Circuit

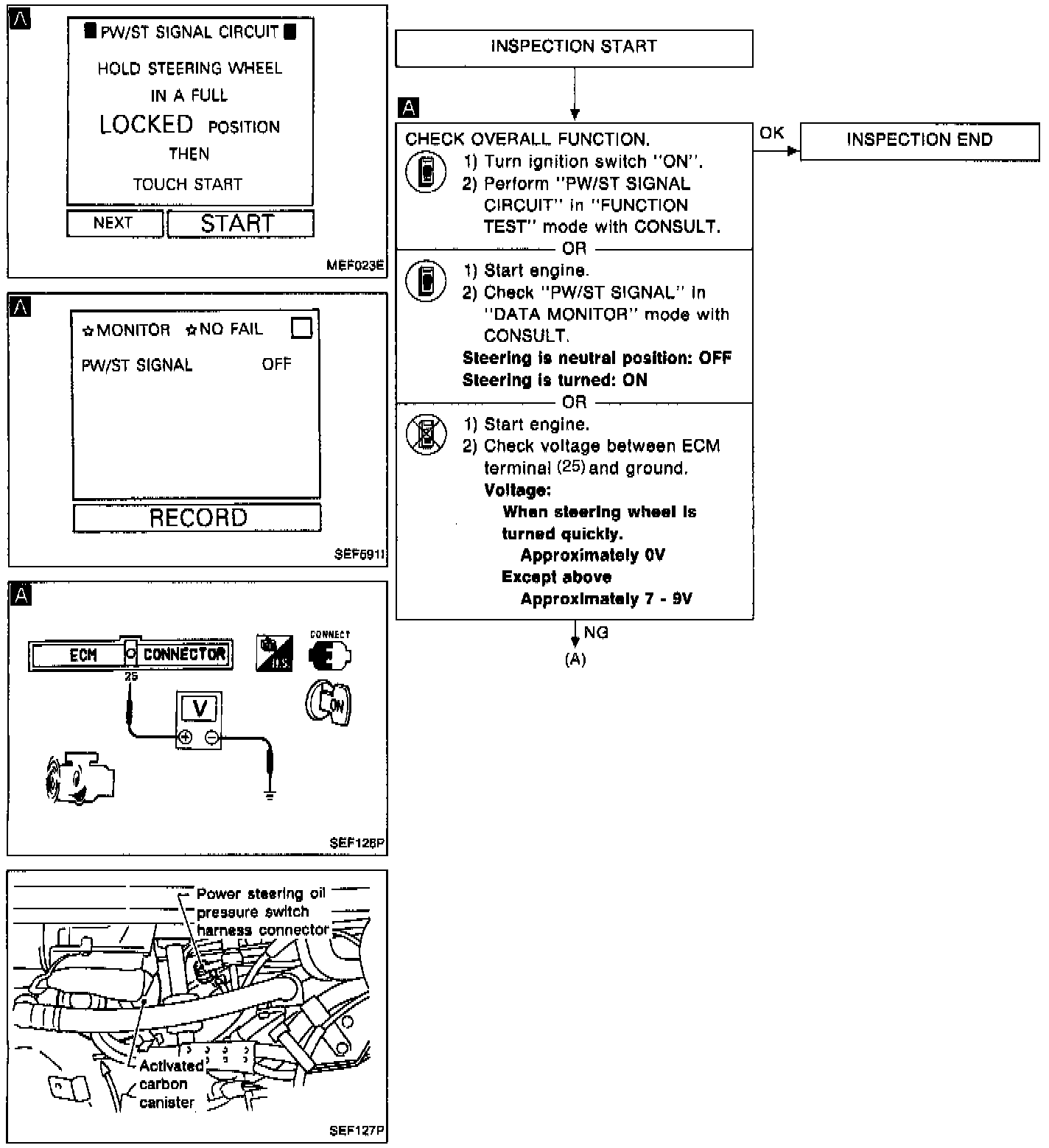

Power Steering Oil Pressure Sw. Non-DTC Chart:

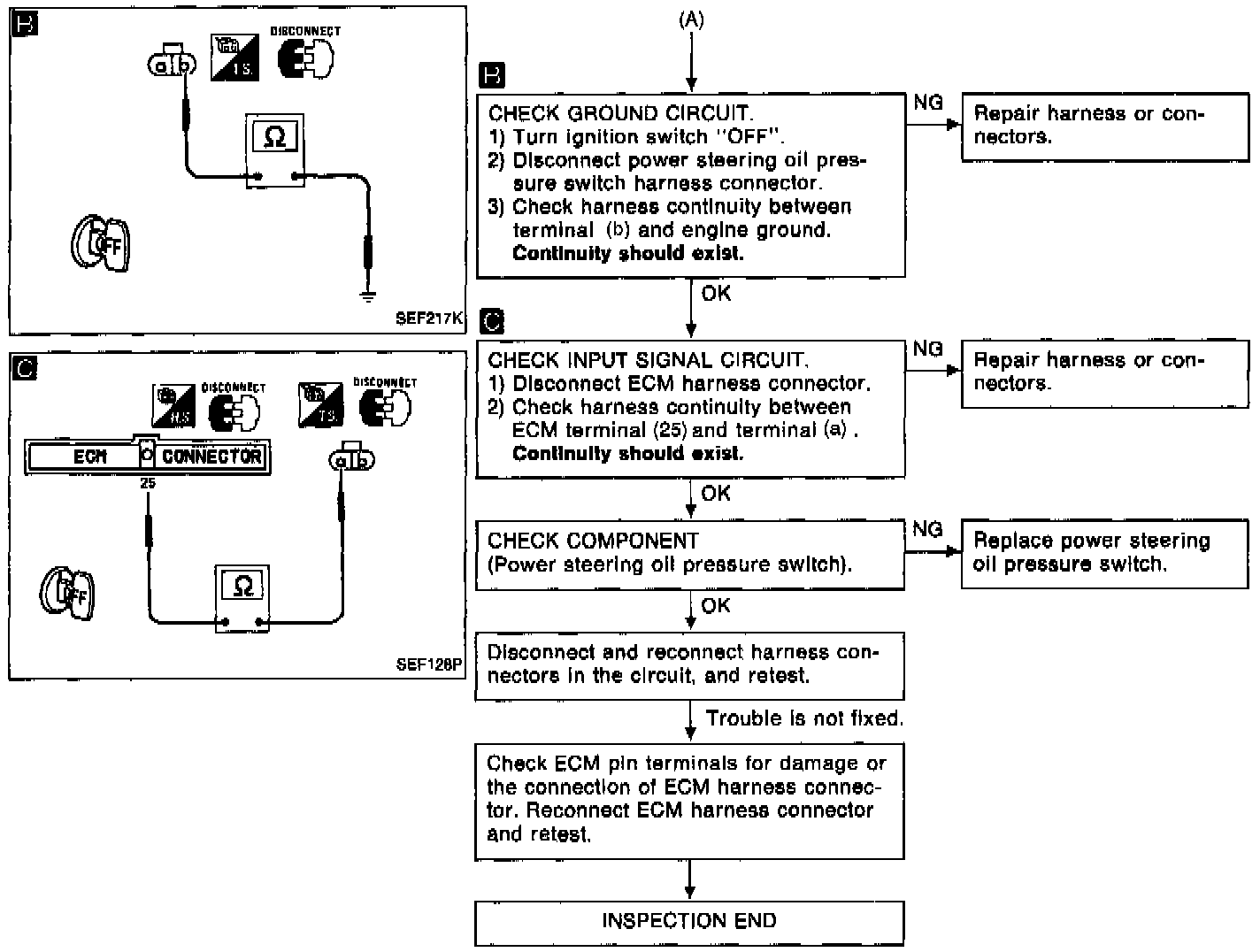

Power Steering Oil Pressure Sw. Non-DTC Chart:




DIAGNOSTIC CHART

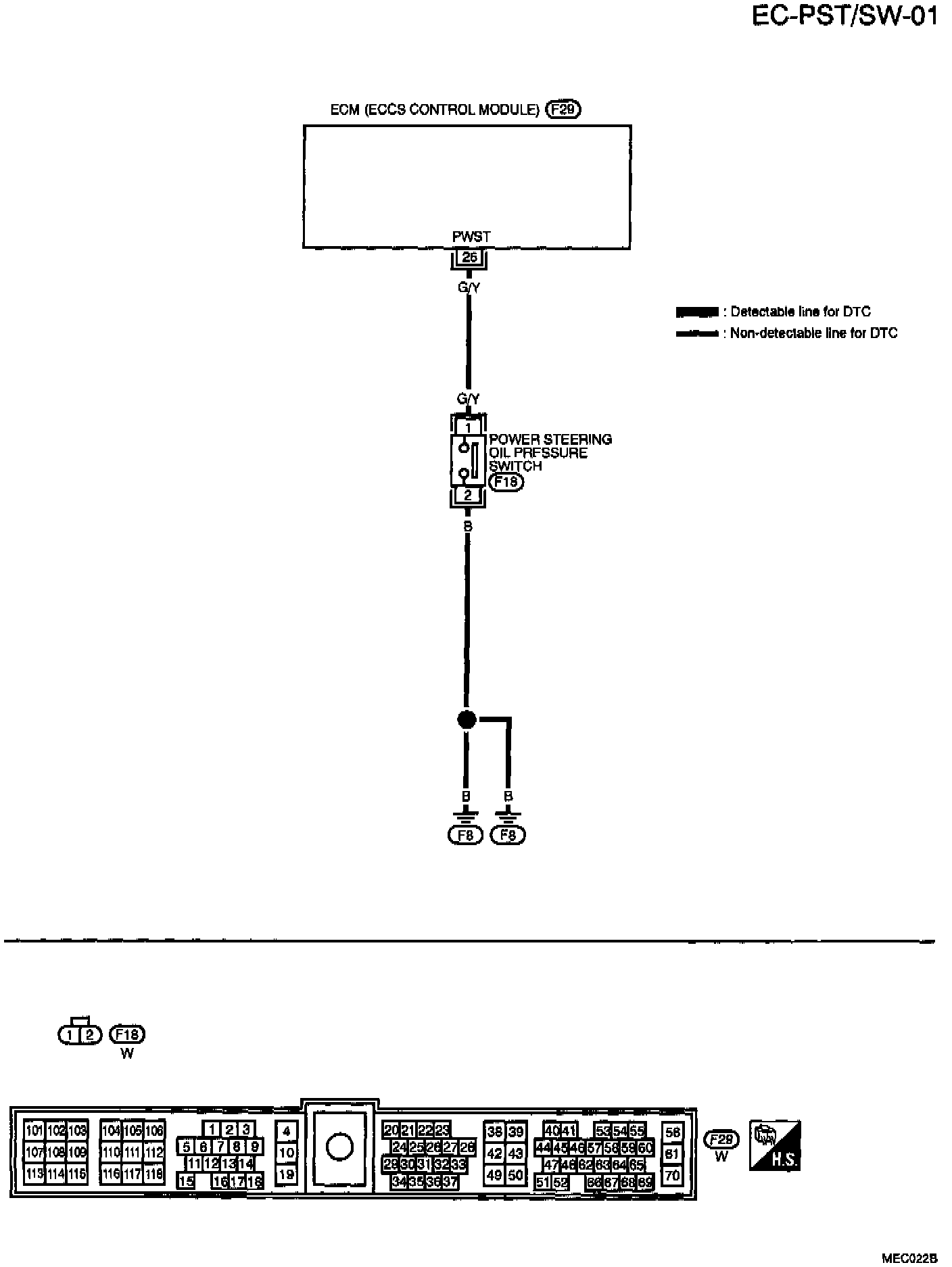

Power Steering Oil Pressure Sw. Diagram:




CIRCUIT DIAGRAM
