Home >> Infiniti >> 1995 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Diagrams >> Electrical Diagrams >> USA

USA

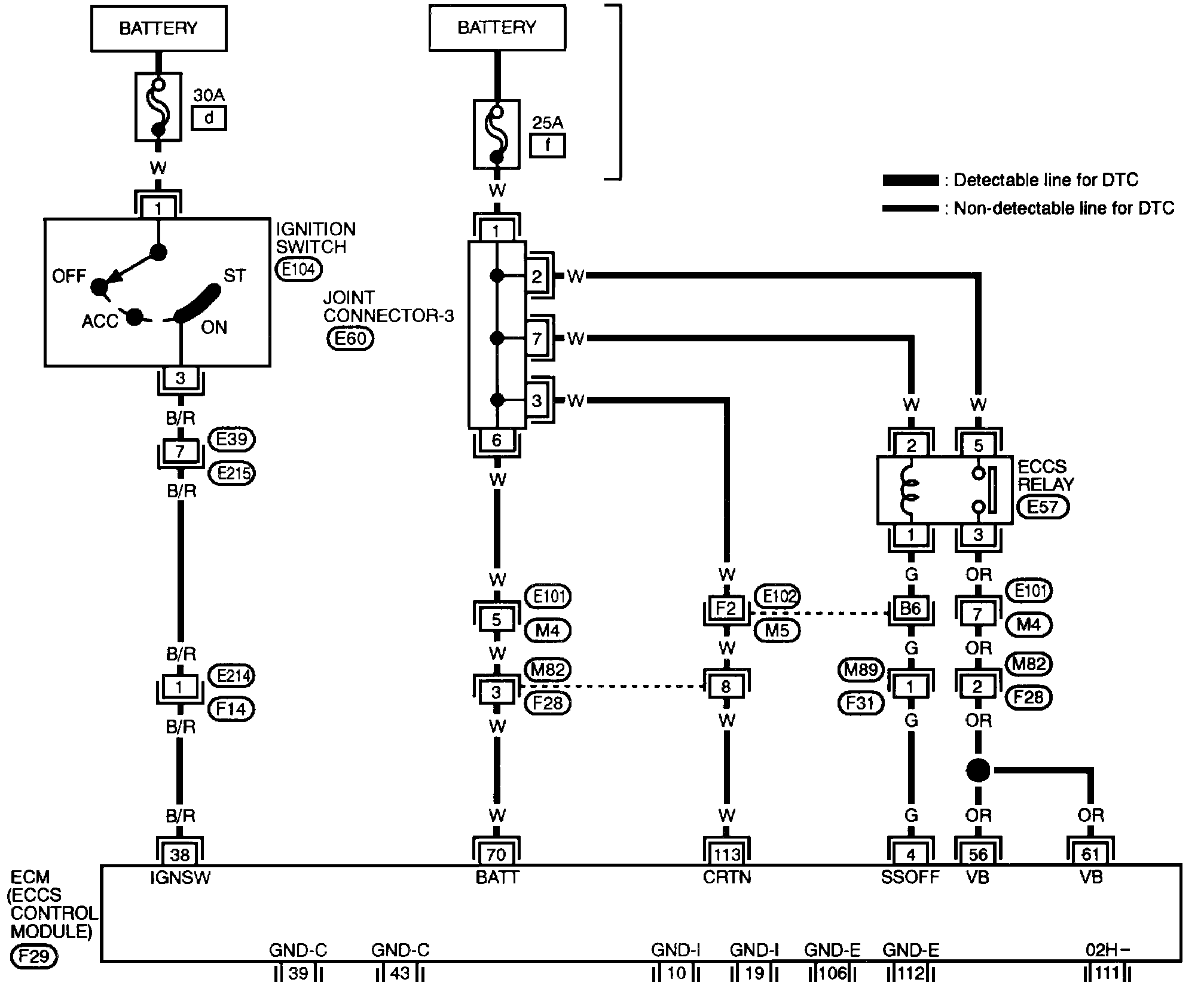

O��Main Power Supply And Ground Circuit:
