Power Supply Testing
Non-DTC - Main Power Supply & Ground Circuit:
Non-DTC - Main Power Supply & Ground Circuit:

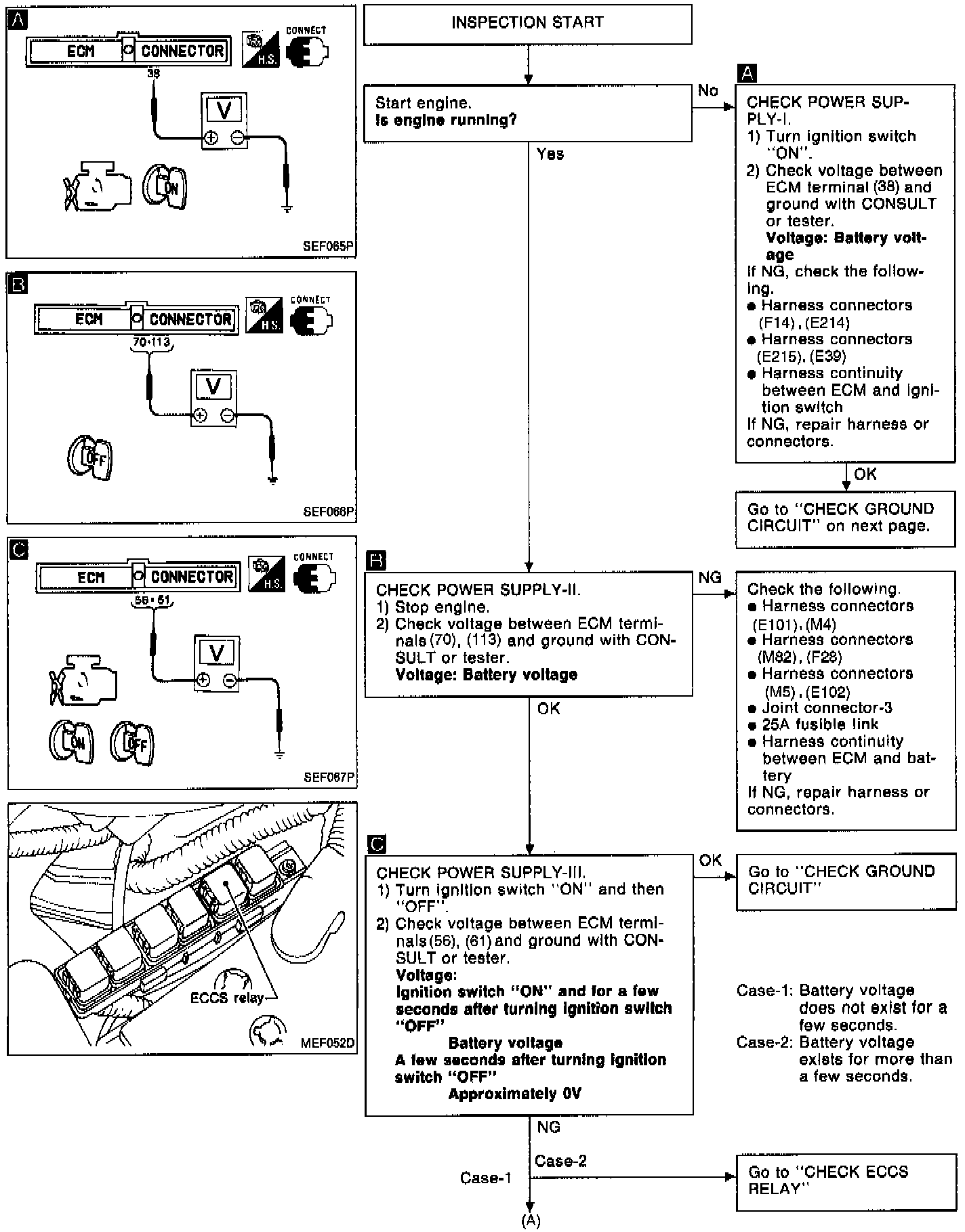

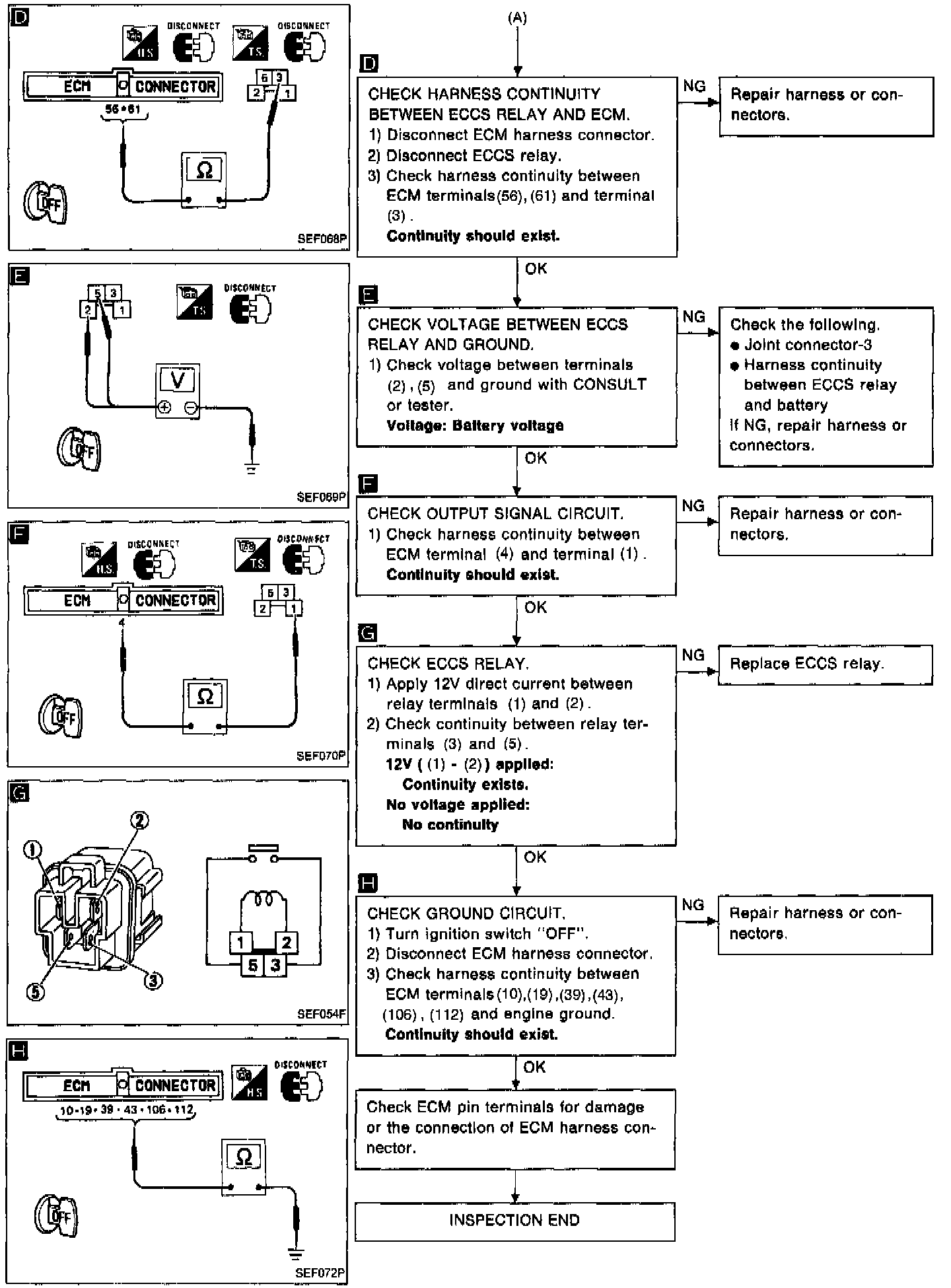

DIAGNOSTIC CHART
Main Power And Ground Circuit:

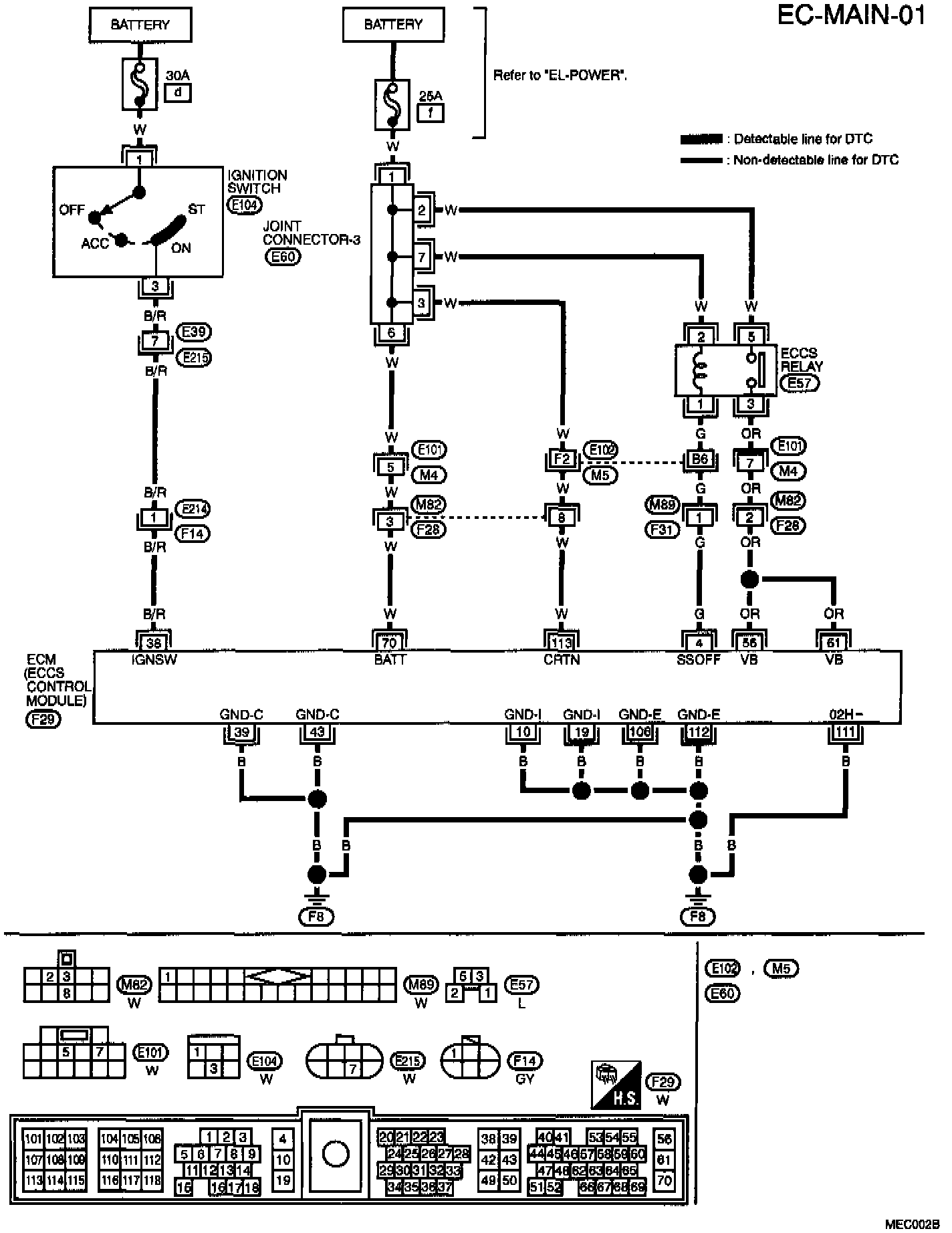

CIRCUIT DIAGRAM
