Home >> Infiniti >> 1995 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor >> Diagrams >> Electrical Diagrams

Electrical Diagrams

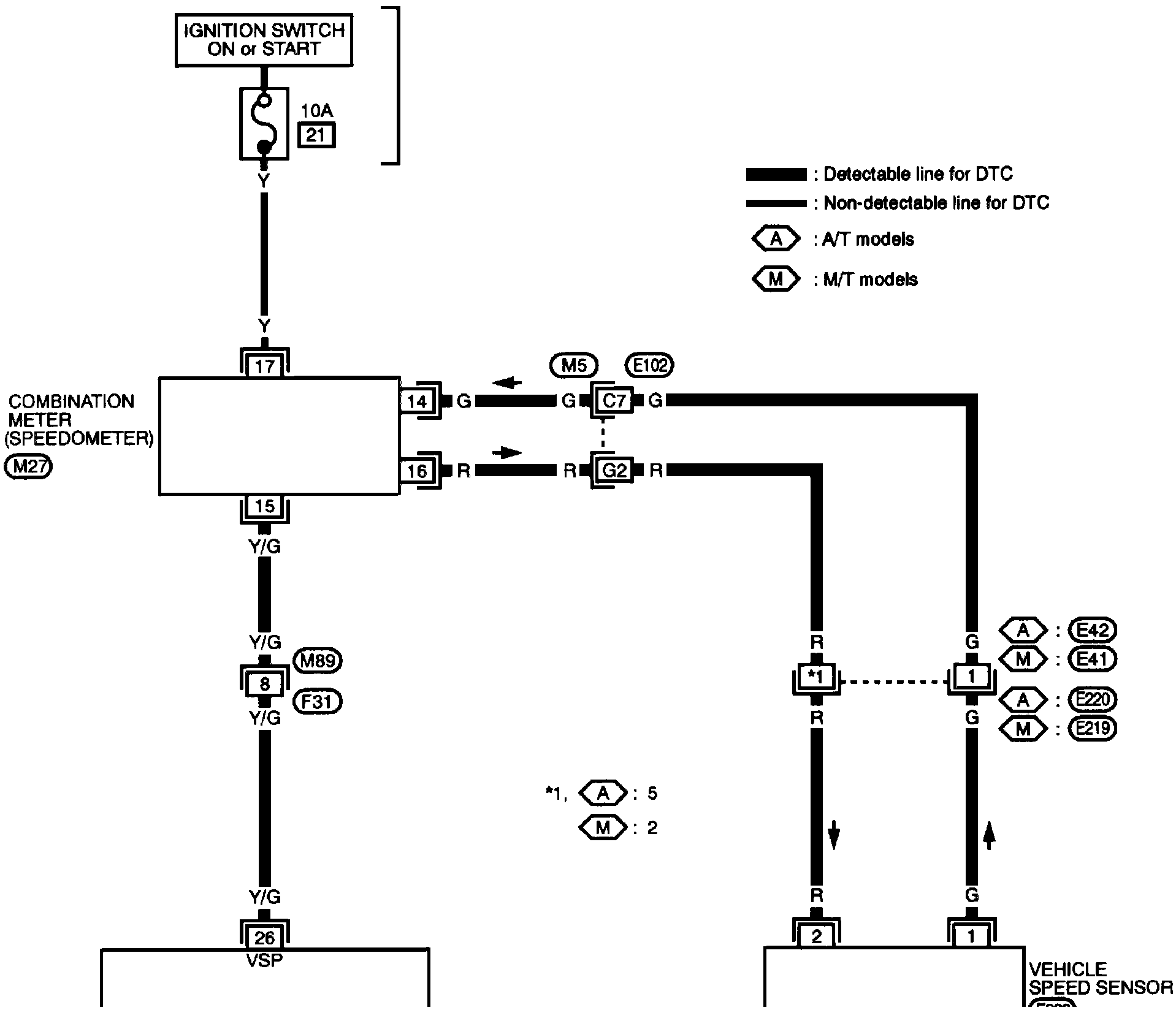

o��Vehicle Speed Sensor (VSS) (DTC: P0500):
