Heating and Air Conditioning: Locations

AIR CONDITIONING SYSTEM - Component Layout:

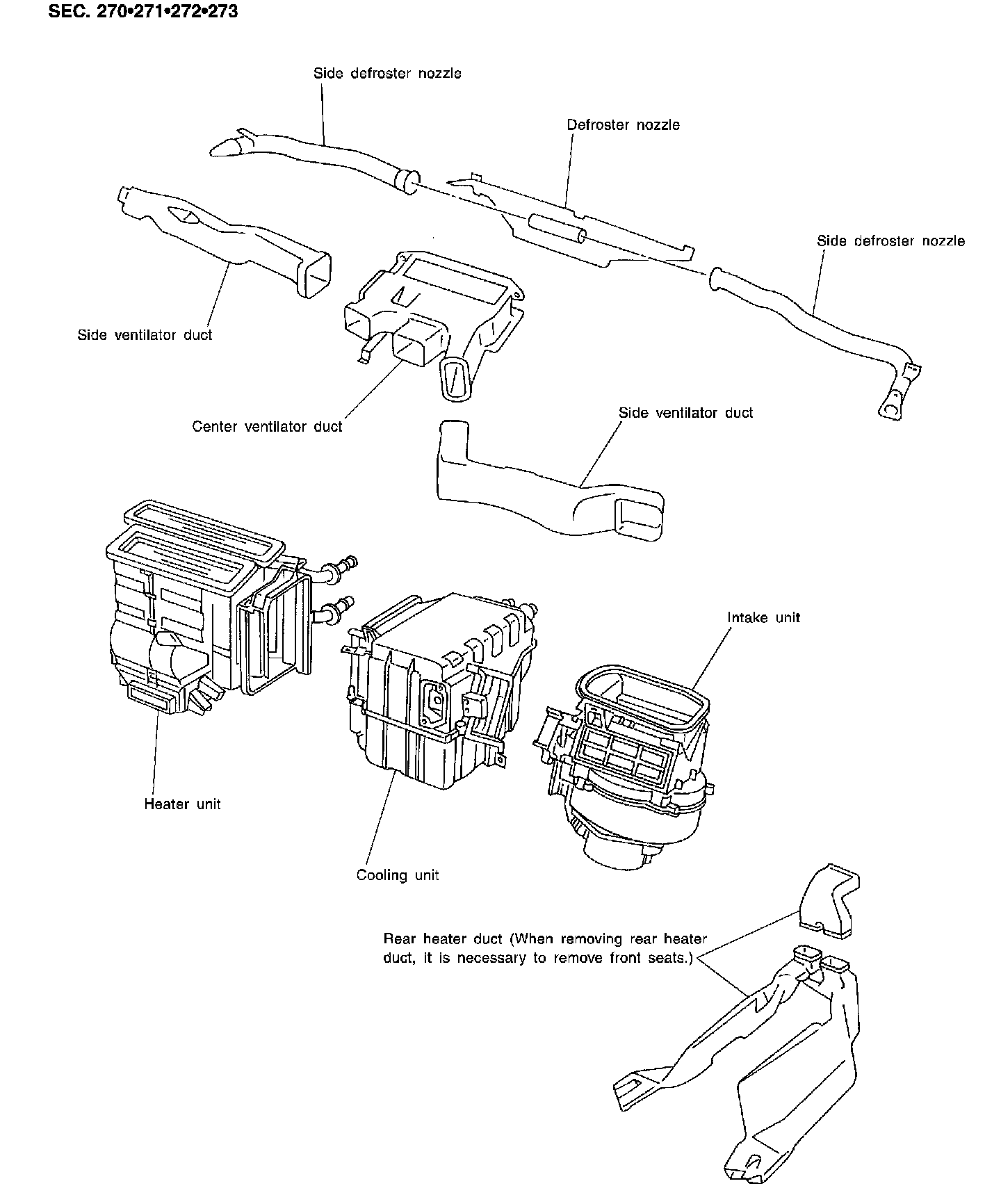

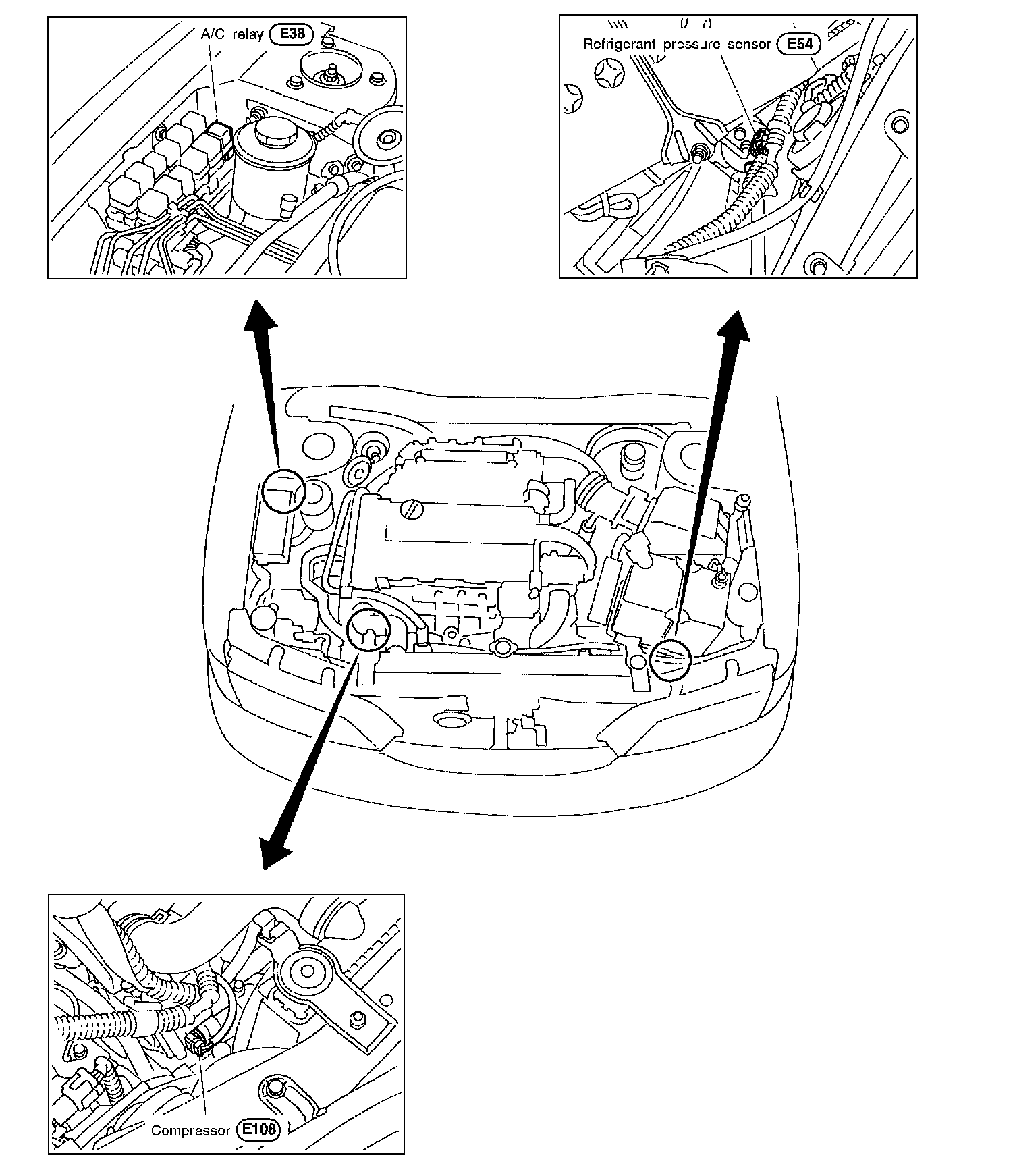

With Automatic A/C - Engine Compartment:

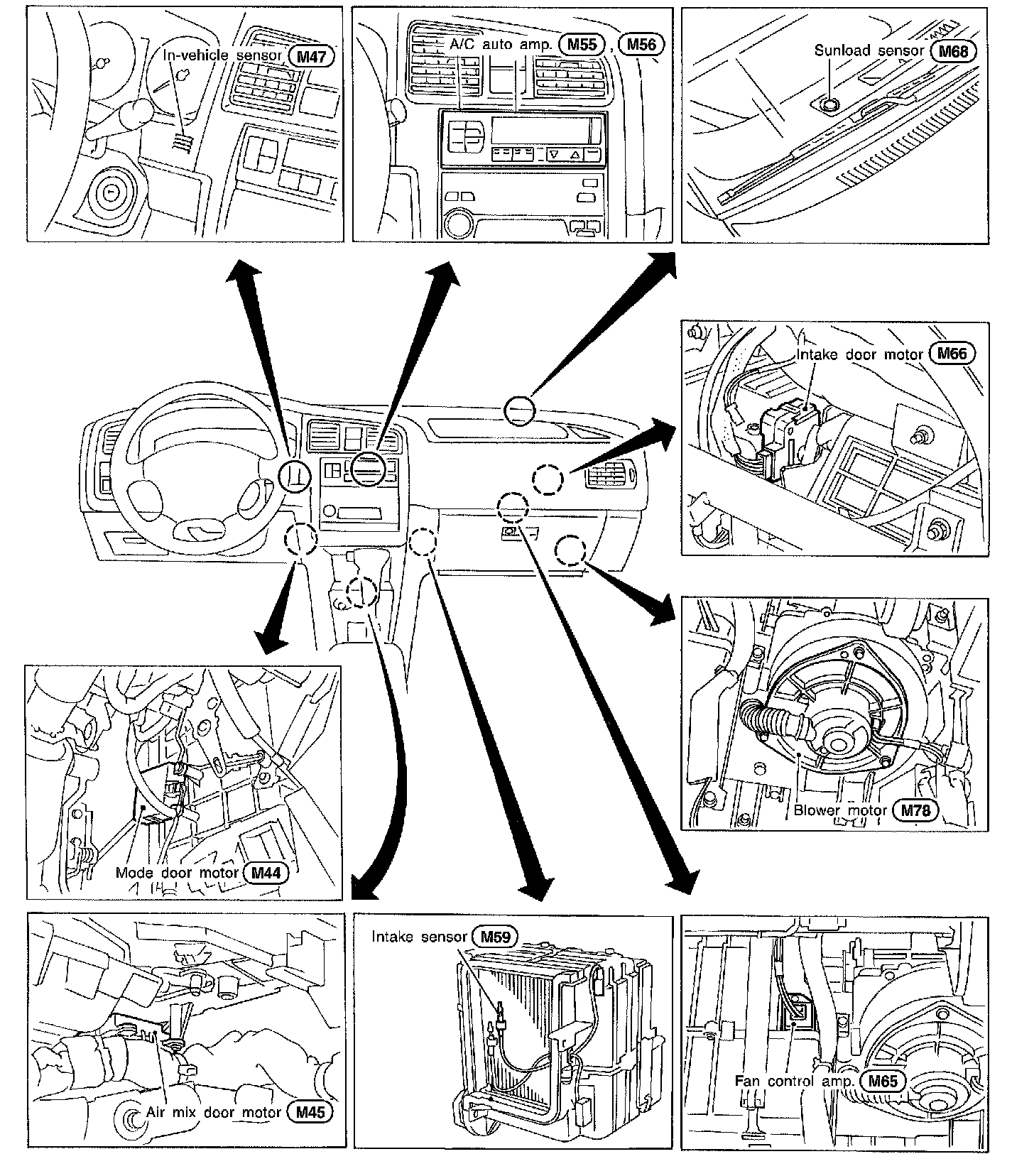

With Automatic A/C - Passenger Compartment:

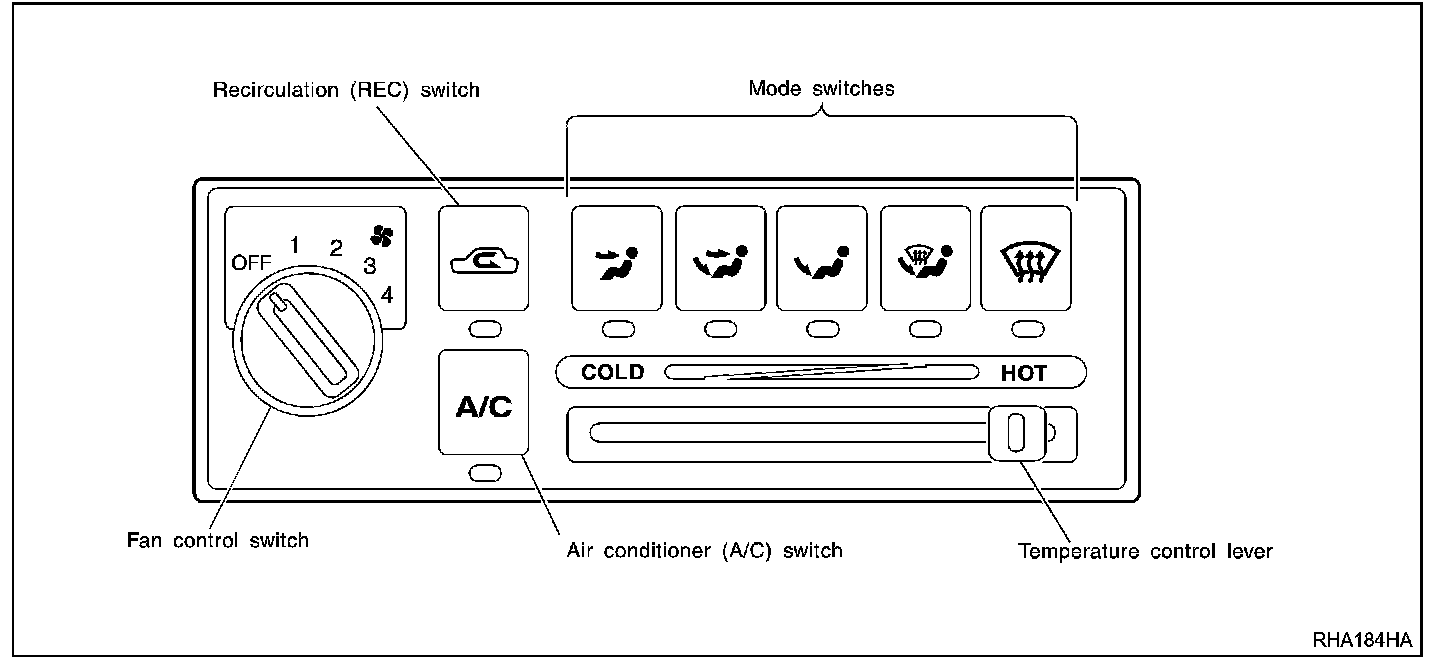

MANUAL AIR CONDITIONER - Control Operation:

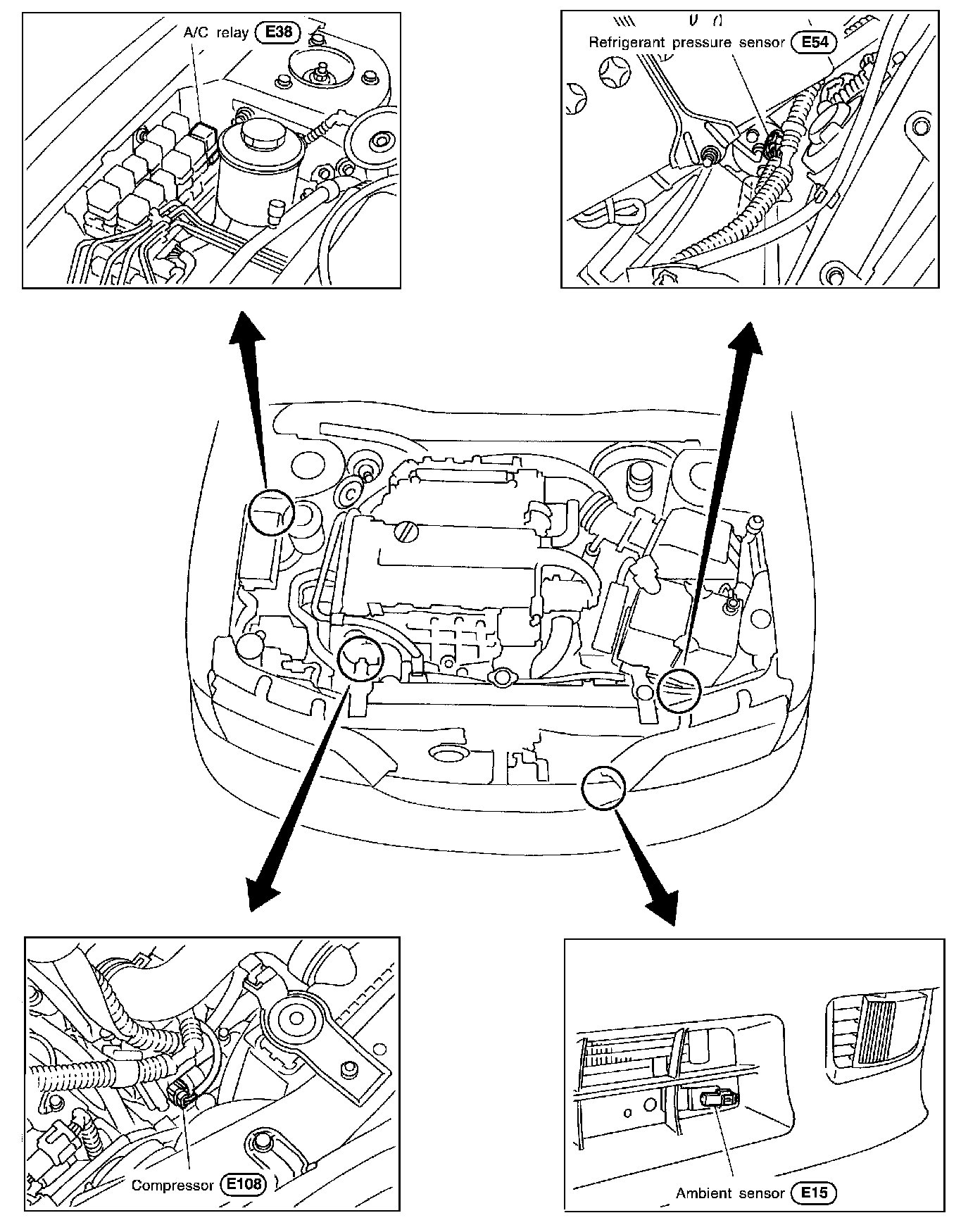

With Manual A/C - Engine Compartment:

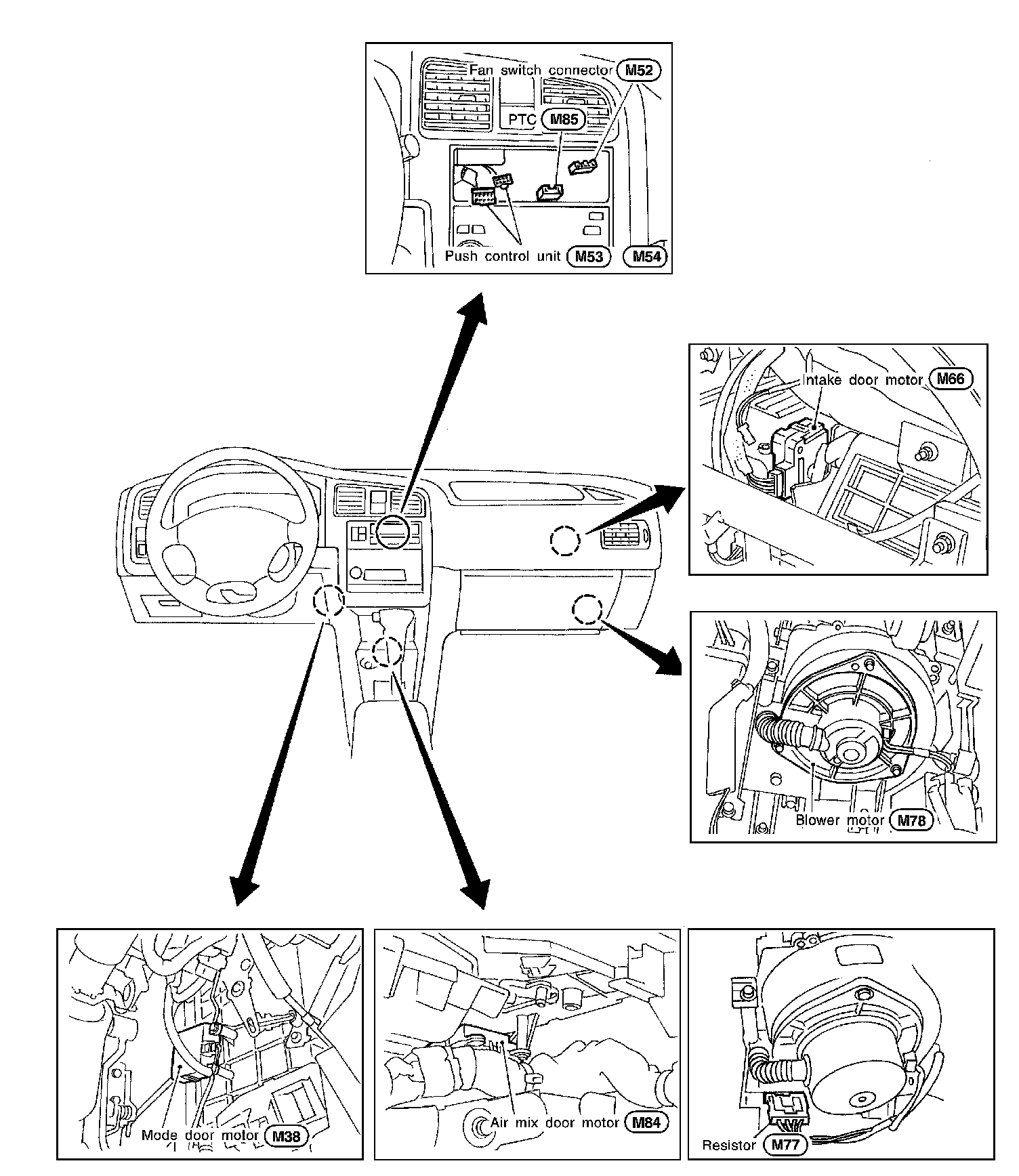

With Manual A/C - Passenger Compartment:
