Clutch, M/T

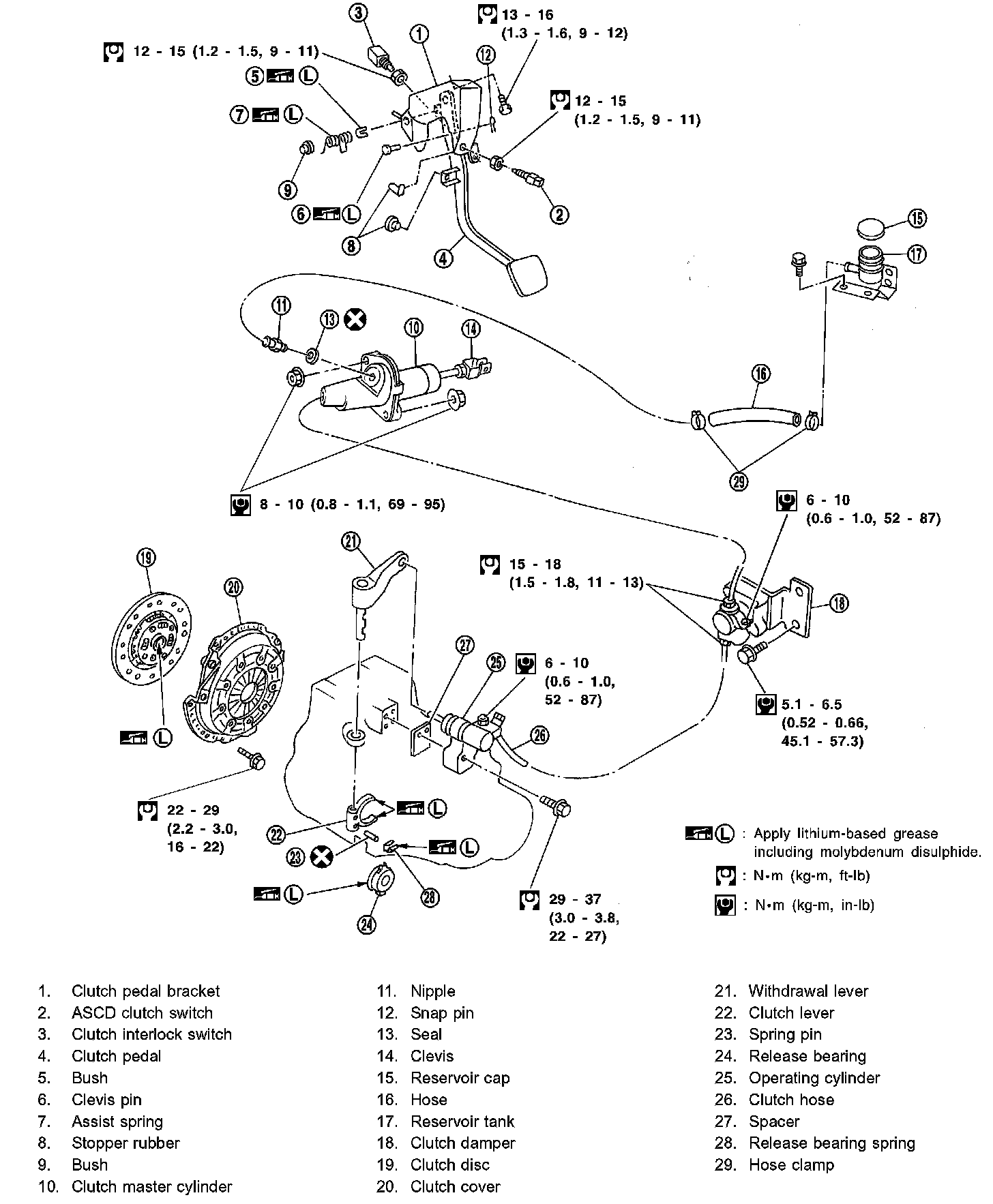

Components

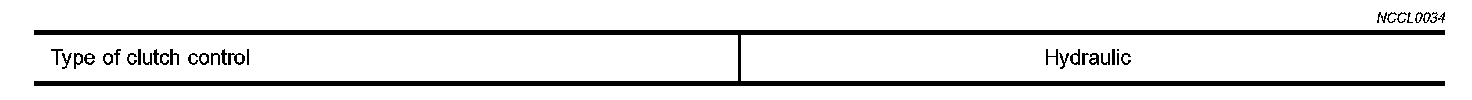

Clutch Control System

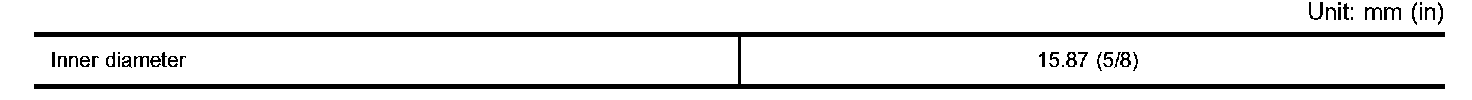

Clutch Master Cylinder

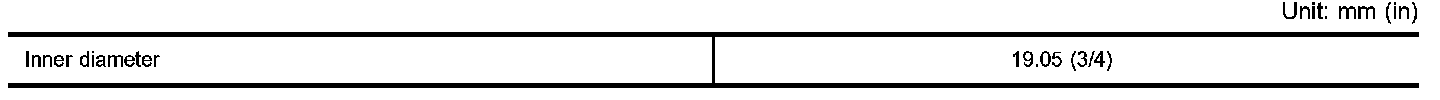

Clutch Operating Cylinder

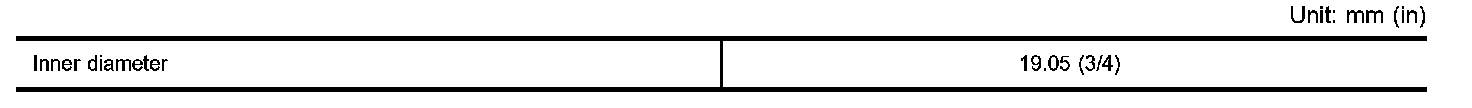

Clutch Damper

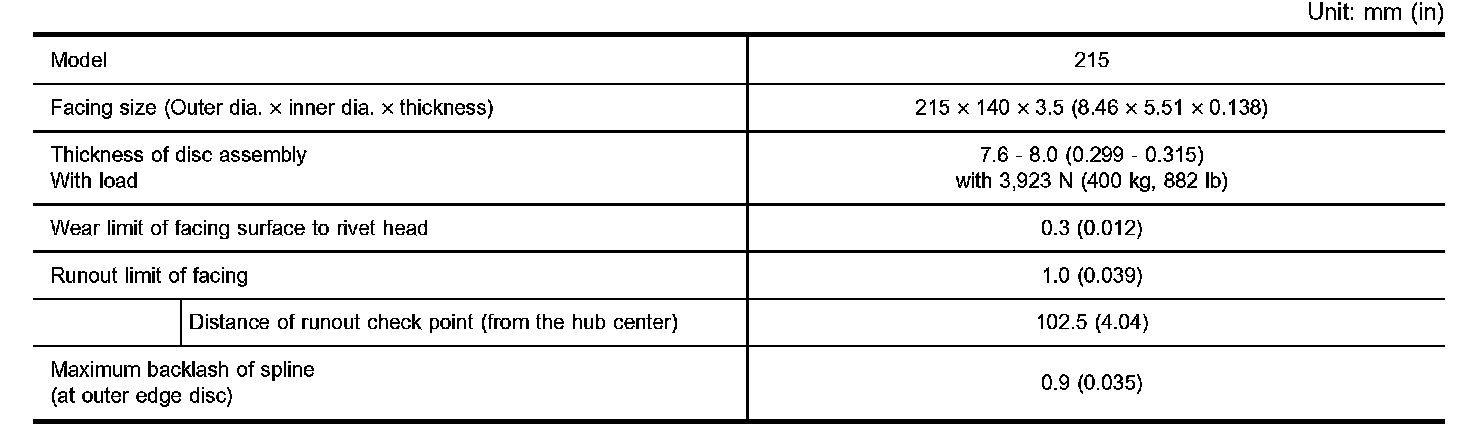

Clutch Disc

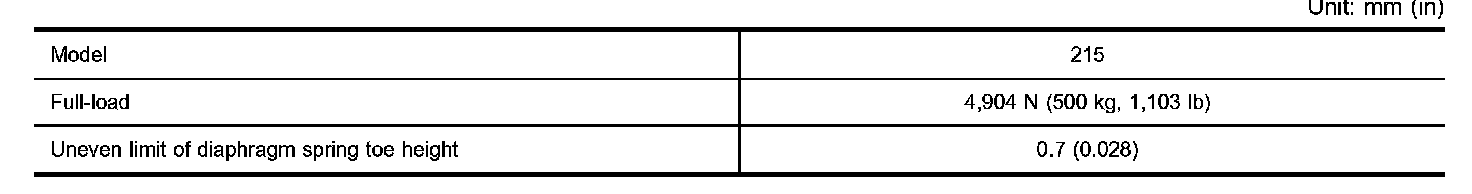

Clutch Cover

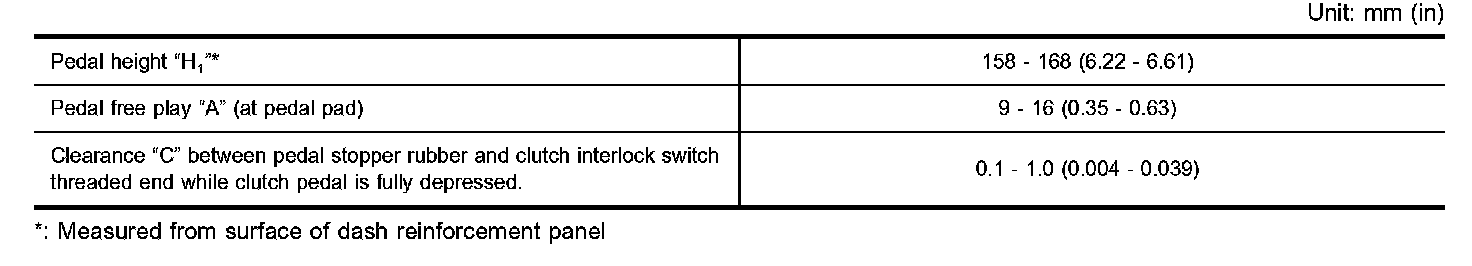

Clutch Pedal
