Brake Light Switch
Brake Light Switch

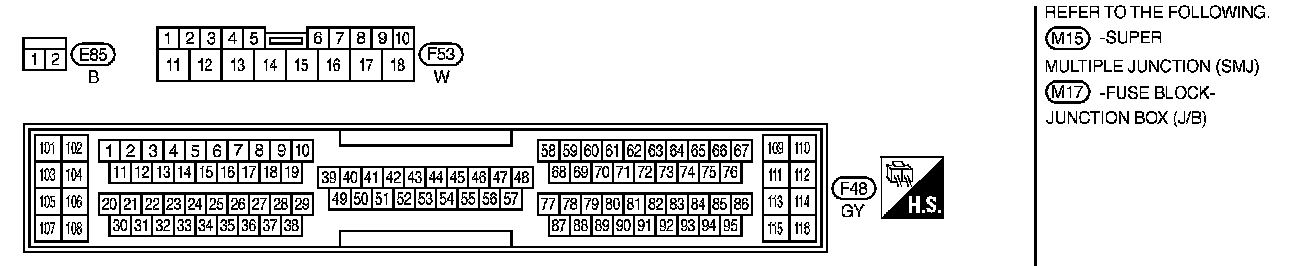

EC-BRK/SW-01 Connector Views:

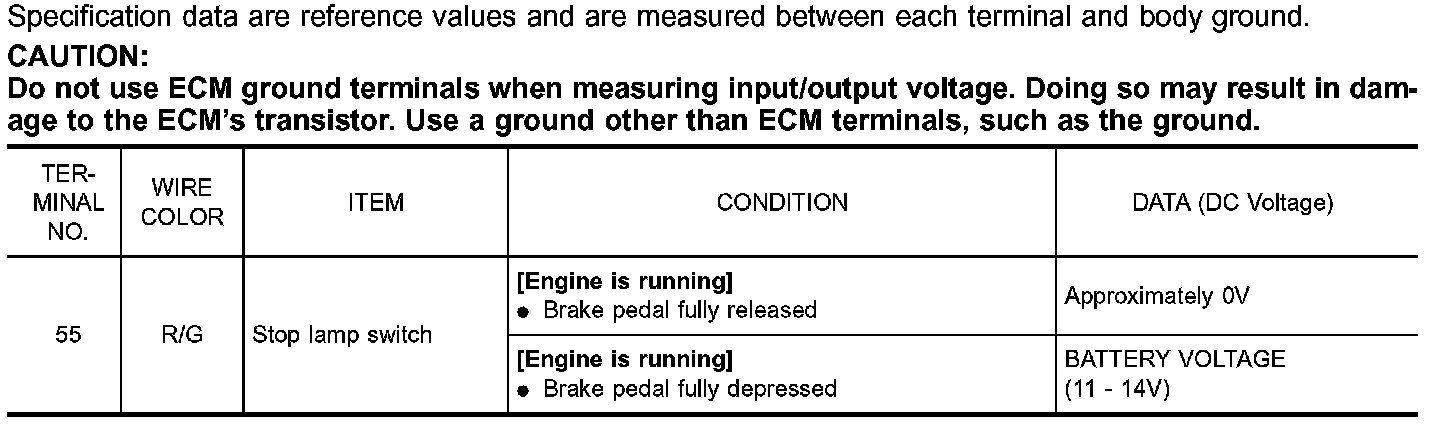

ECM Terminals And Reference Values:
