Power Locks

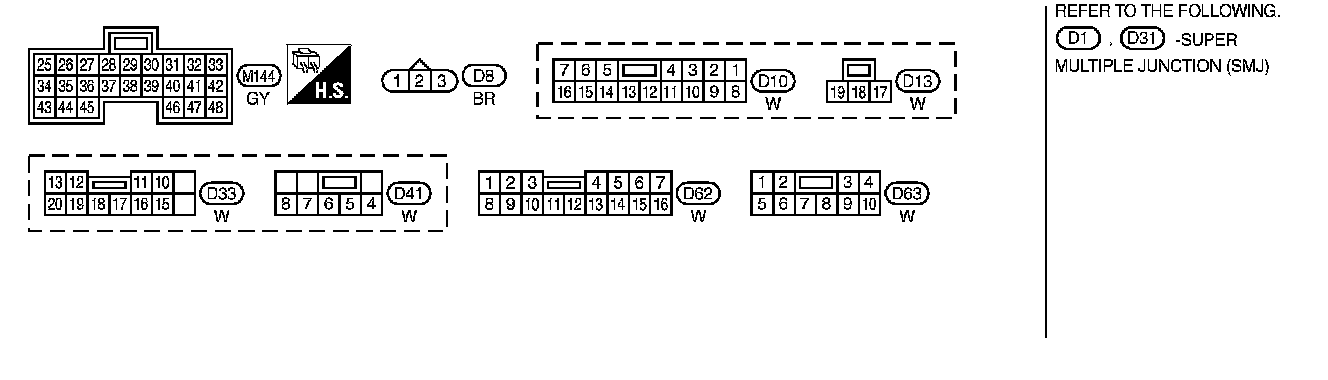

EL-D/LOCK-01 Connector Views:

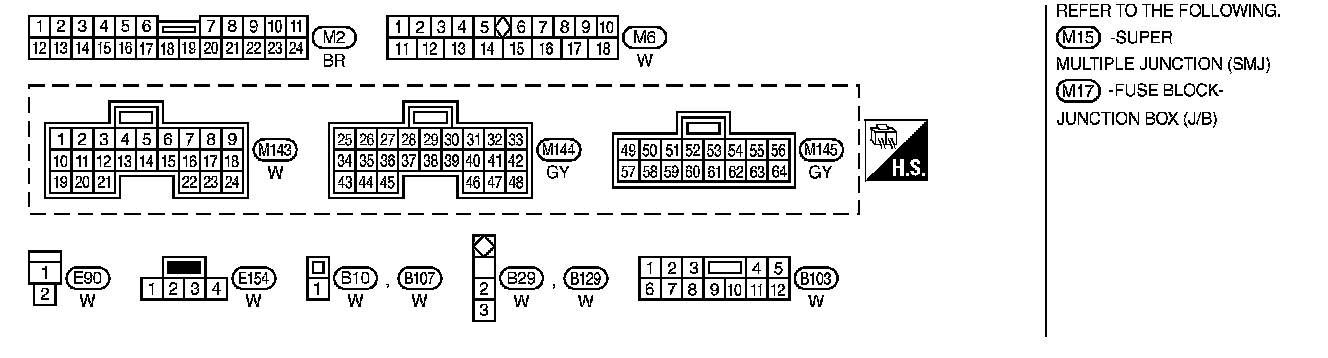

EL-D/LOCK-02 Connectors View:

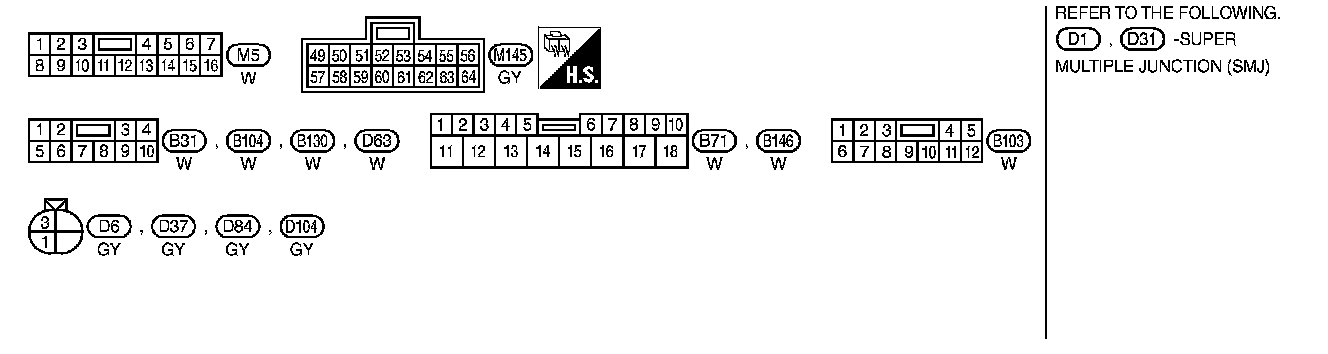

EL-D/LOCK-03 Connectors View:

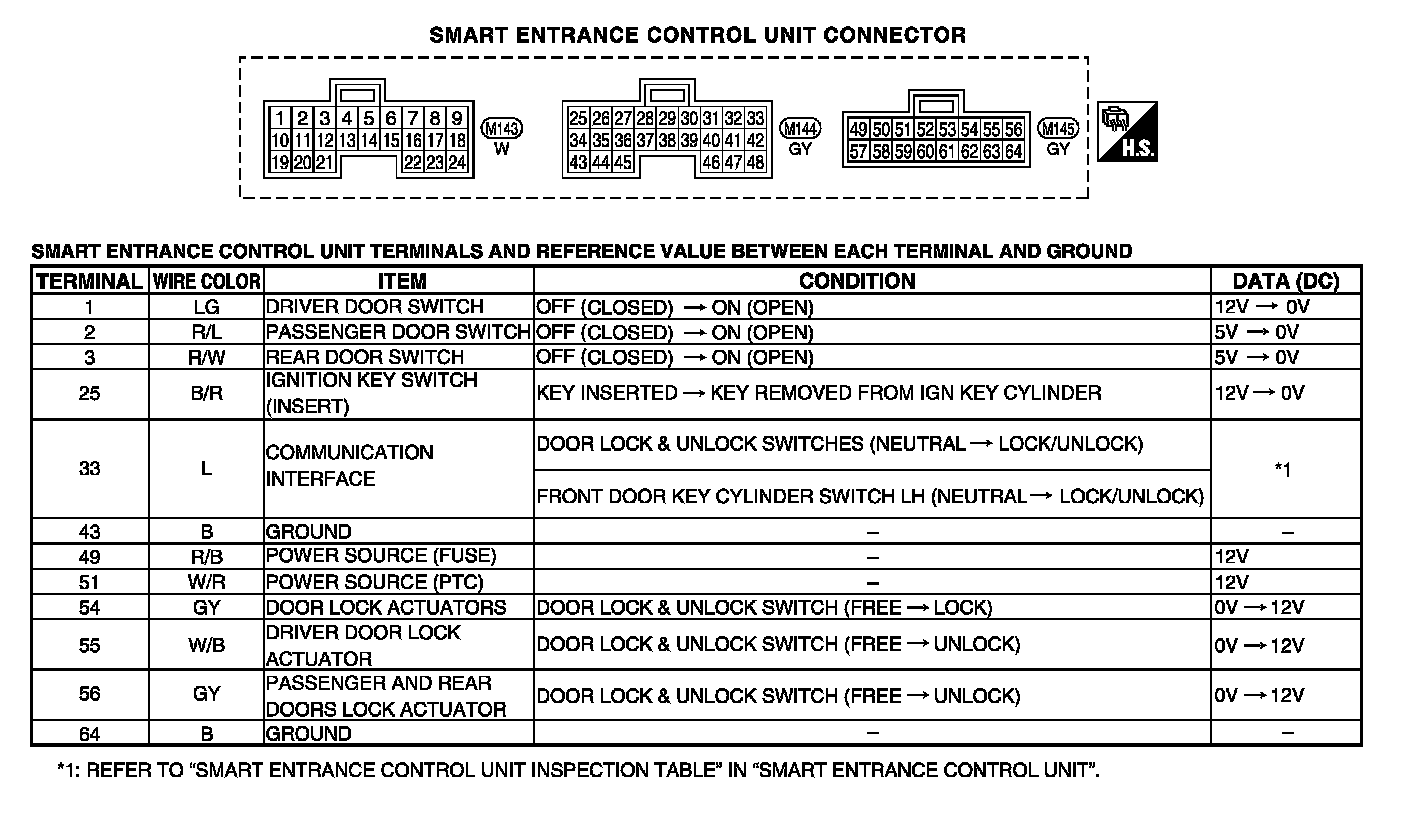

Smart Entrance Control Unit Connector:
