Pinout Values and Diagnostic Parameters

PREPARATION

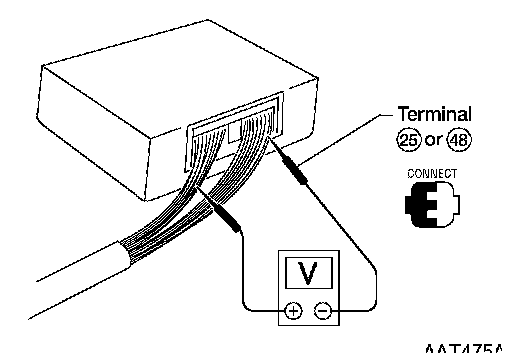

- Measure voltage between each terminal and terminal 25 or 48 by following "TCM INSPECTION TABLE".

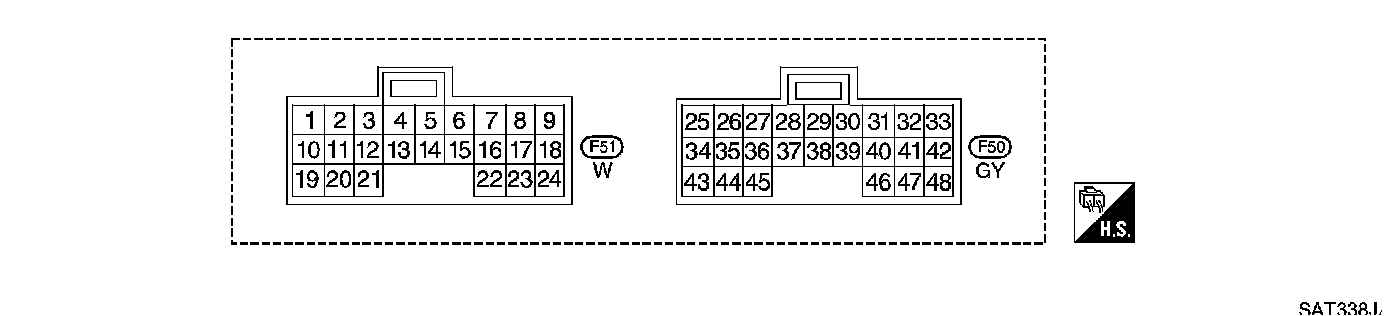

TCM HARNESS CONNECTOR TERMINAL LAYOUT

TCM INSPECTION TABLE
(Data are reference values.)

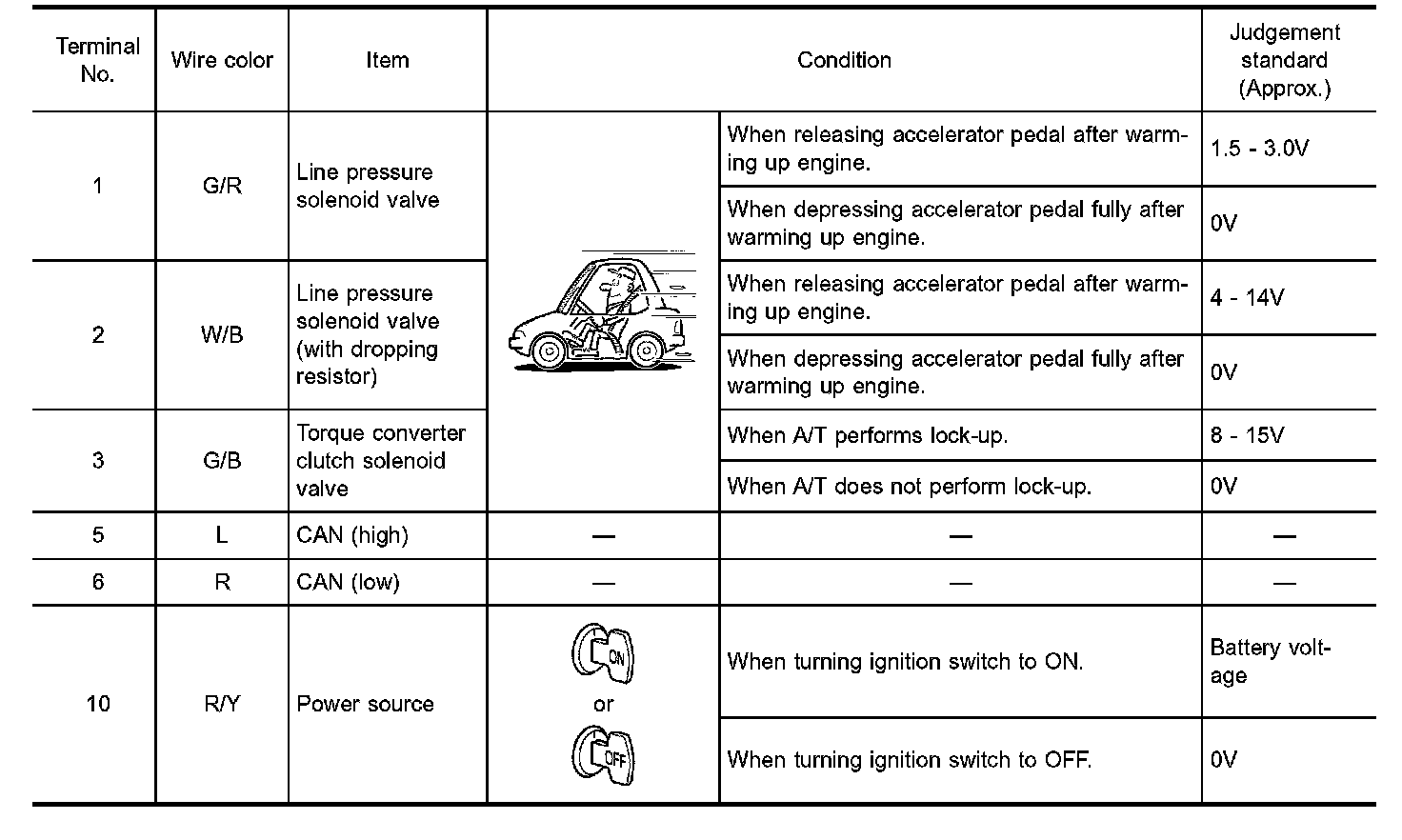

1 of 3

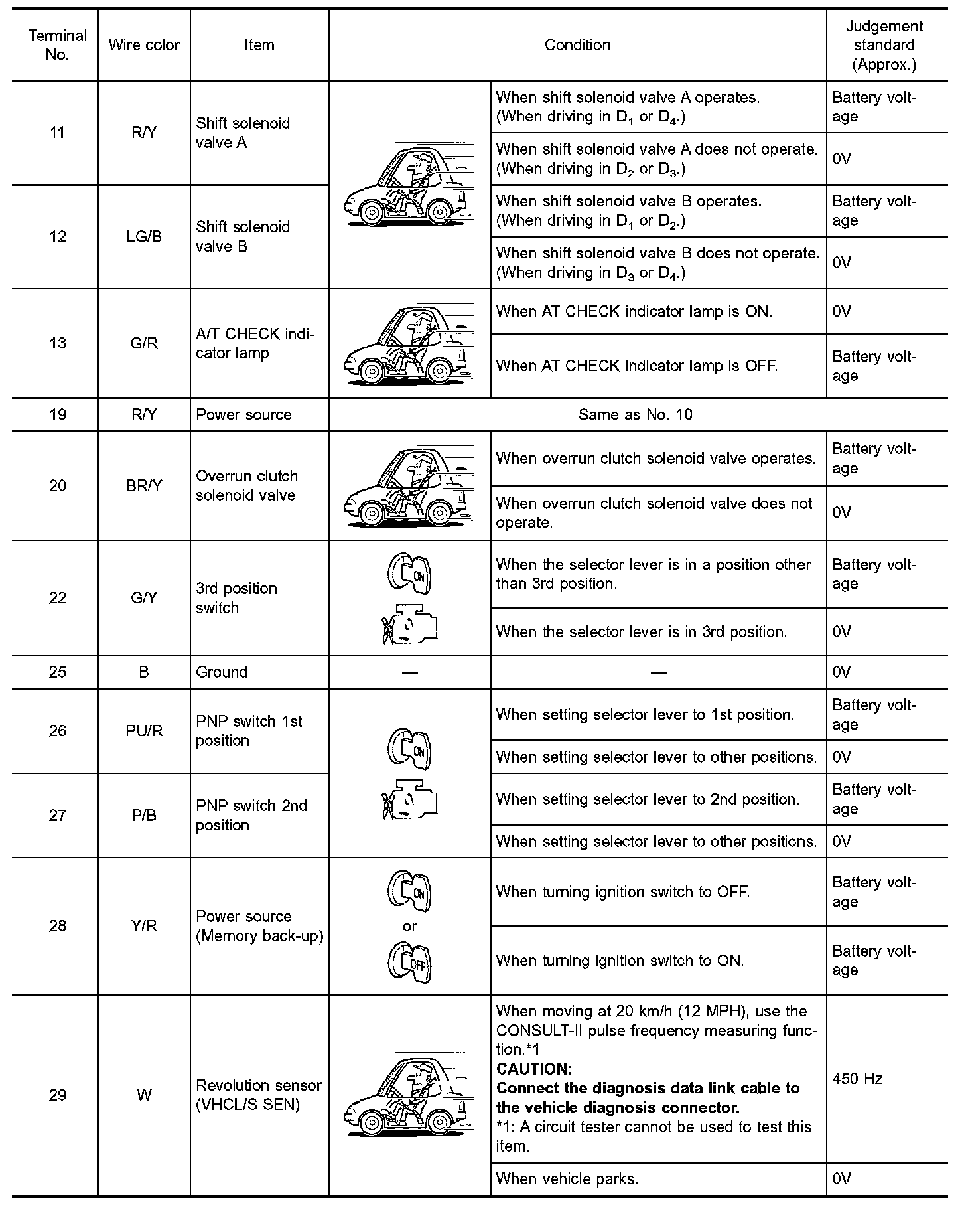

2 of 3

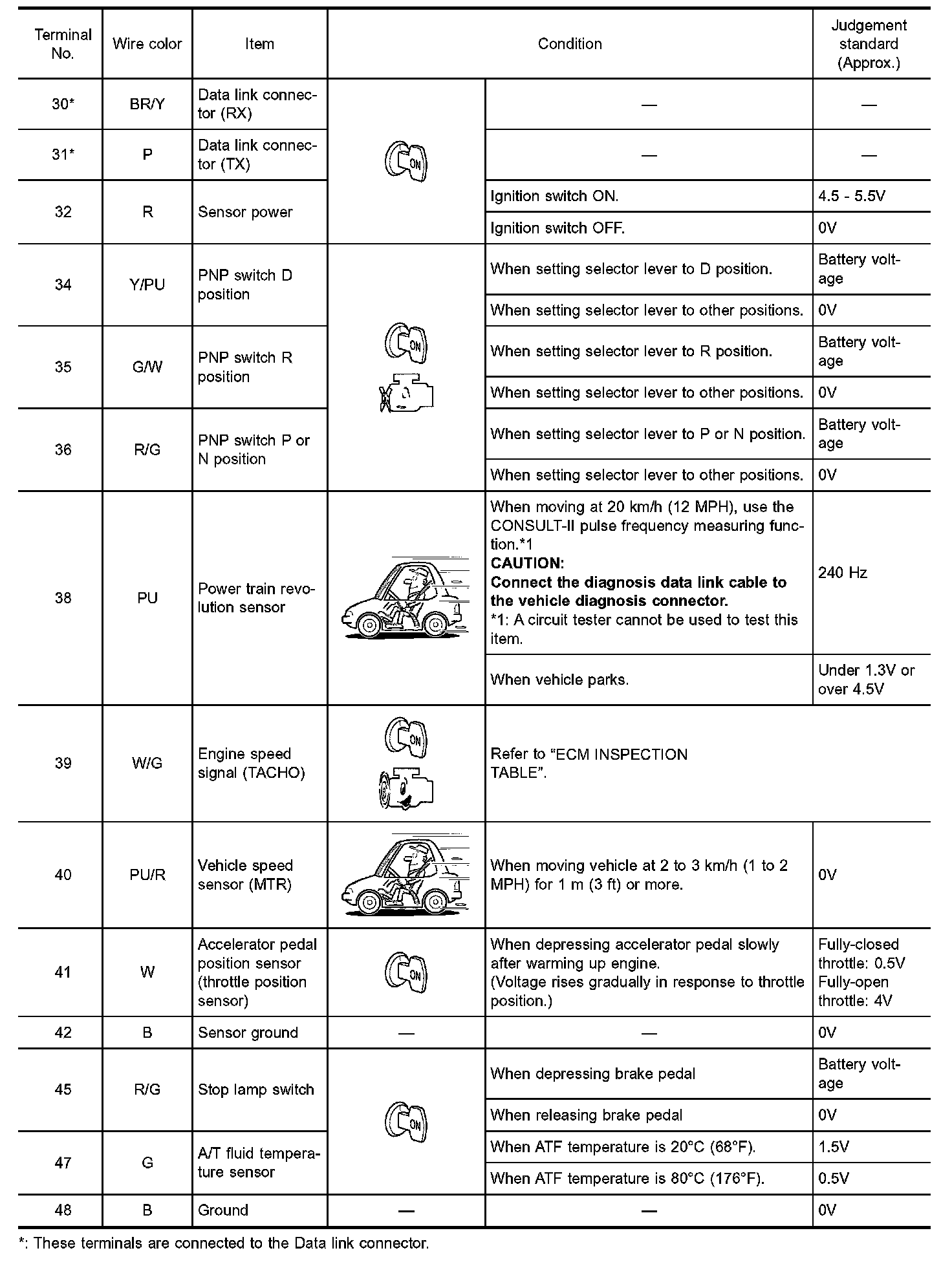

3 of 3
