Procedure 15

15. Engine Speed Does Not Return To Idle (Light Braking D4 - D3)

SYMPTOM:
- Engine speed does not smoothly return to idle when A/T shifts from D4 to D3.
- Vehicle does not decelerate by engine brake when turning overdrive control switch OFF.
- Vehicle does not decelerate by engine brake when shifting A/T from D to 2nd position.

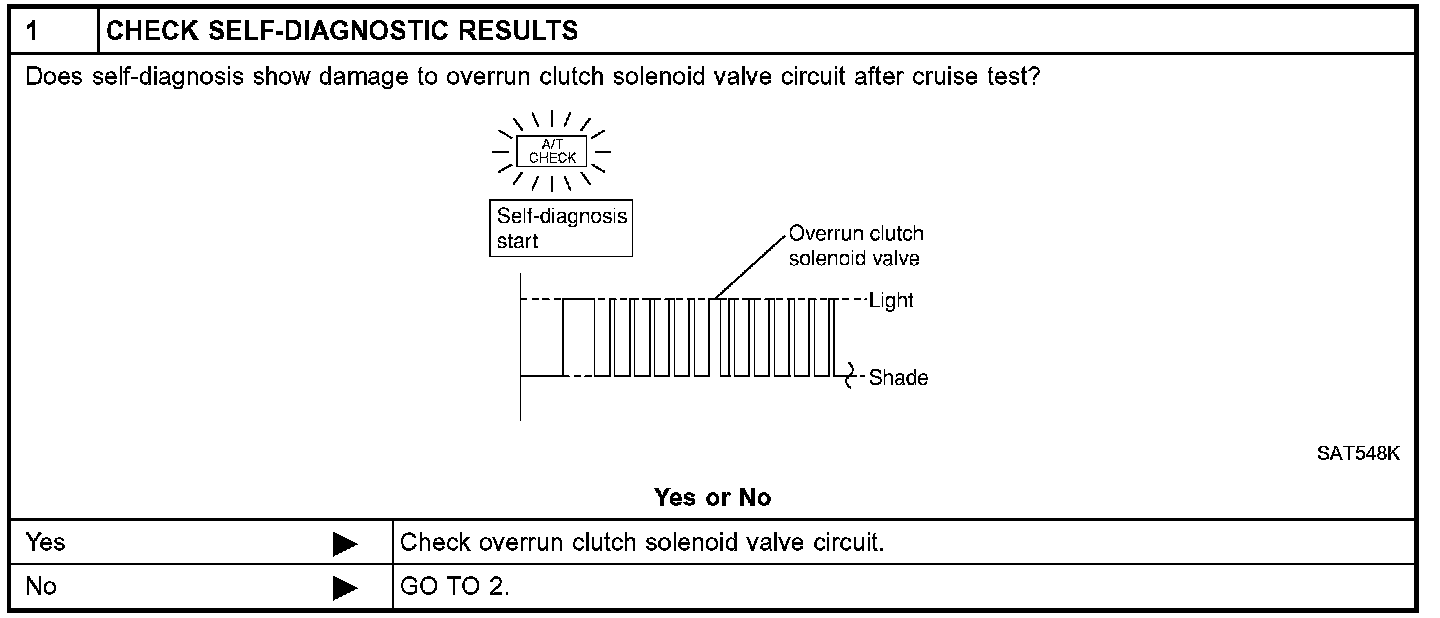

1 of 7

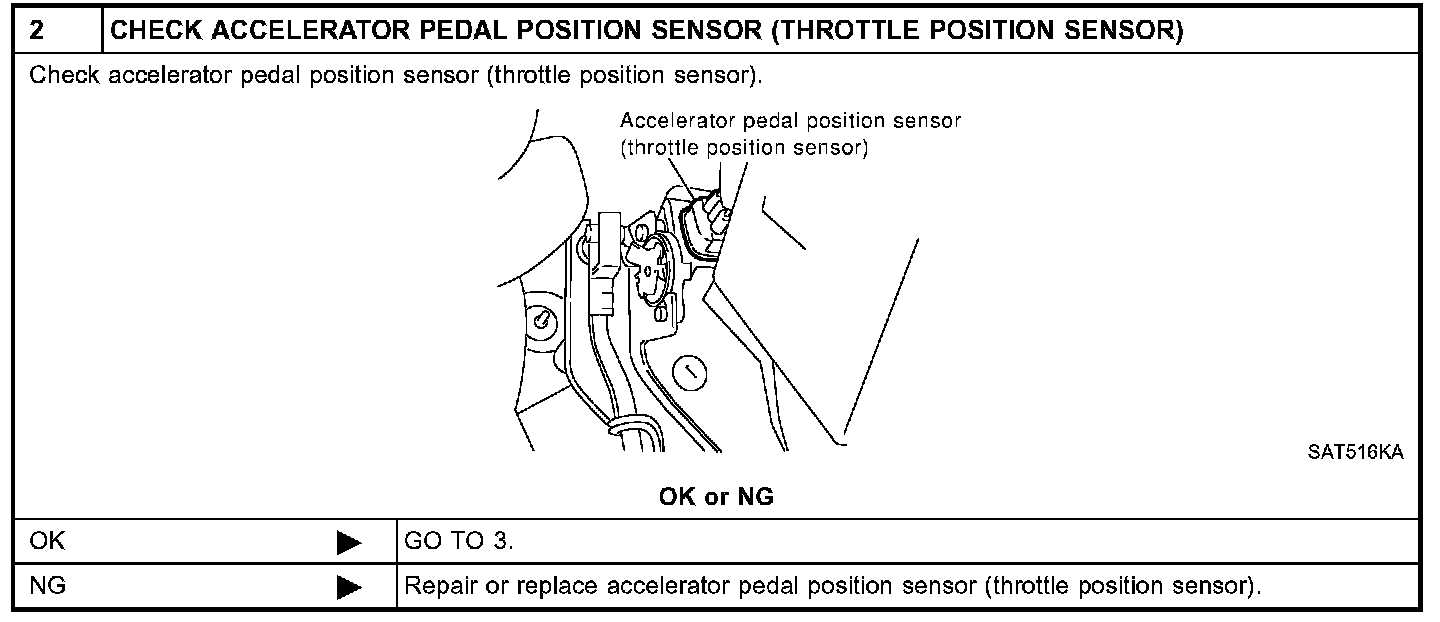

2 of 7

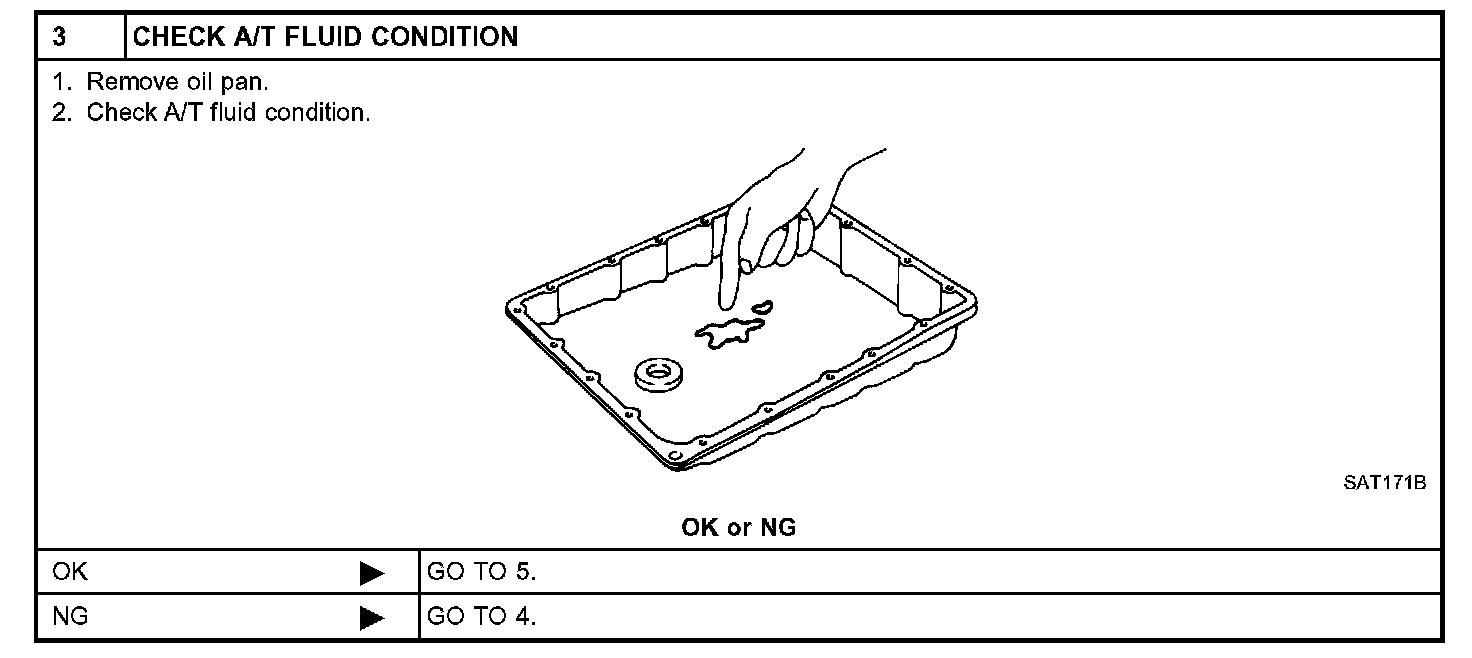

3 of 7

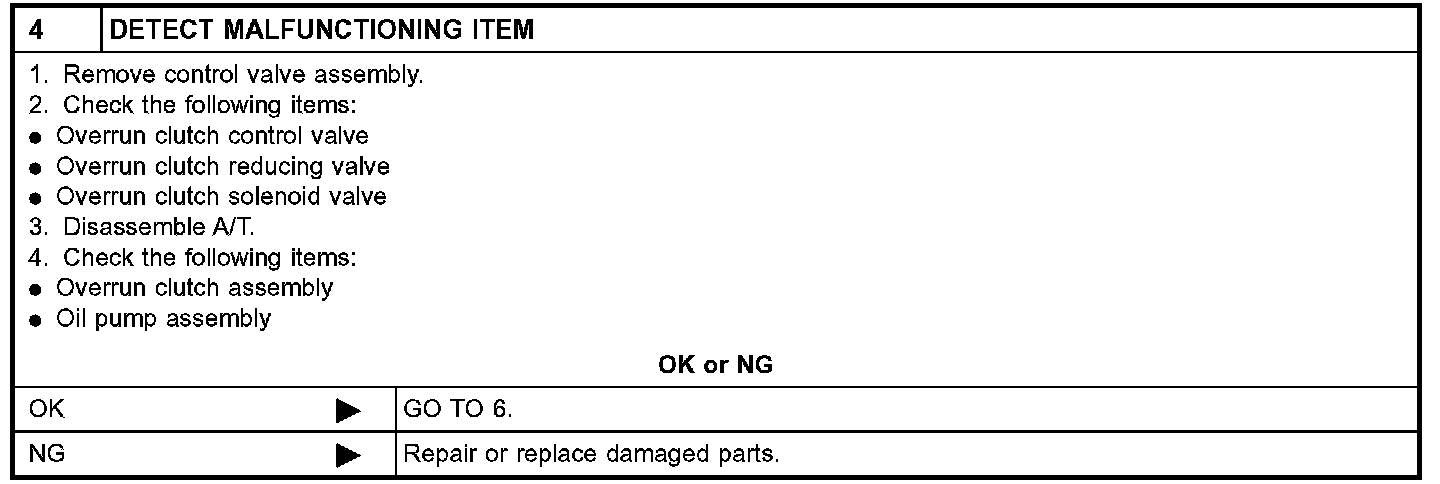

4 of 7

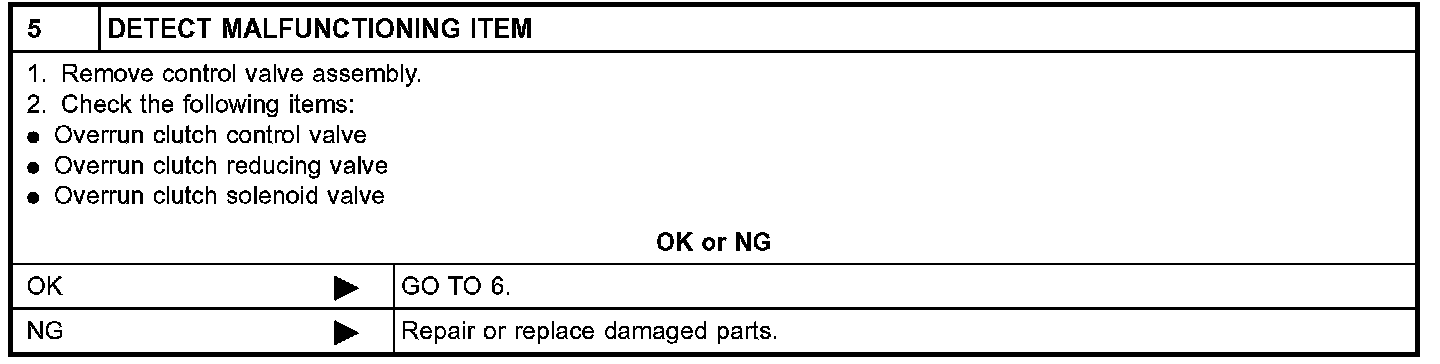

5 of 7

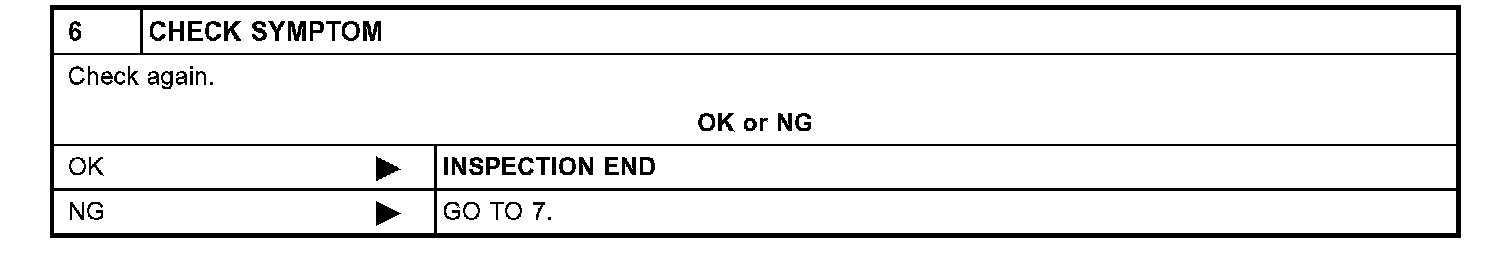

6 of 7

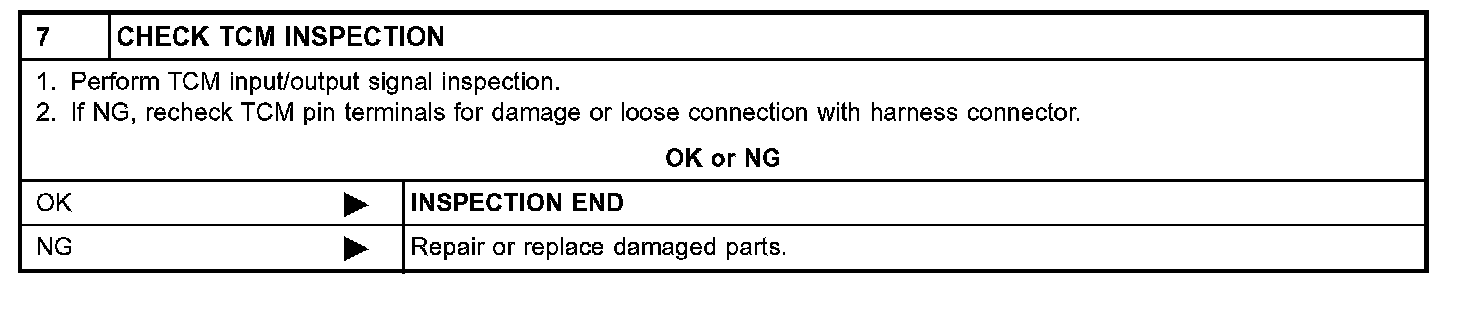

7 of 7
