Procedure 19

19. A/T Does Not Shift: 2(2) - 1(1), When Selector Lever 2nd - 1st Position

SYMPTOM: A/T does not shift from 2(2) to 1(1) when changing selector lever from 2nd to 1st position.

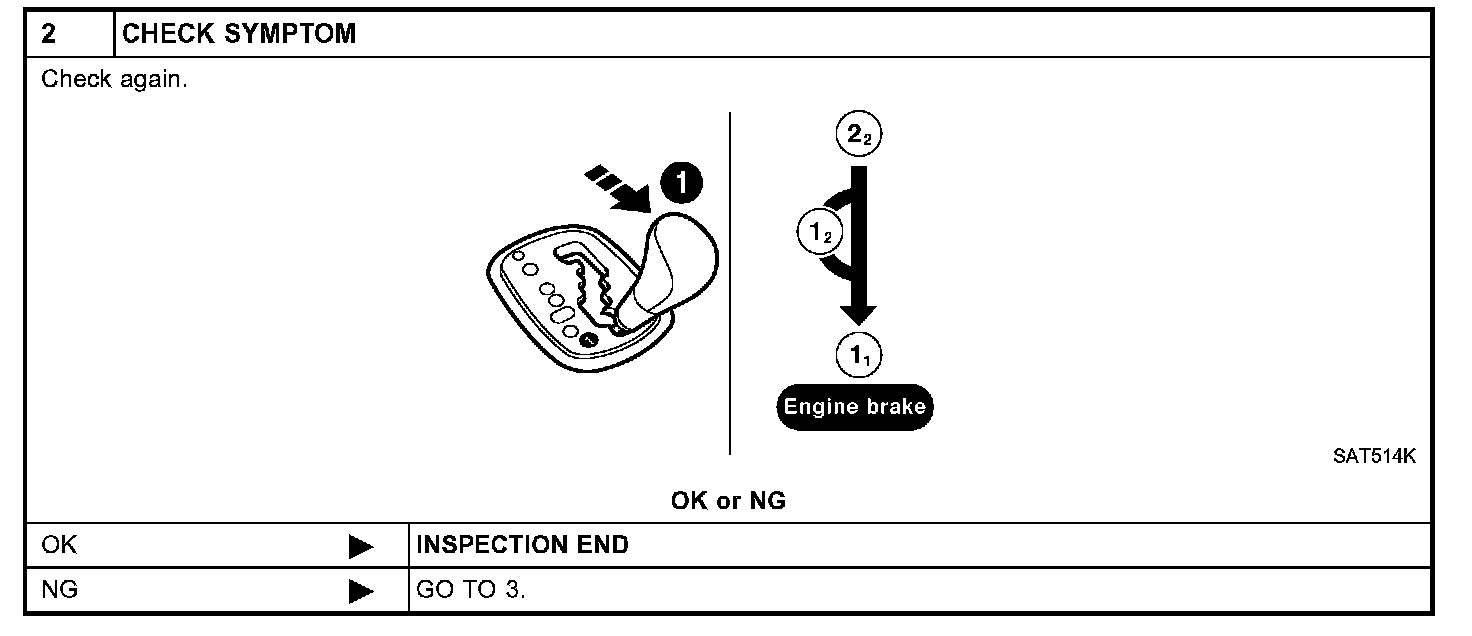

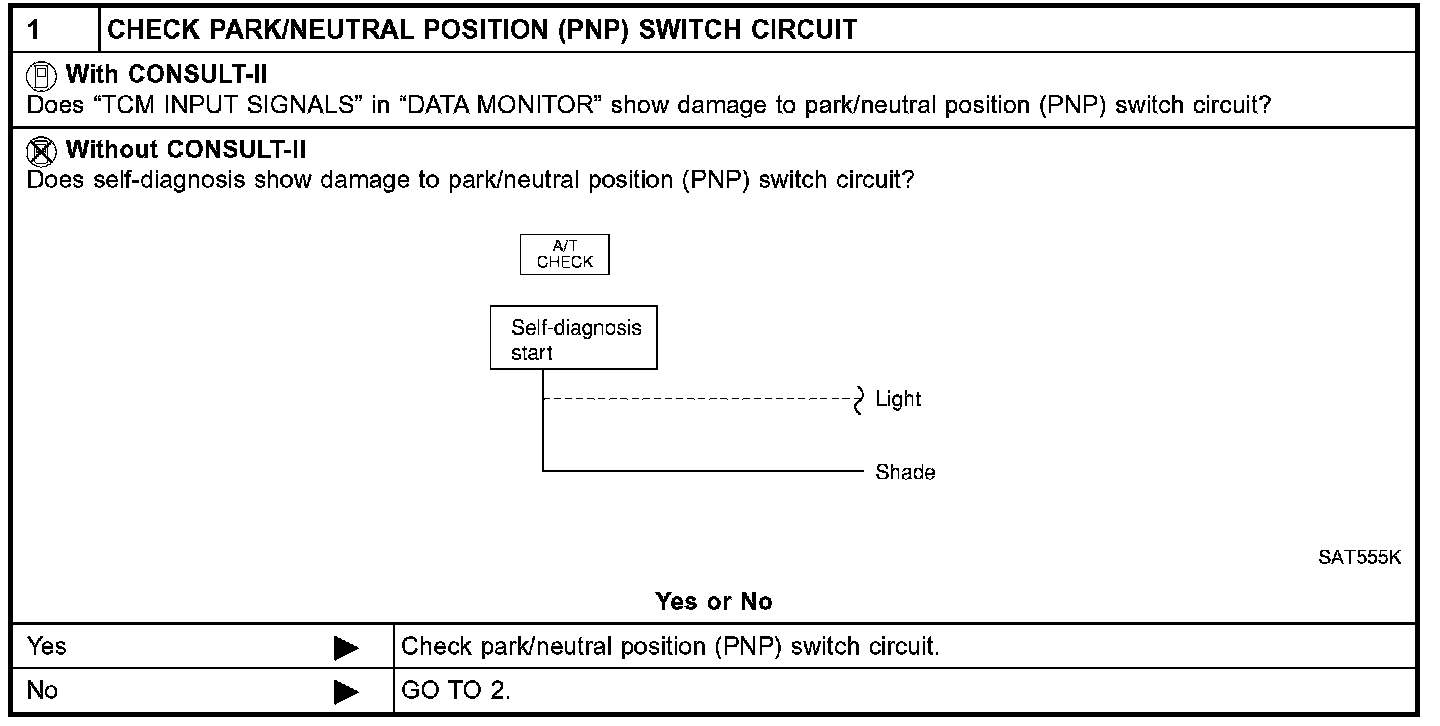

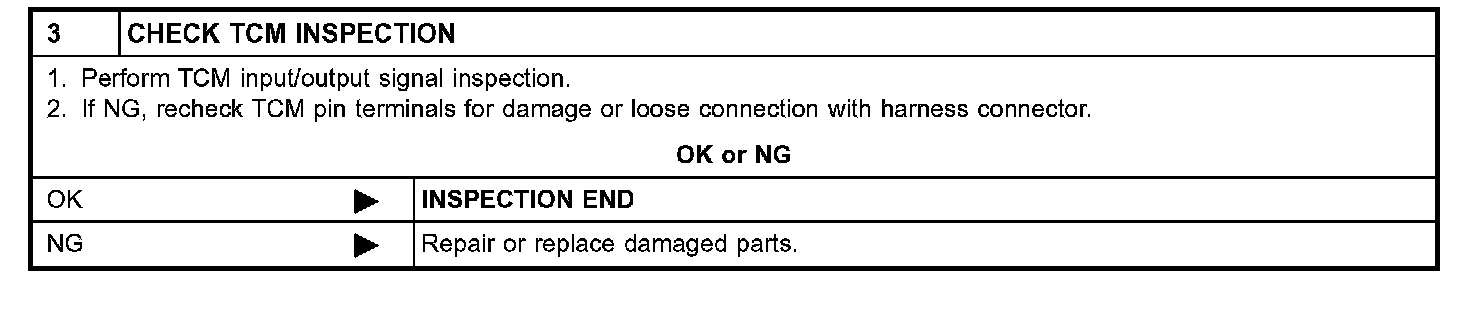

1 of 3





2 of 3





3 of 3
