Procedure 8

8. Vehicle Cannot Be Started From D(1)

SYMPTOM: Vehicle cannot be started from D(1) on Cruise test-Part 1.

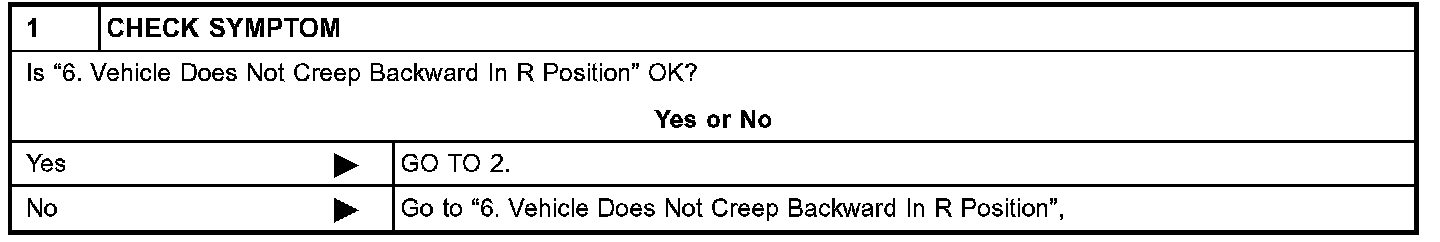

1 of 9

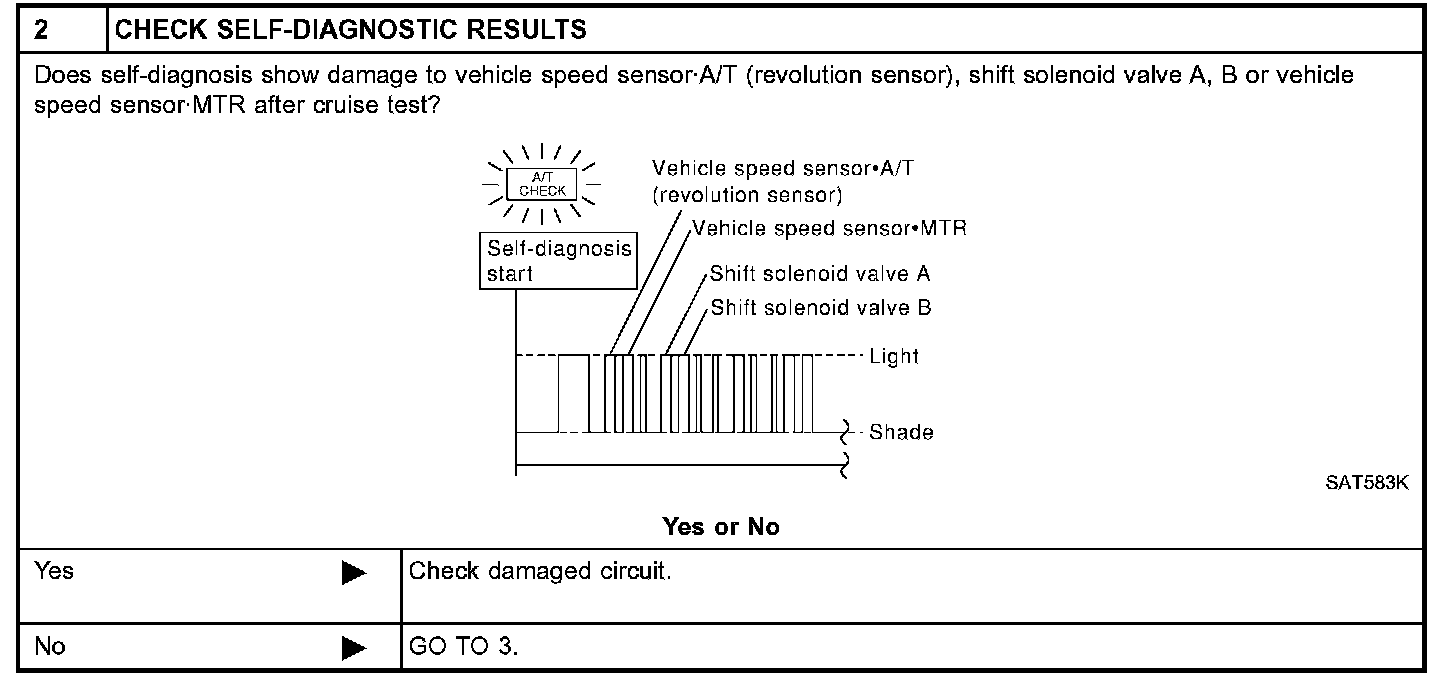

2 of 9

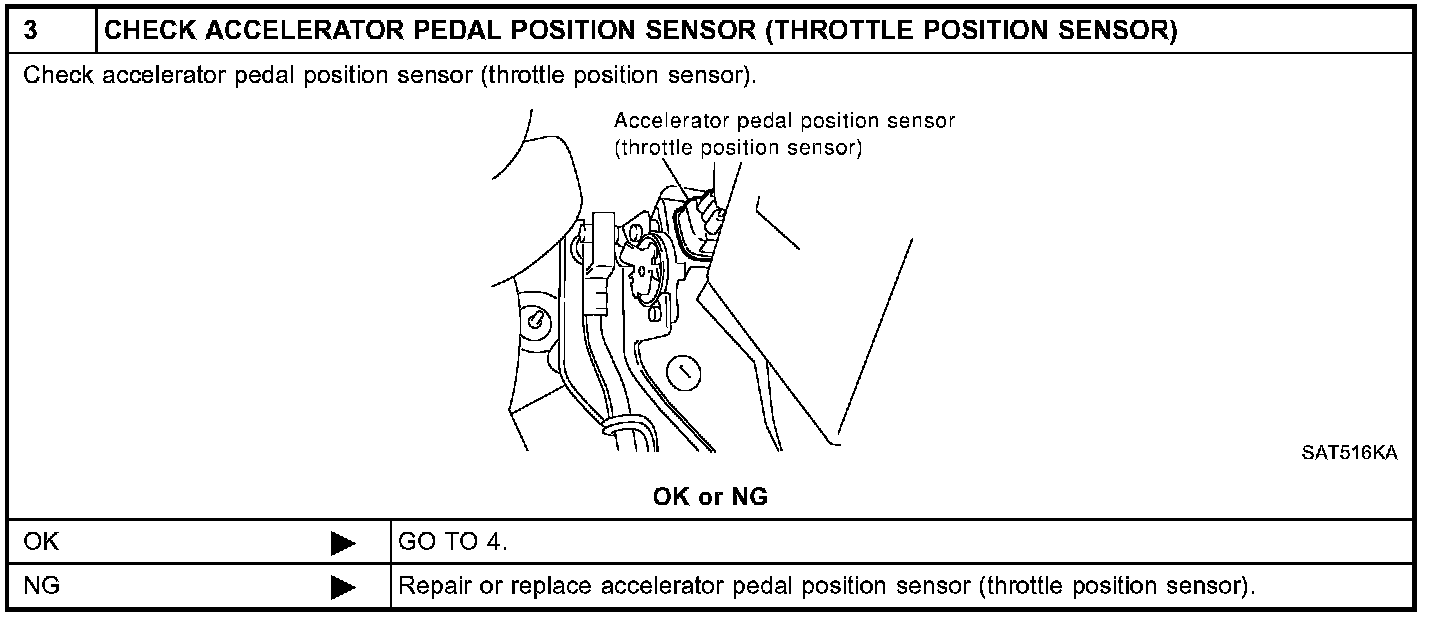

3 of 9

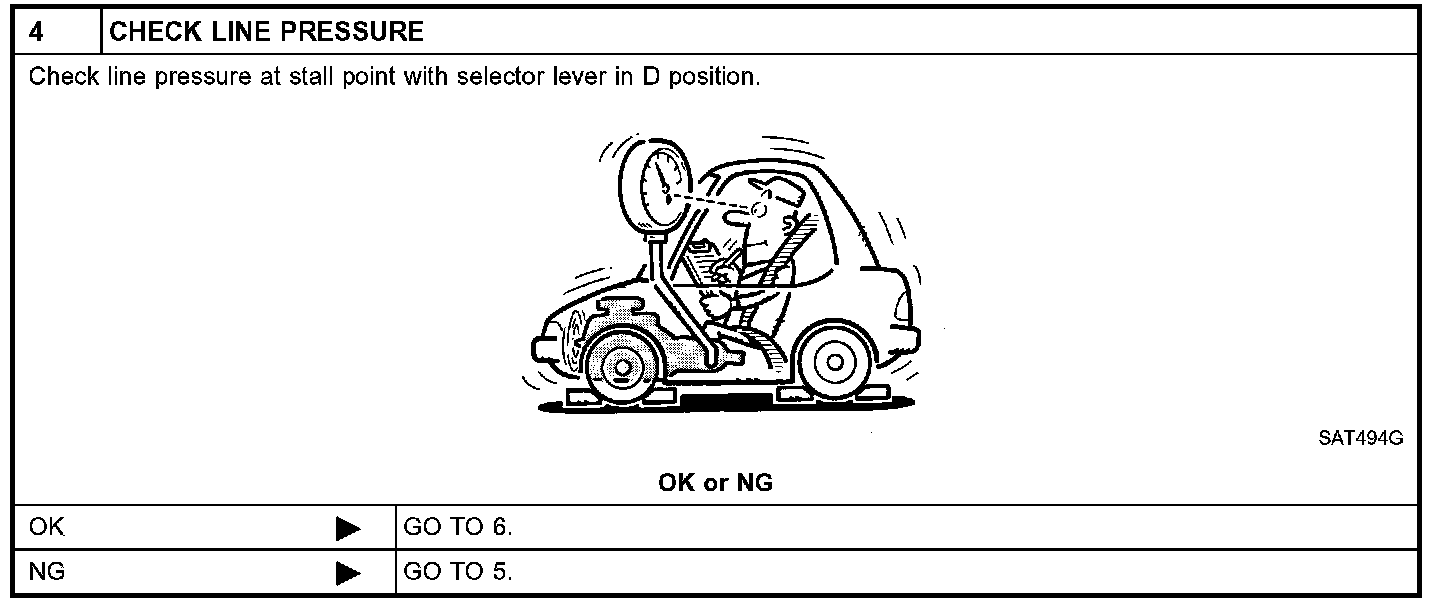

4 of 9

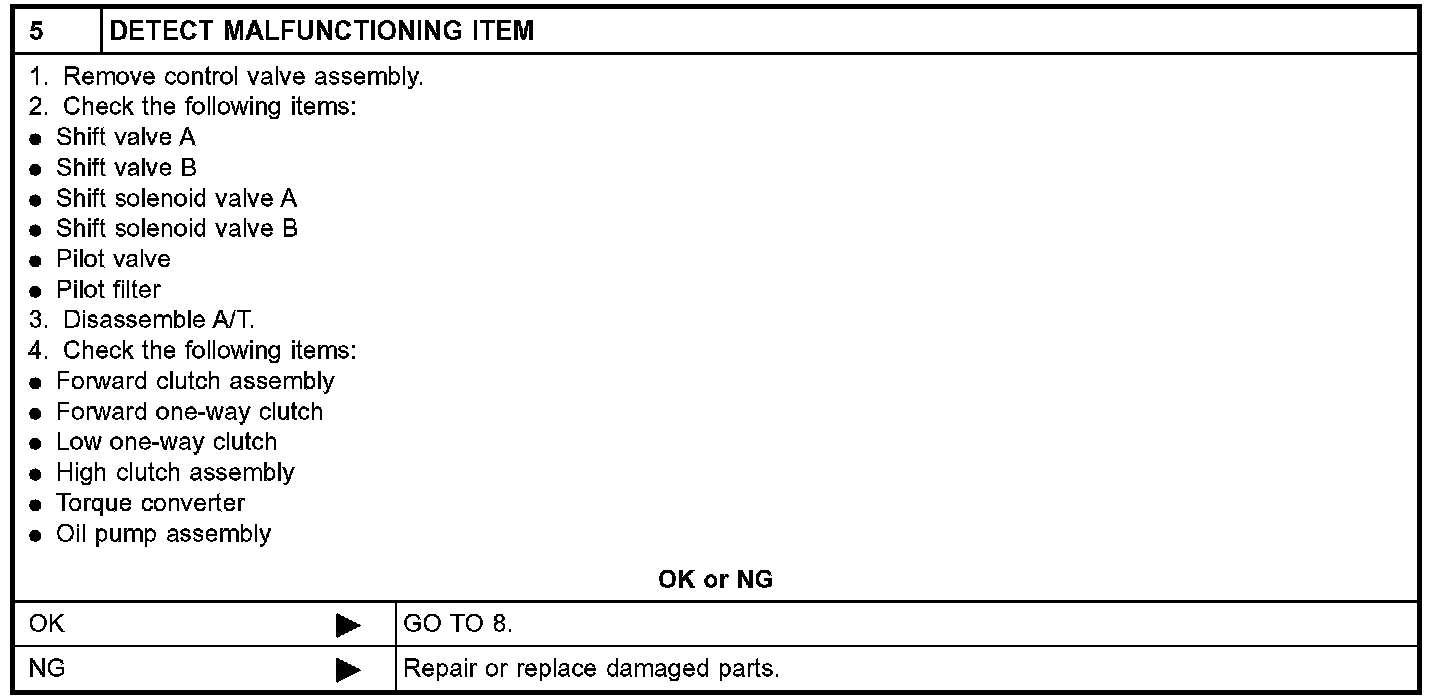

5 of 9

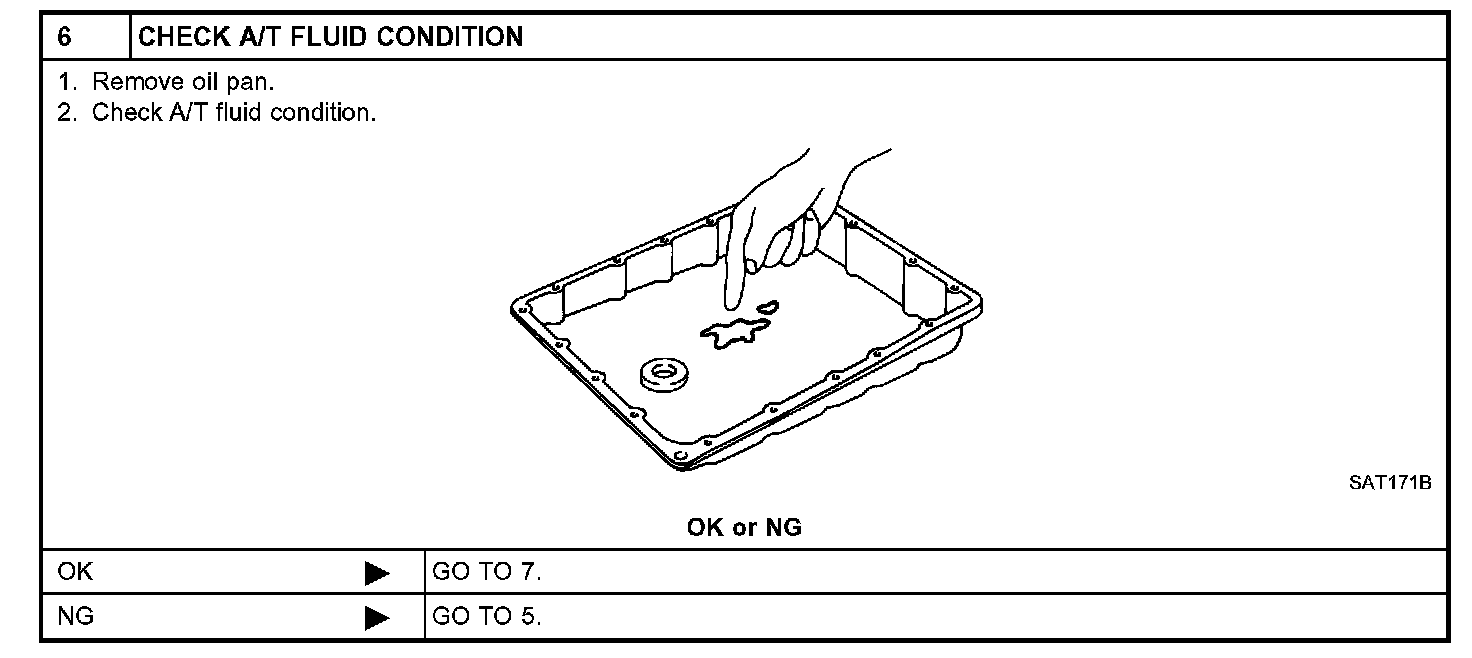

6 of 9

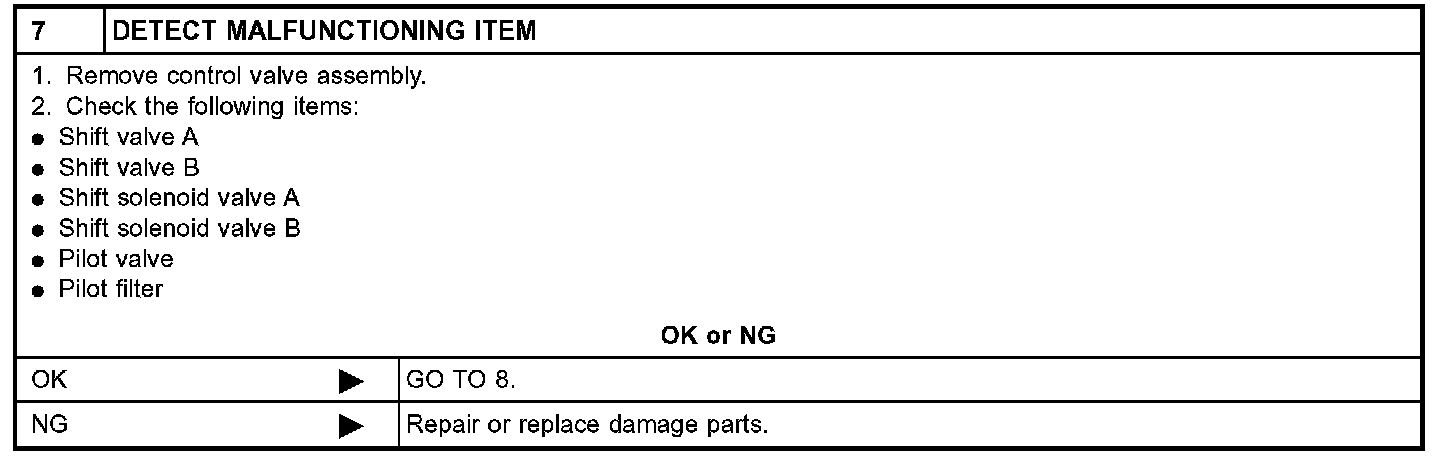

7 of 9

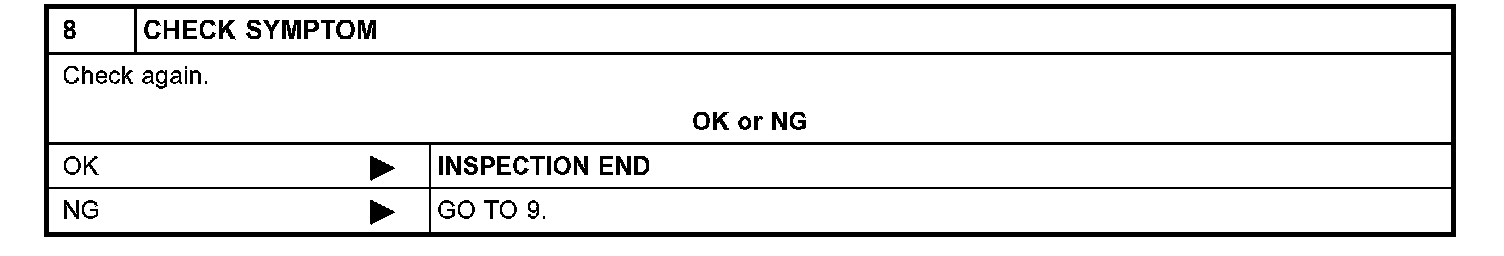

8 of 9

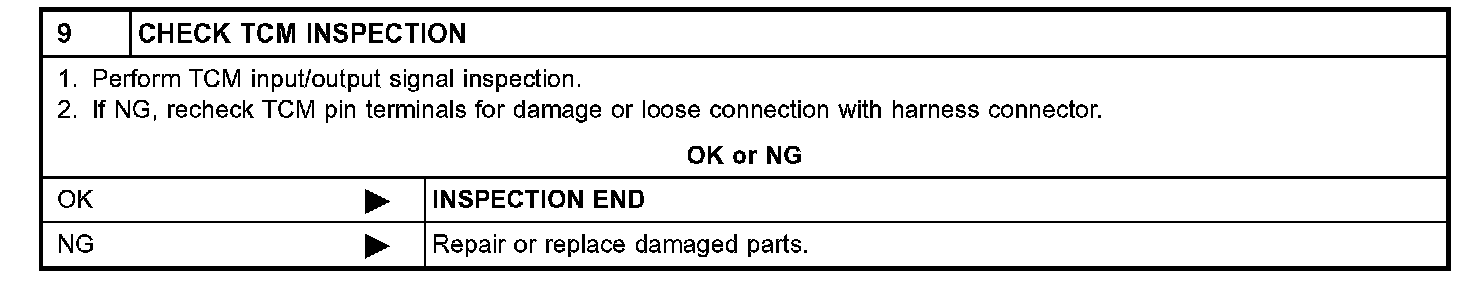

9 of 9
