Procedure 9

9. A/T Does Not Shift: D(1) - D(2) or Does Not Kickdown: D4 - D2

SYMPTOM:
A/T does not shift from D1 to D2 at the specified speed.
A/T does not shift from D4 to D2 when depressing accelerator pedal fully at the specified speed.

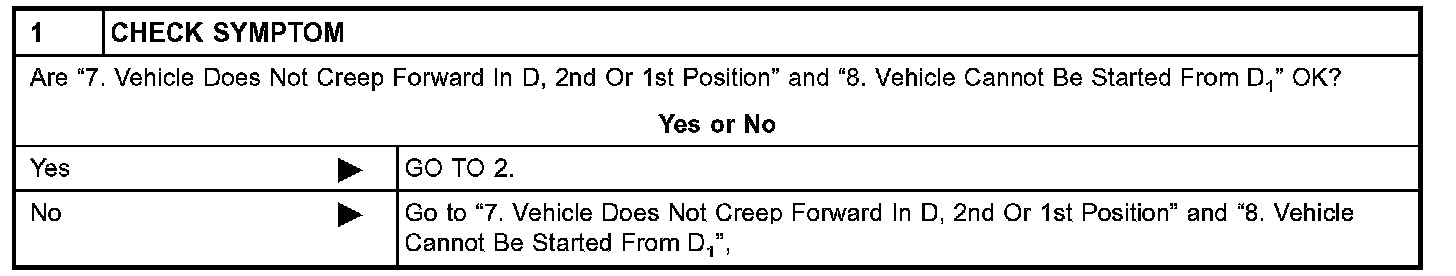

1 of 9





2 of 9





3 of 9





4 of 9





5 of 9





6 of 9





7 of 9





8 of 9





9 of 9
