Navigation Module: Service and Repair

Removal and Installation of NAVI Control Unit




1. Remove center box assy.

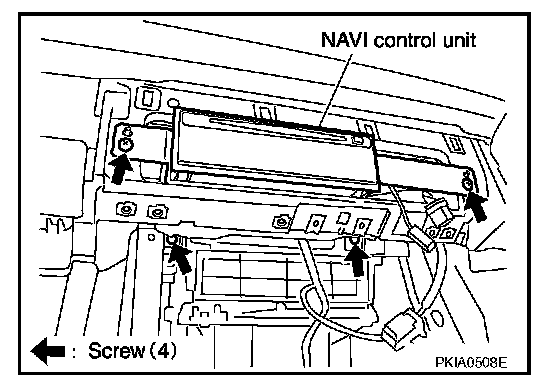

2. Remove screws (4), and remove NAVI control unit.

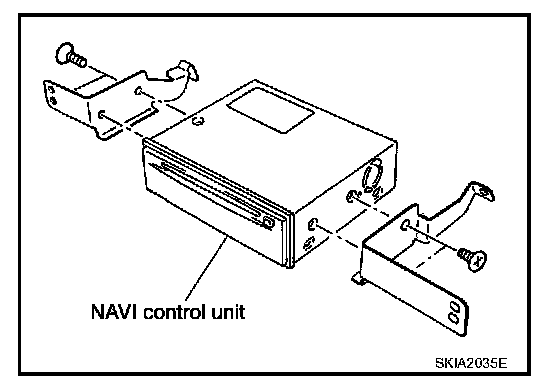

3. Remove screws(4), and remove bracket.
