Cruise Control Switch: Testing and Inspection

Component Inspection

ASCD STEERING SWITCH

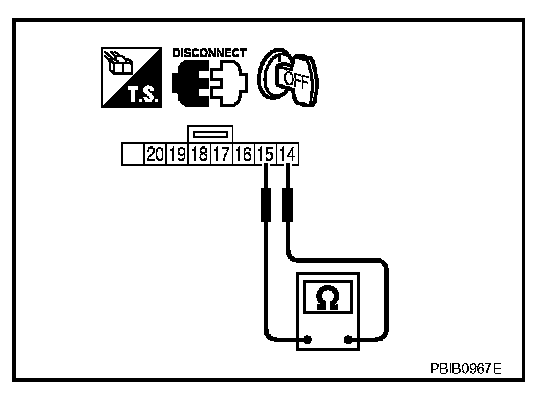

1. Disconnect ASCD steering switch.

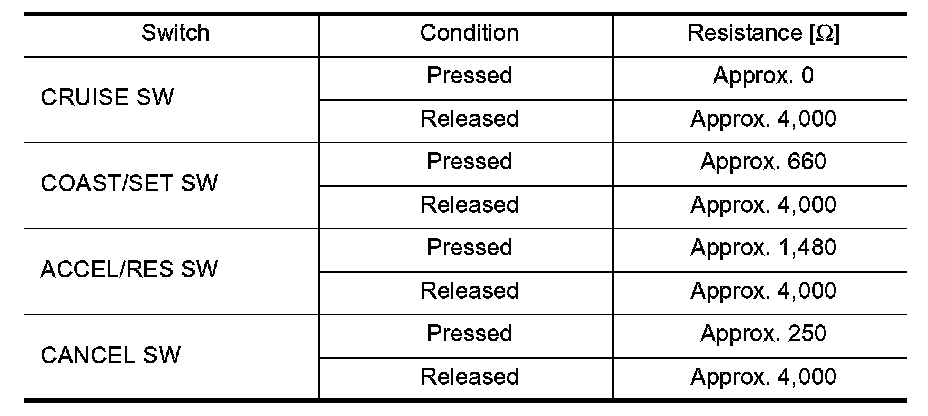

2. Check continuity between terminals 14 and 15 by pushing each switch.
