Symptom Chart

Symptom Chart
The diagnostics item numbers show the sequence for inspection. Inspect in order from Item 1.

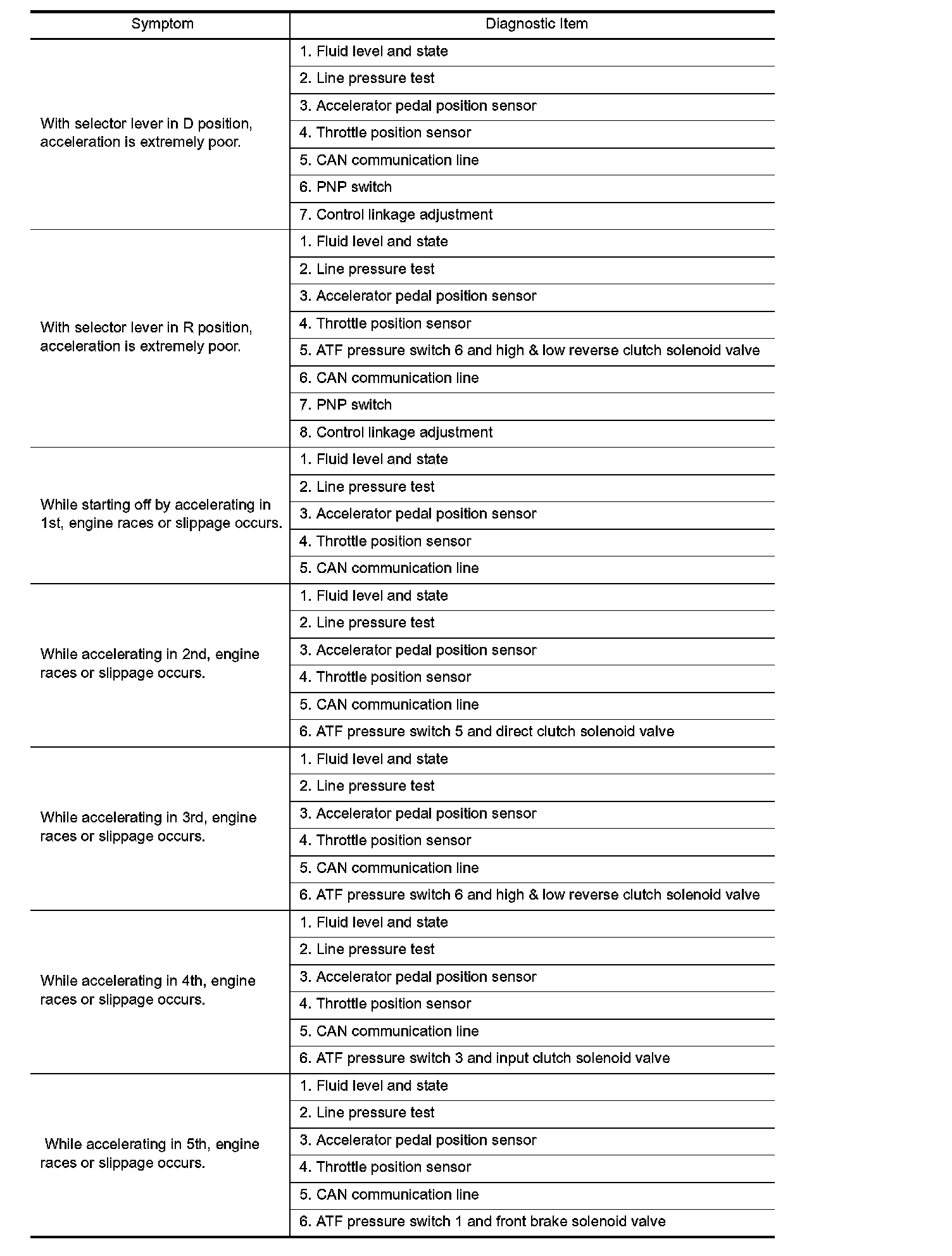

Chart 1 Of 9:

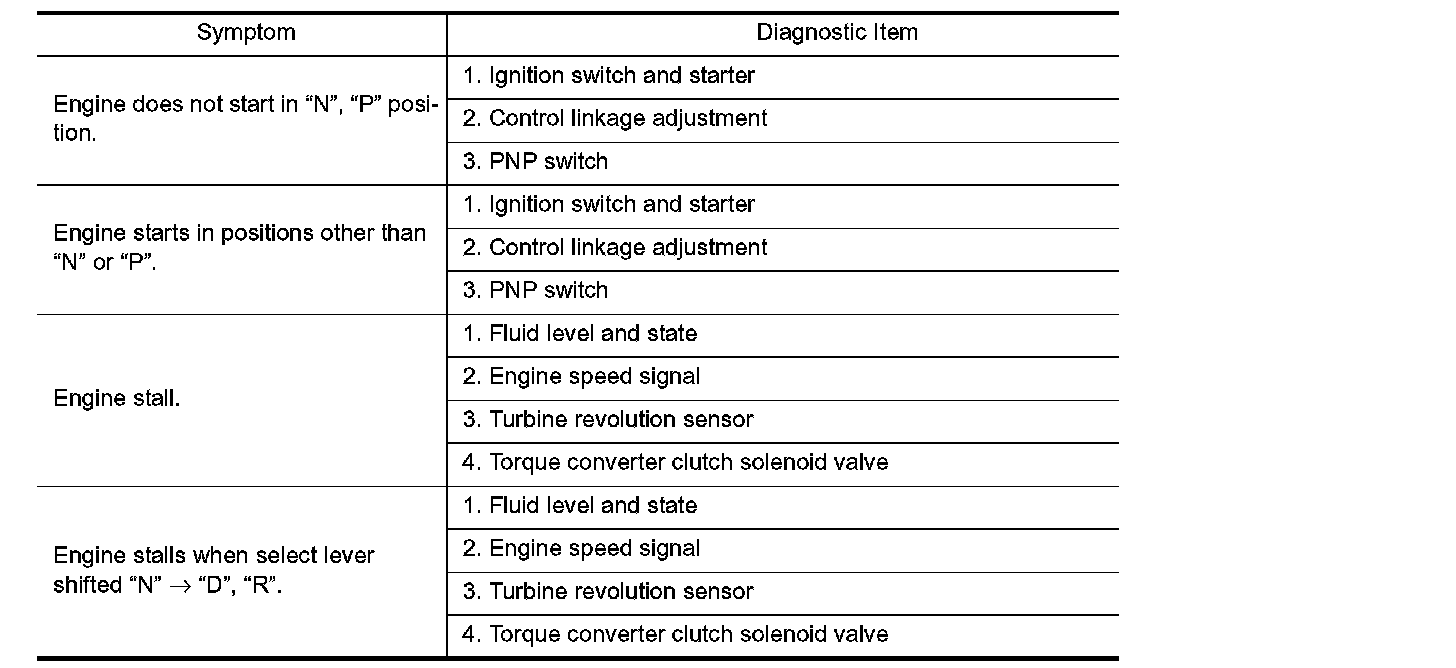

Chart 2 Of 9:

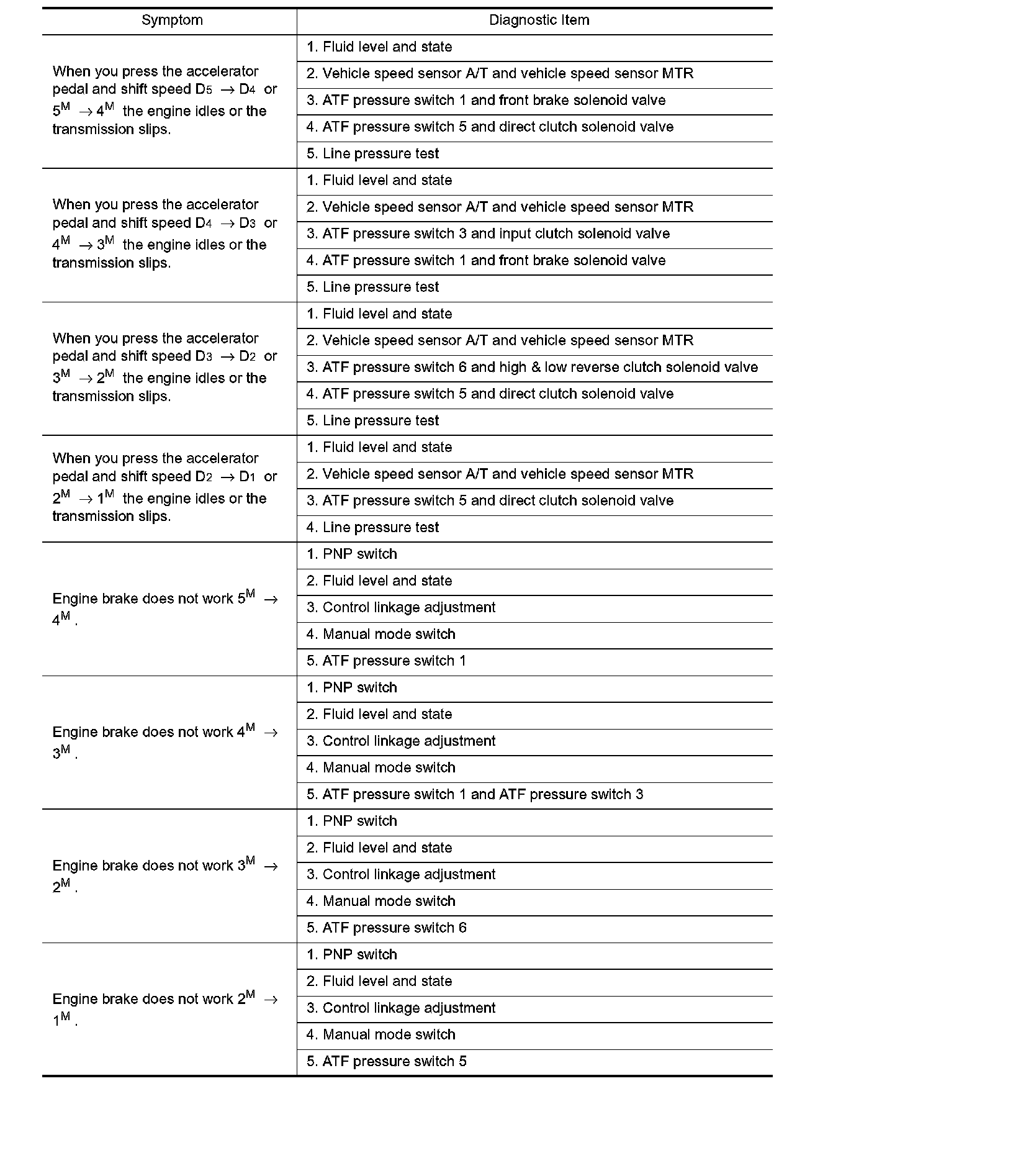

Chart 3 Of 9:

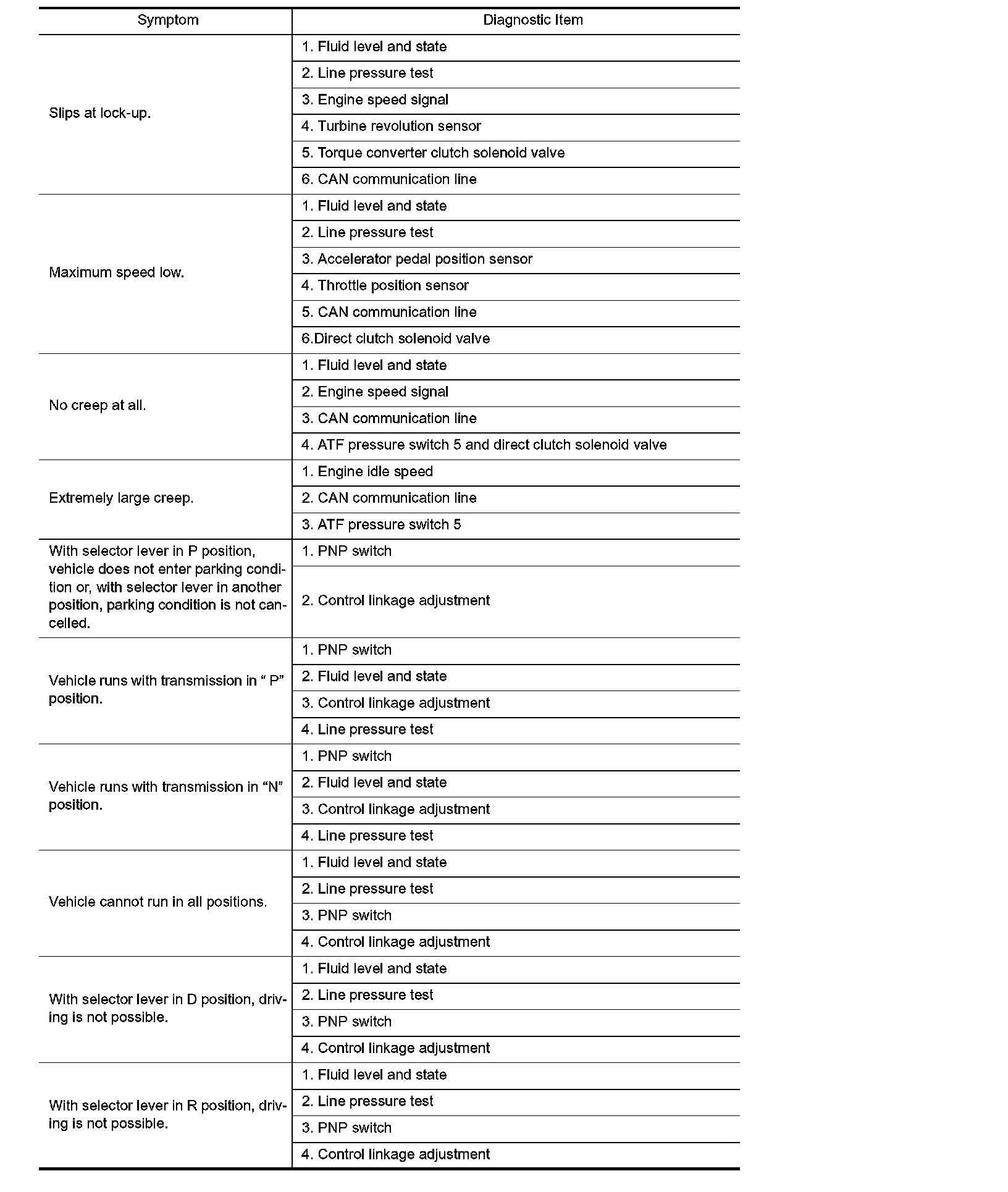

Chart 4 Of 9:

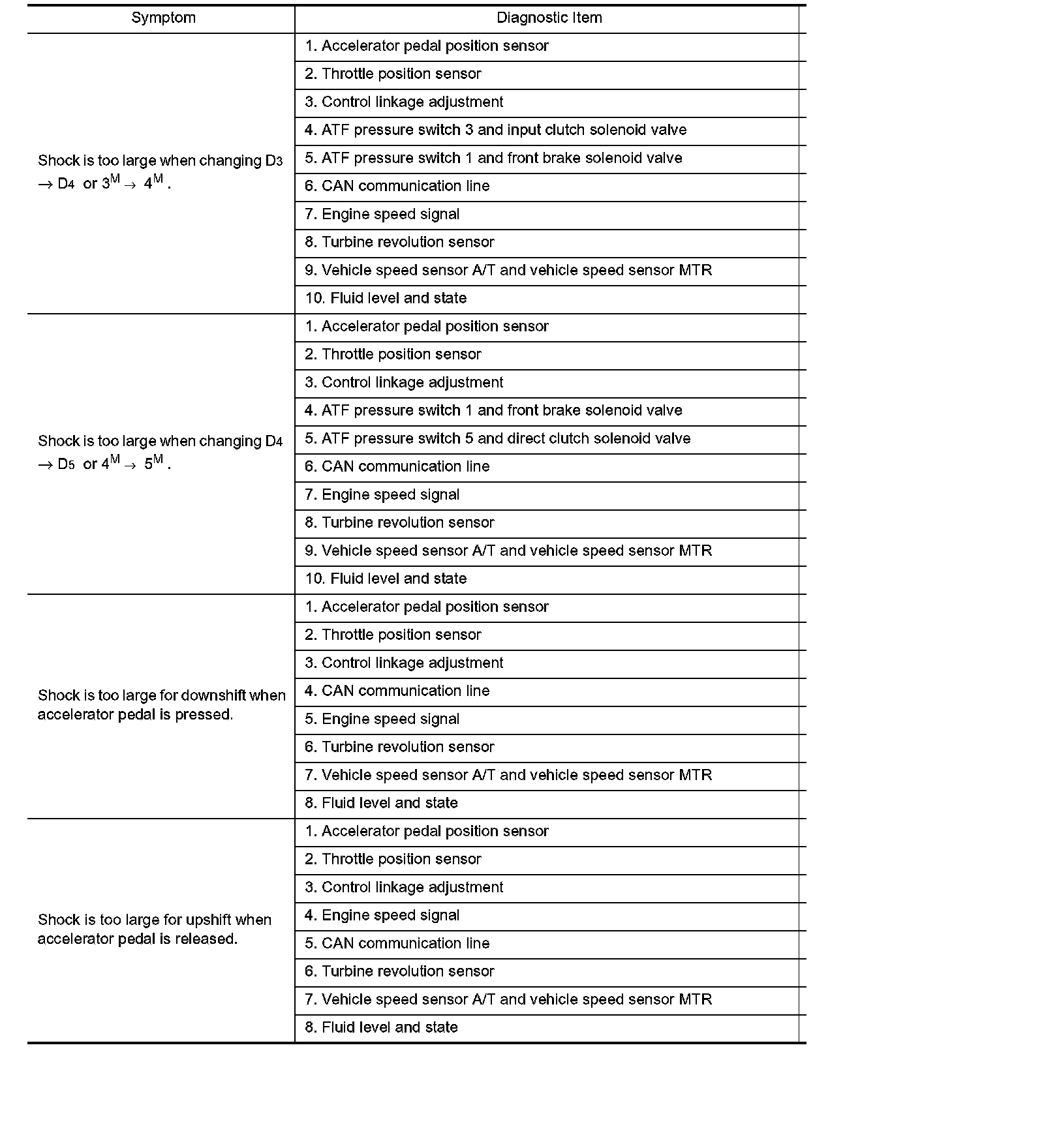

Chart 5 Of 9:

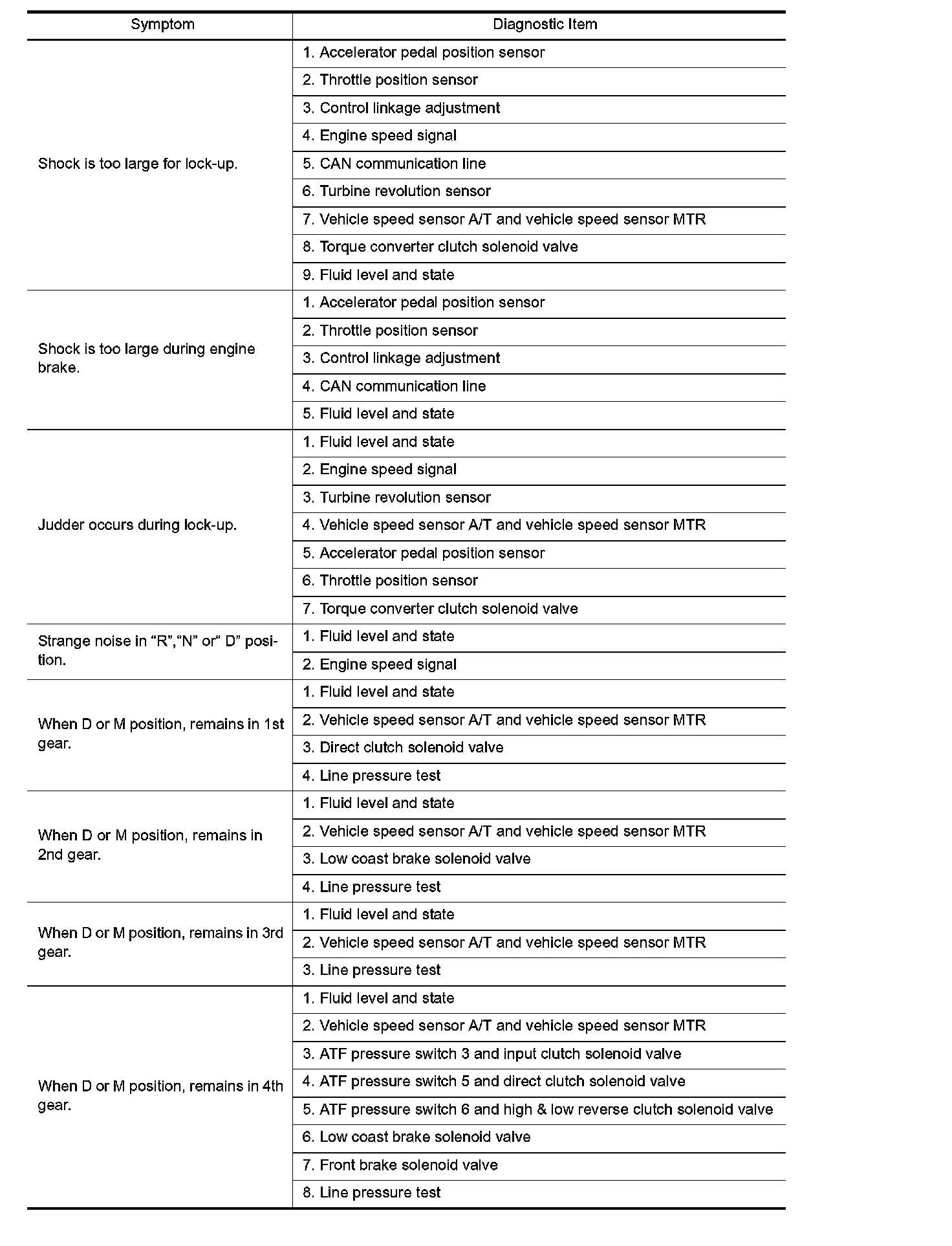

Chart 6 Of 9:

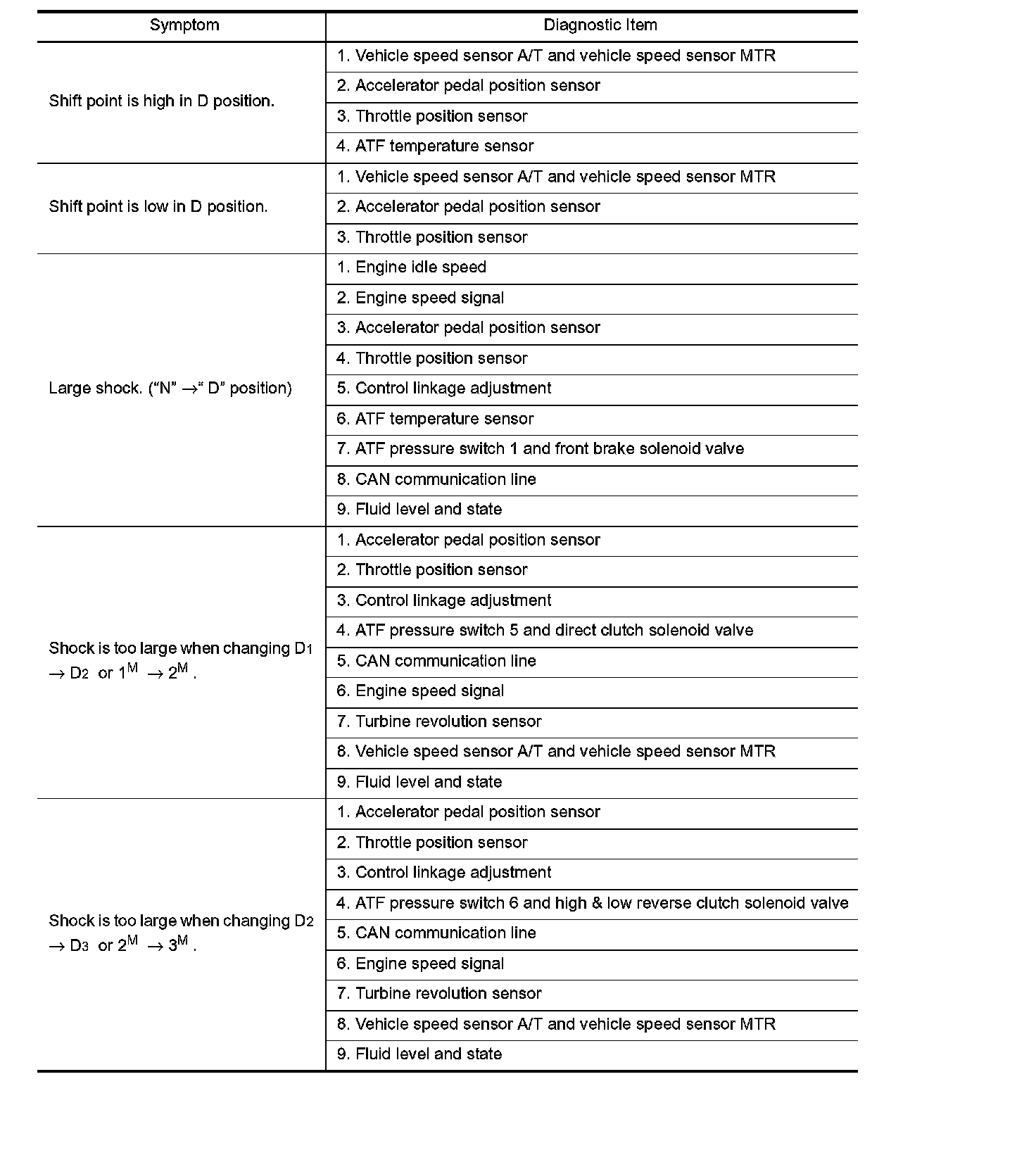

Chart 7 Of 9:

Chart 8 Of 9:

Chart 9 Of 9:

CAUTION:
^ If any malfunction occurs in the RE5RO5A transmission, replace the transmission assembly.
^ Condition for "on vehicle" only
