Symptom Chart

Symptom Chart

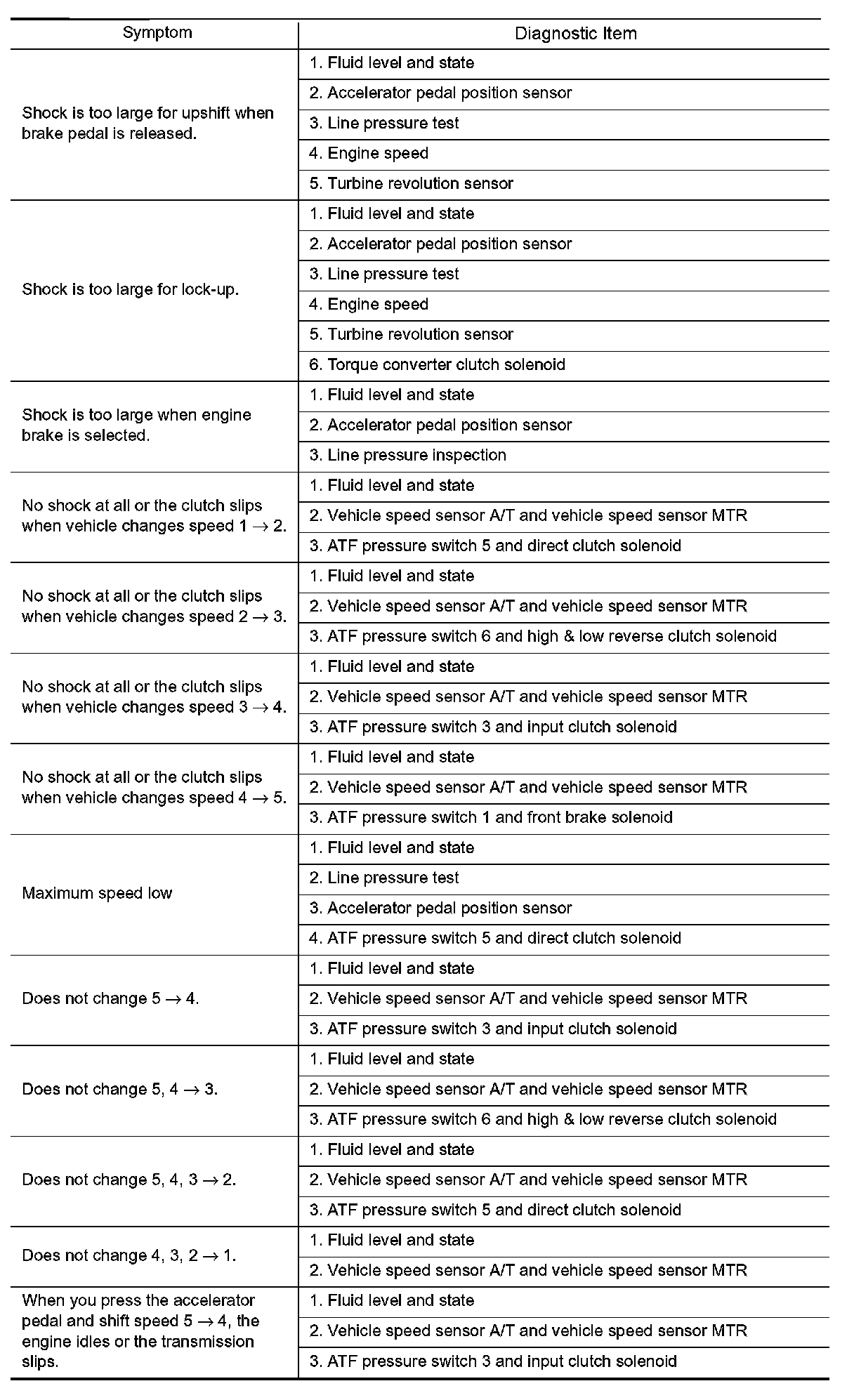

Chart 1 Of 5:

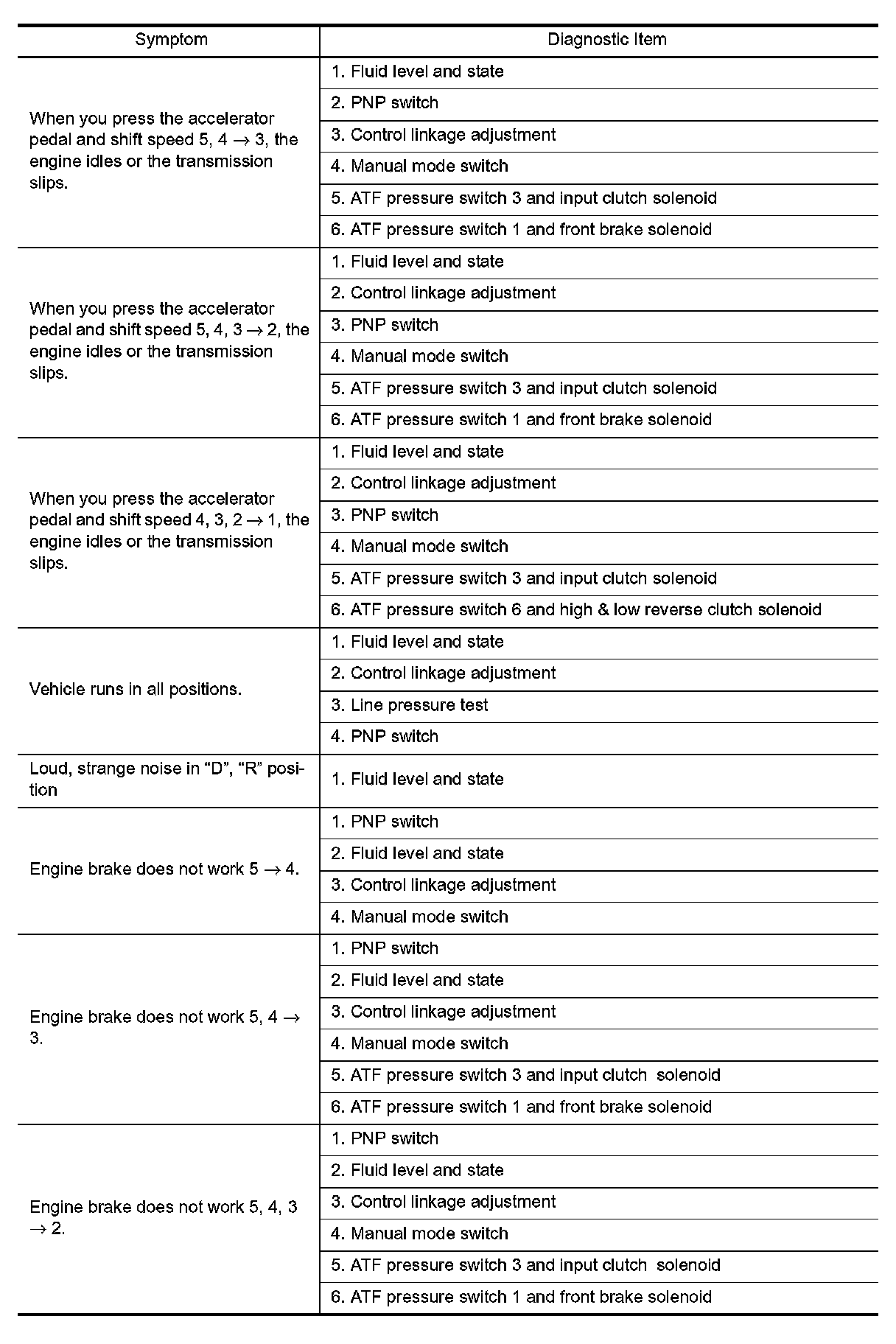

Chart 2 Of 5:

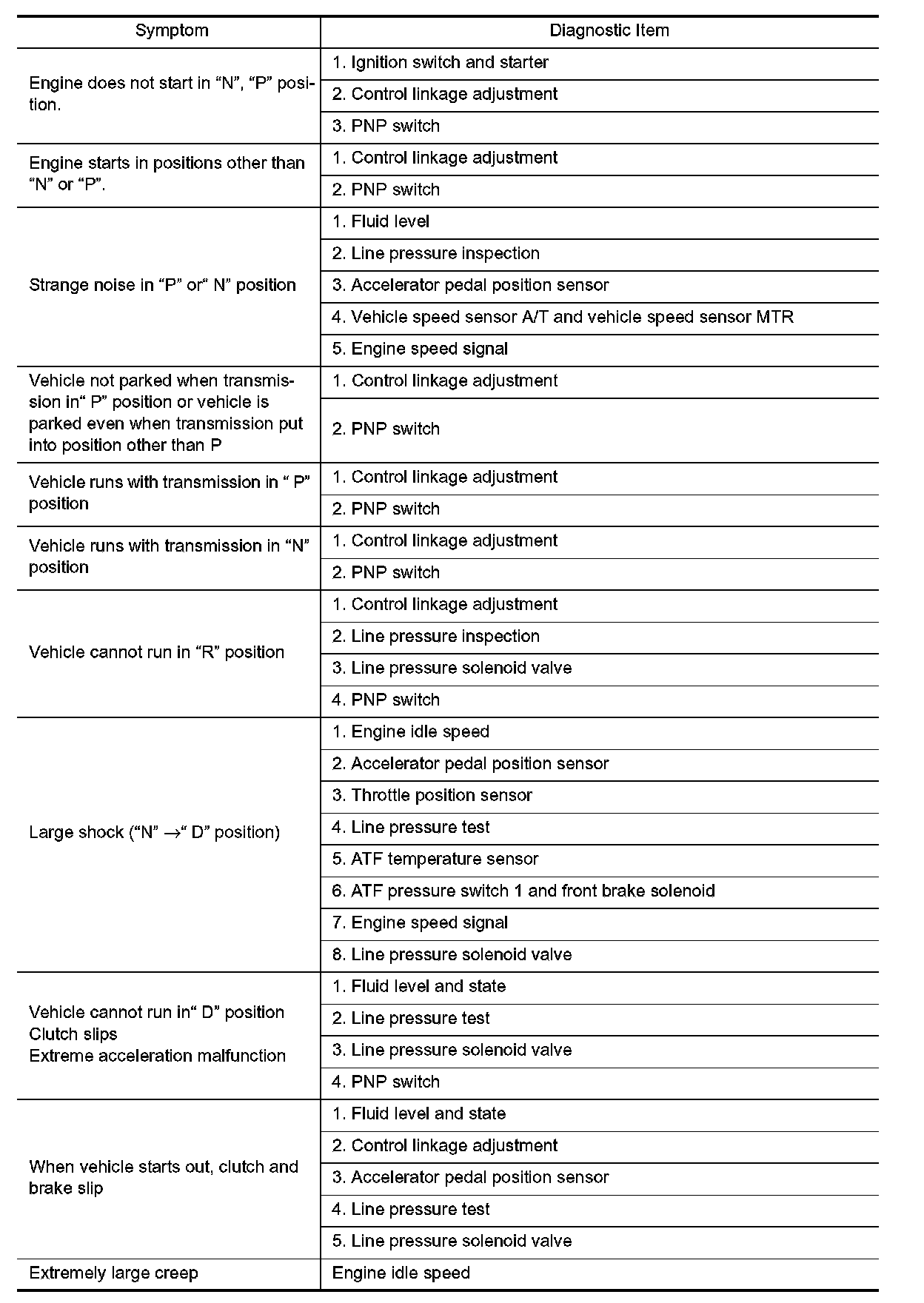

Chart 3 Of 5:

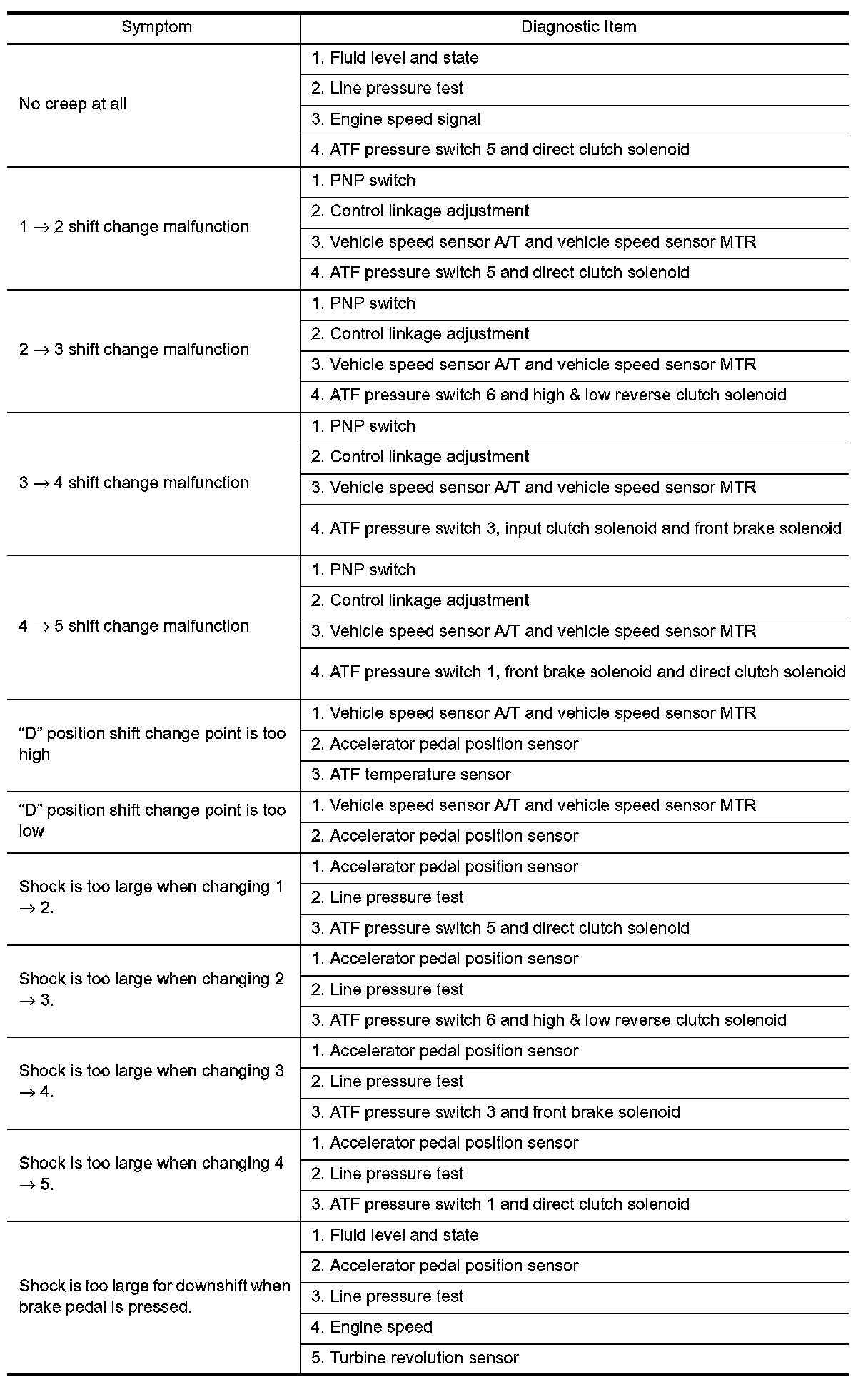

Chart 4 Of 5:

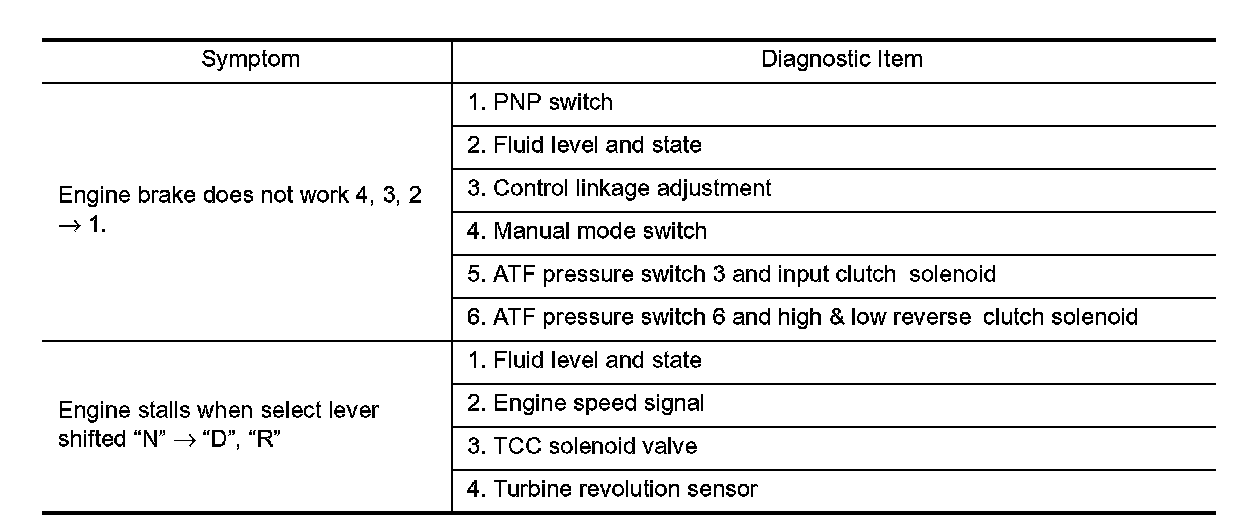

Chart 5 Of 5:

The diagnostics item numbers show the sequence for inspection. Inspect in order from Item 1.

CAUTION:
^ If any malfunction occurs in the RE5R05A transmission, replace the transmission assembly.
^ Condition for "on vehicle" only
