Multiple Junction Connector
Multiple Junction Connector

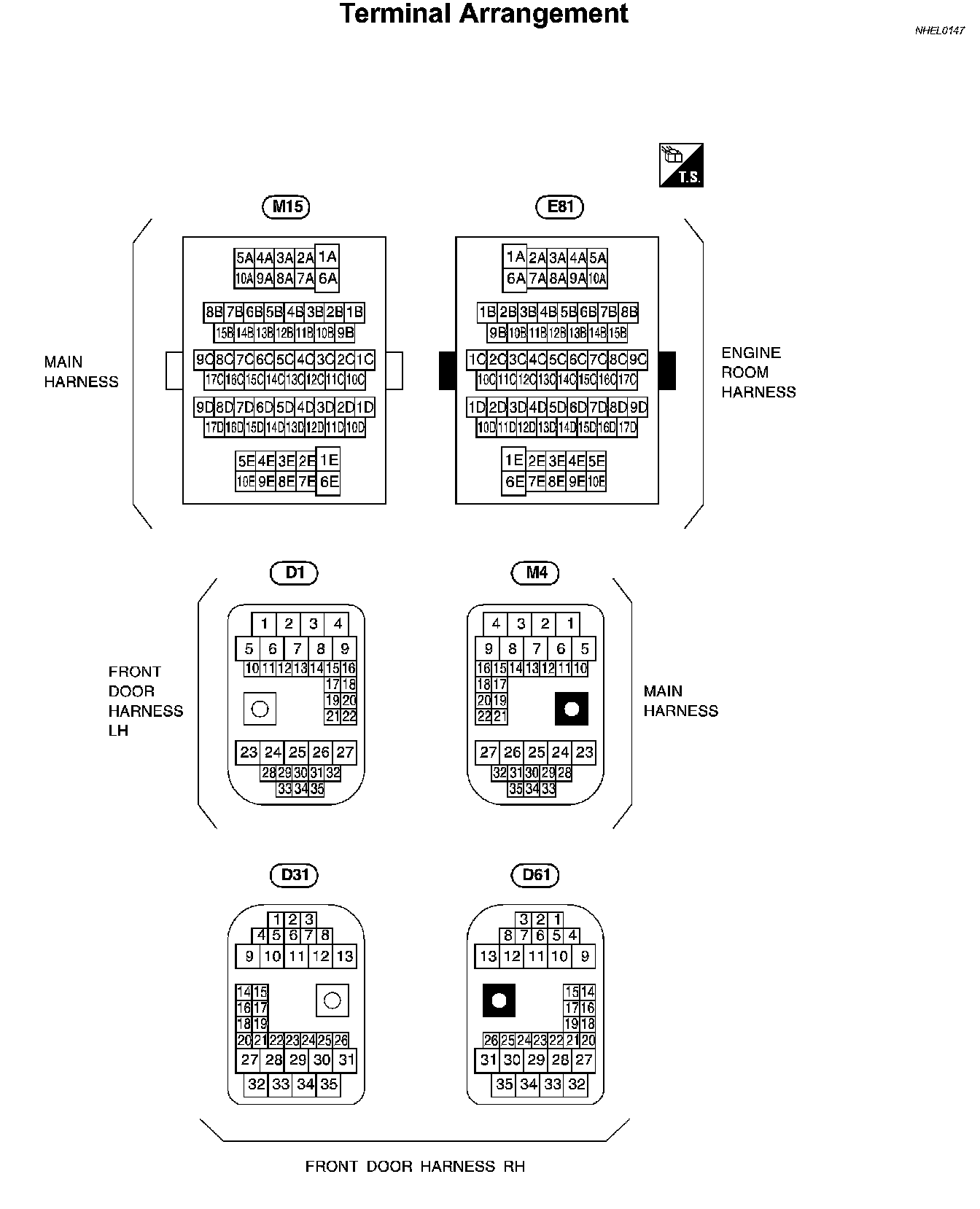

Super Multiple Junction (SMJ) - Terminal Arrangement:

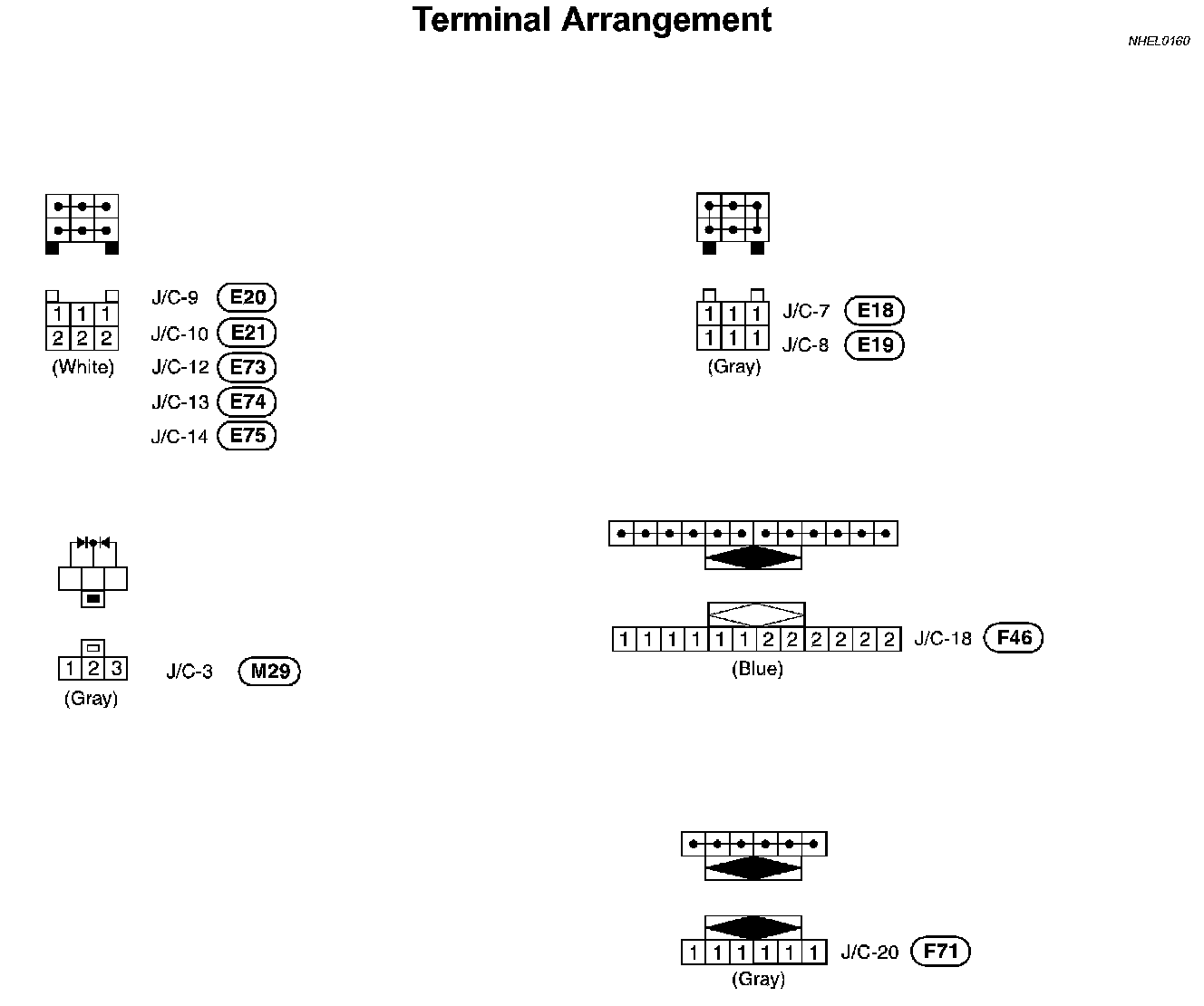

Joint Connector (J/C) - Terminal Arrangement:
