TCM Power Supply Testing
AT-MAIN-01:

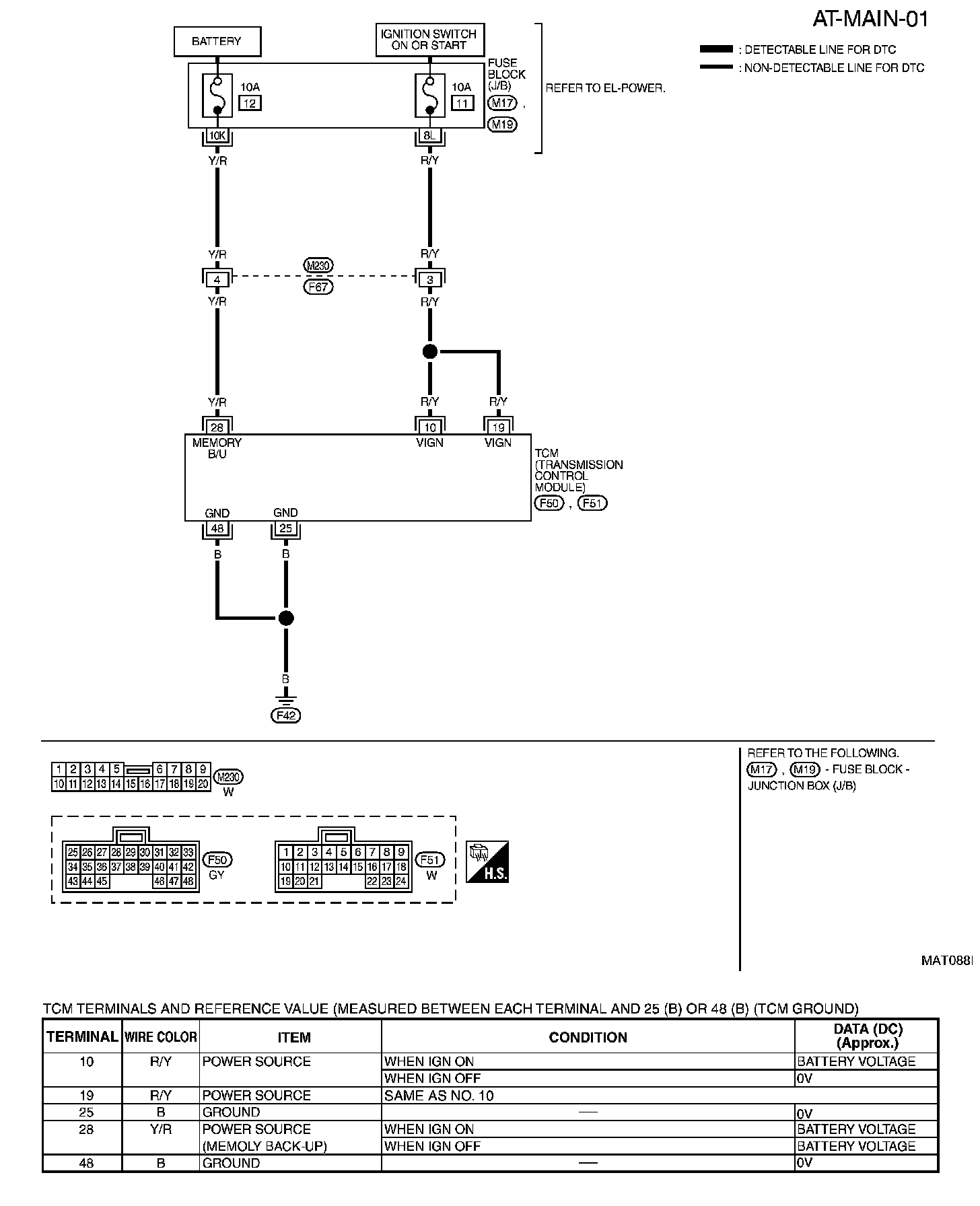

Wiring Diagram-AT-MAIN
TCM

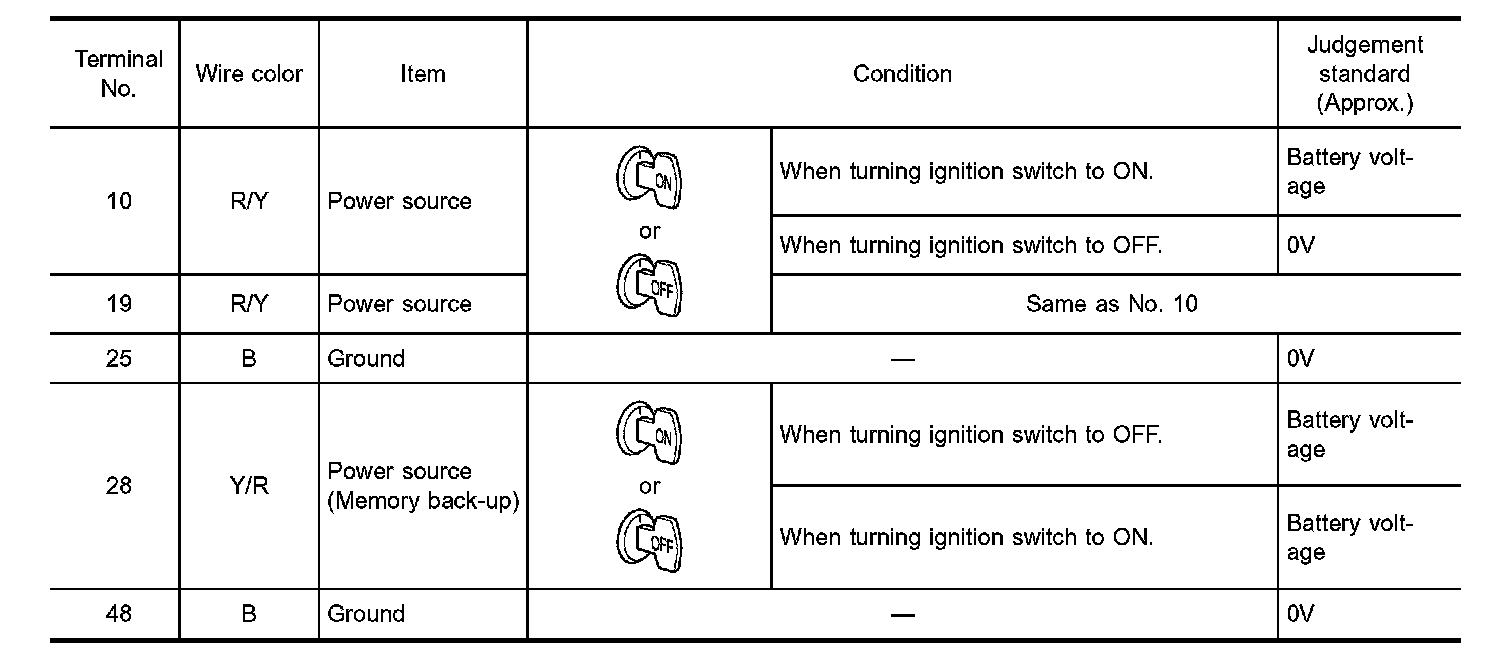

TERMINALS AND REFERENCE VALUE

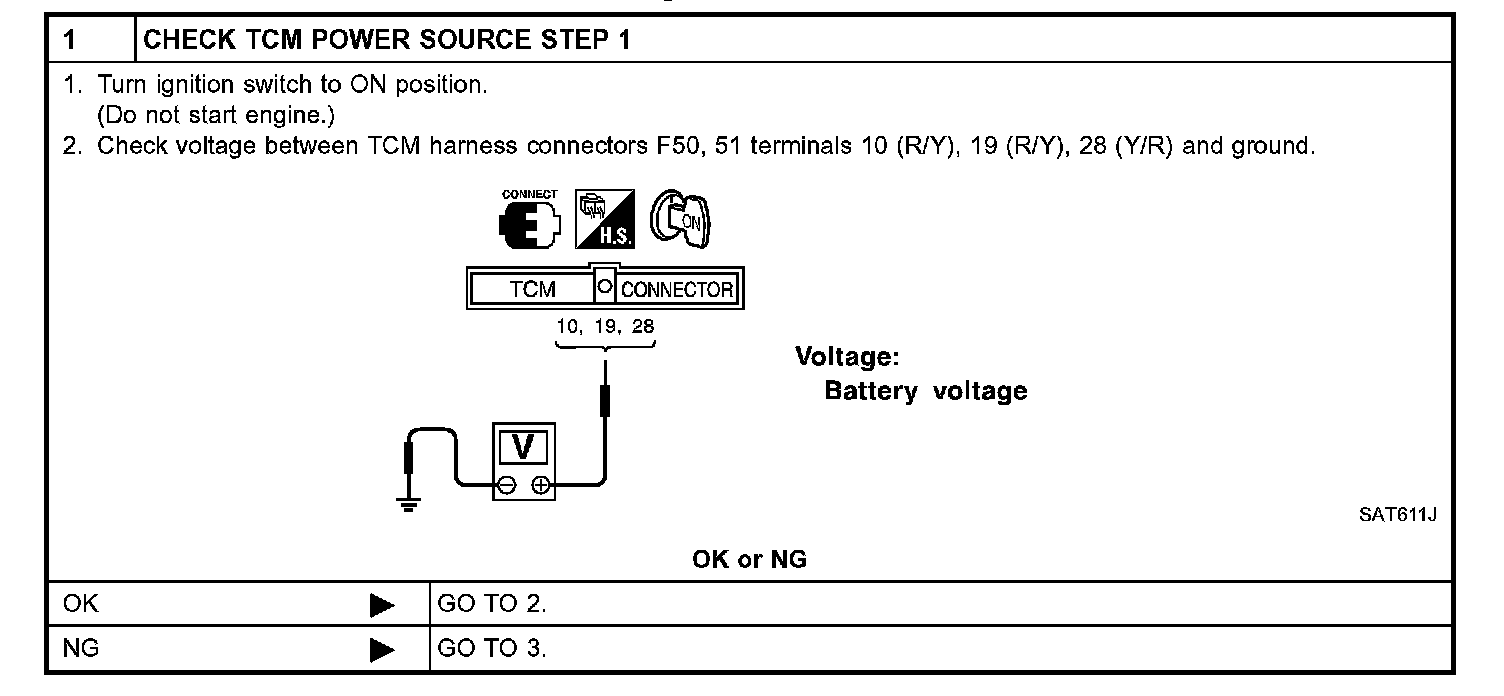

Test 1 Of 4:

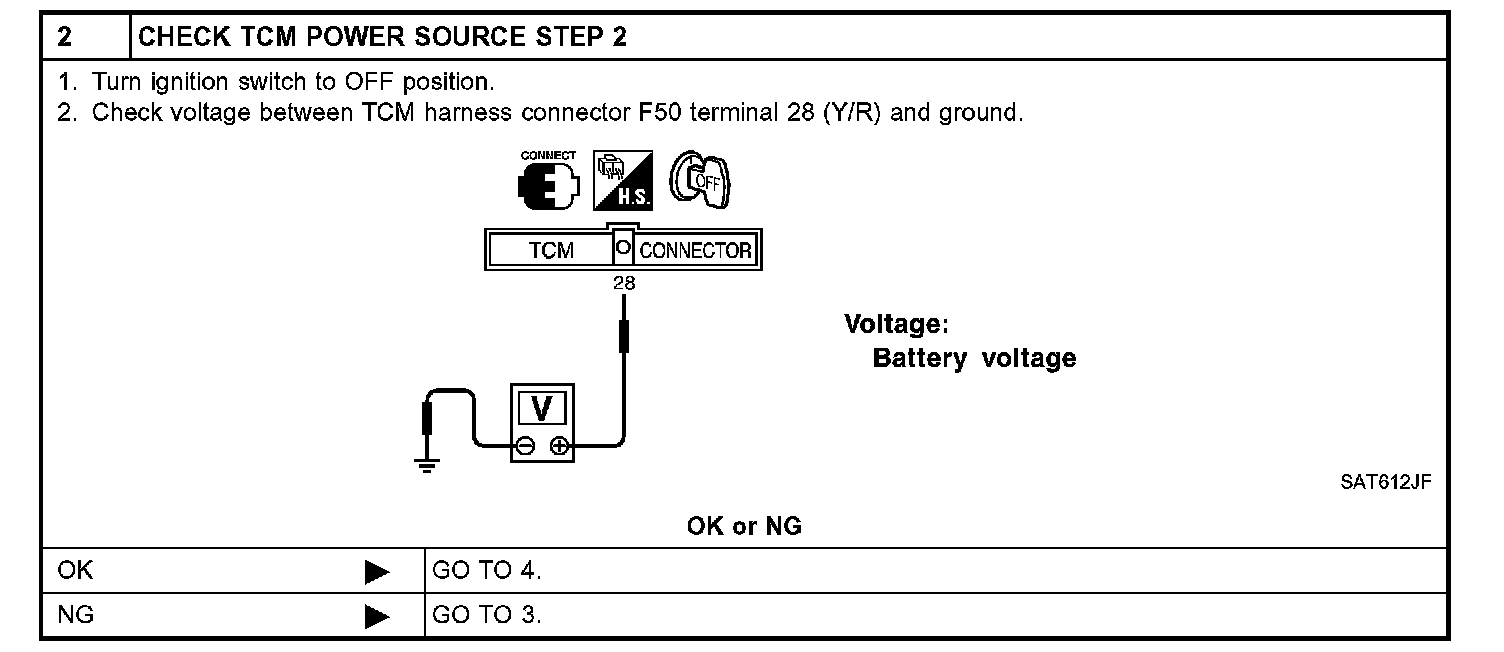

Test 2 Of 4:

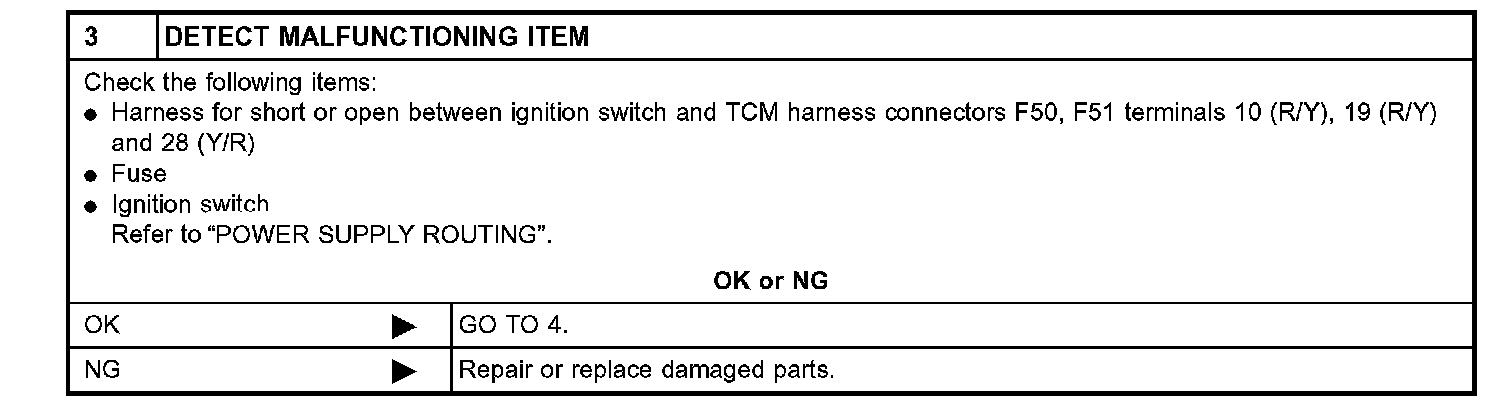

Test 3 Of 4:

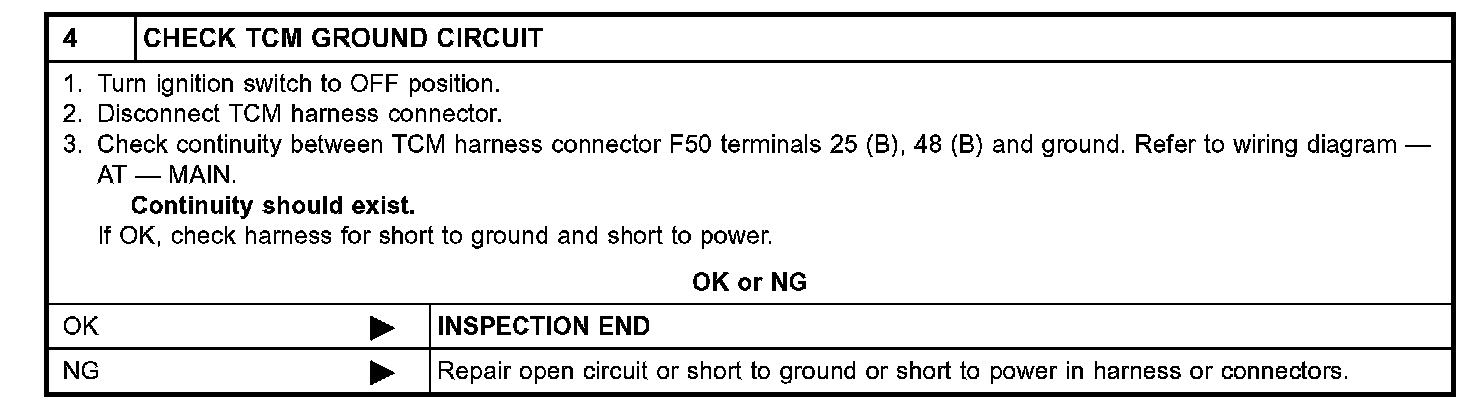

Test 4 Of 4:
Diagnostic Procedure
