Pinout Values and Diagnostic Parameters

TCM Terminals and Reference Value

PREPARATION

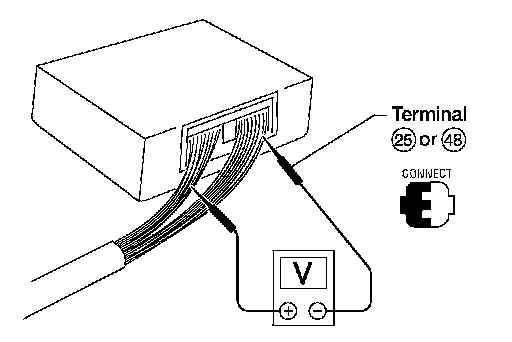

^ Measure voltage between each terminal and terminal 25 or 48 by following "TCM INSPECTION TABLE".

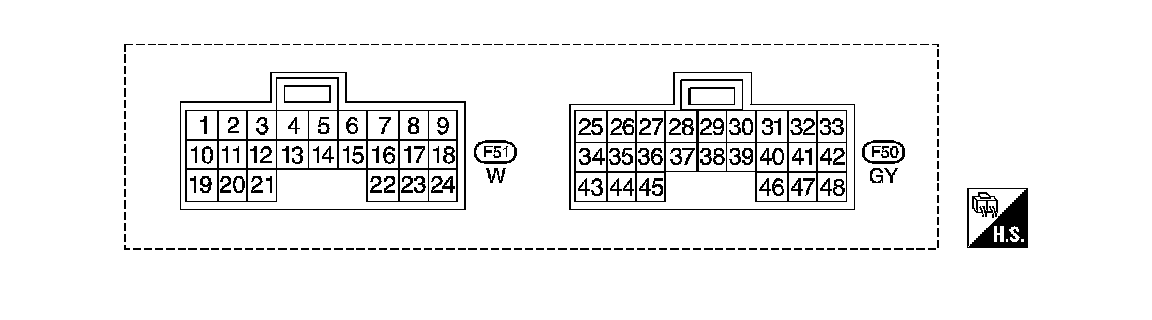

TCM HARNESS CONNECTOR TERMINAL LAYOUT

TCM INSPECTION TABLE

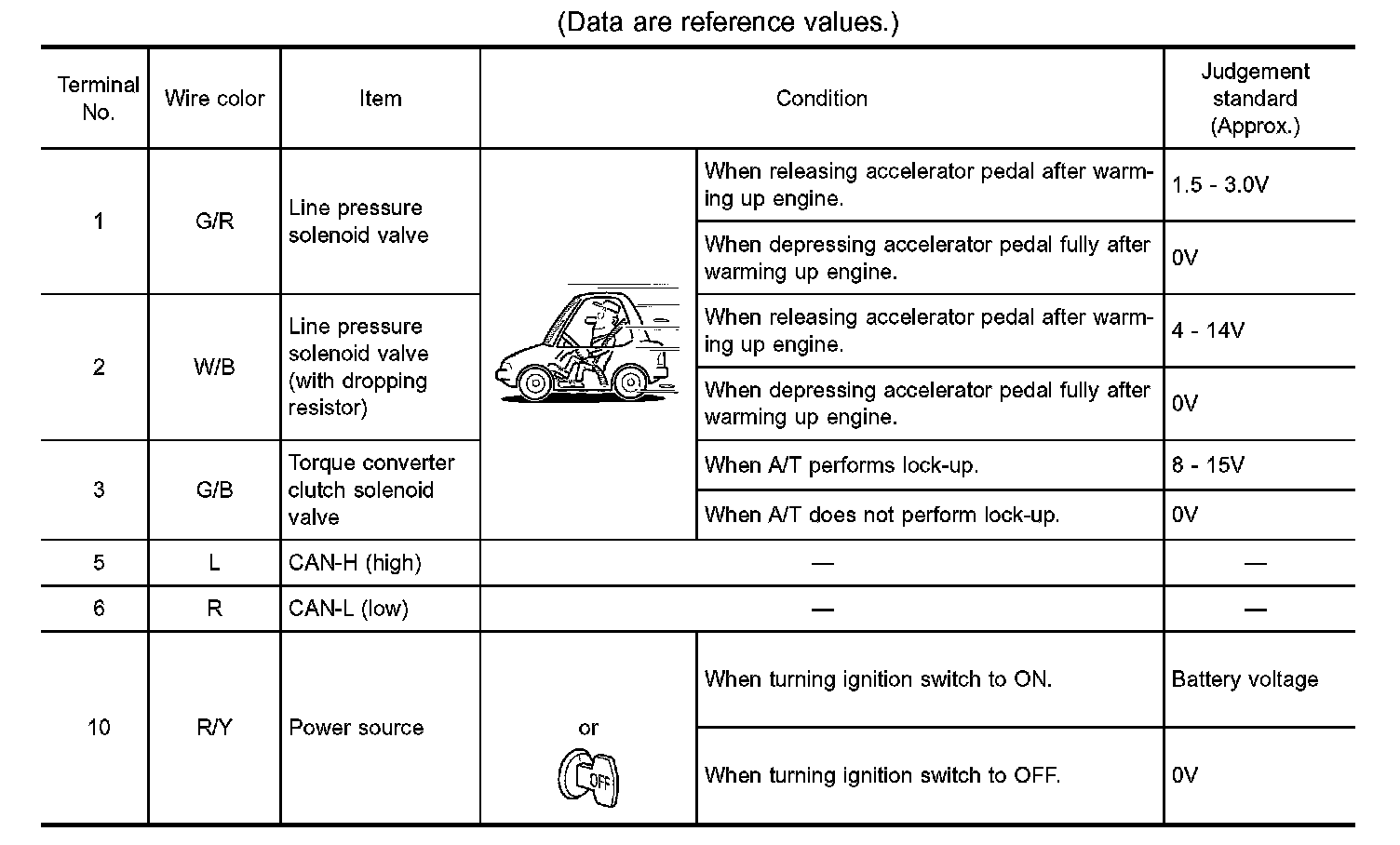

Table 1 Of 3:

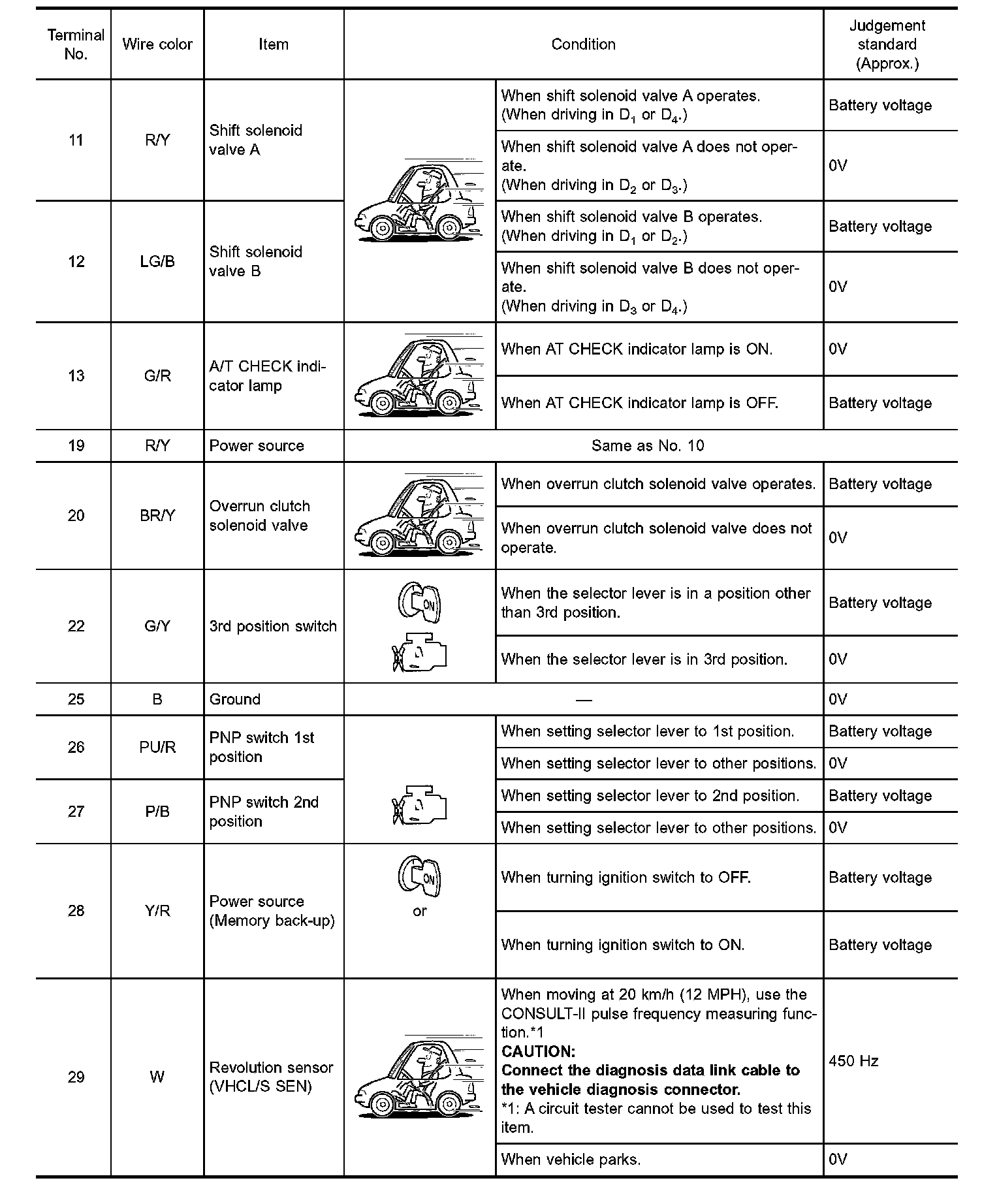

Table 2 Of 3:

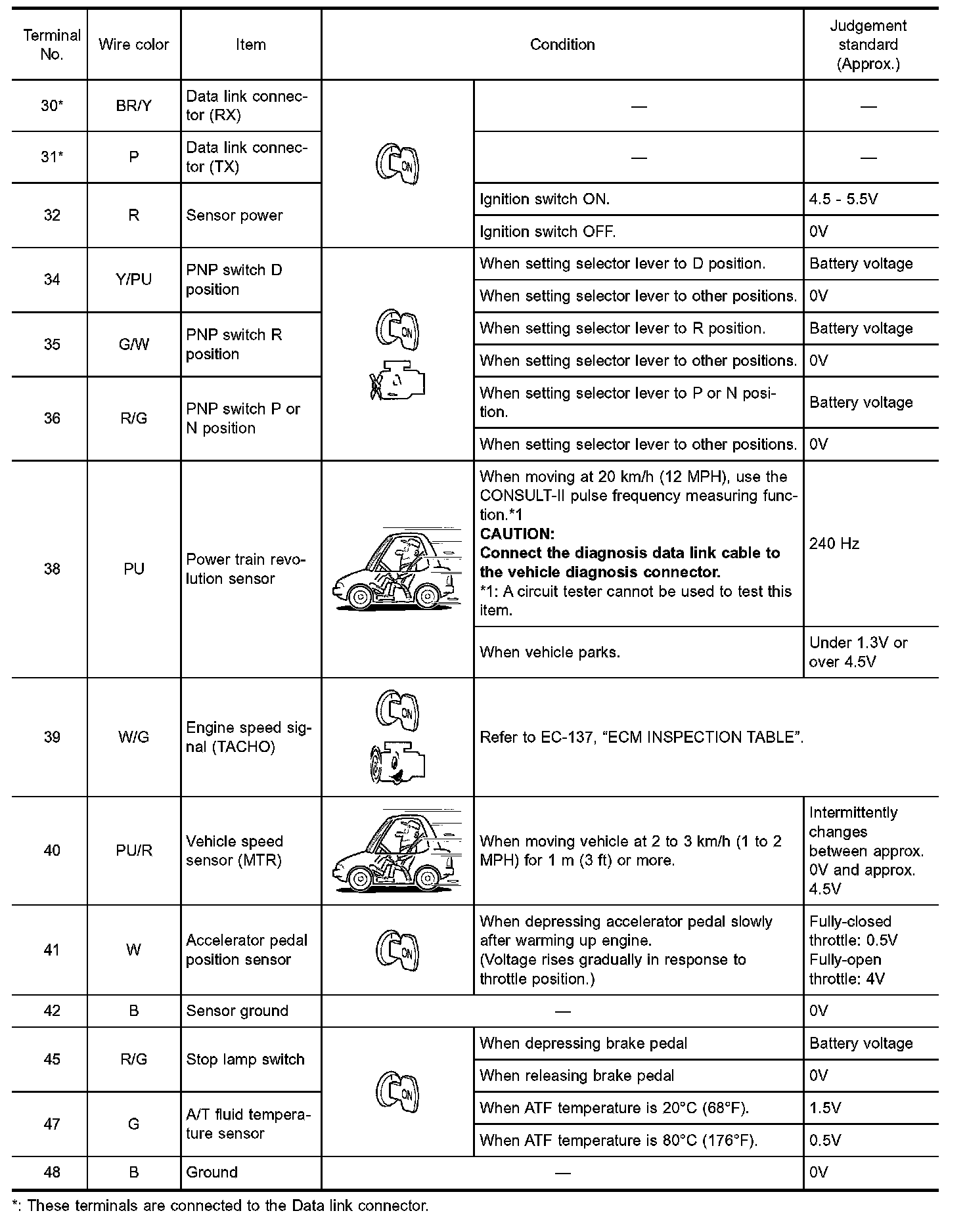

Table 3 Of 3:

(Data are reference values.)
