Cranking Signal
>>
Testing and Inspection
>>
Diagnostic Procedure
Diagnostic Procedure

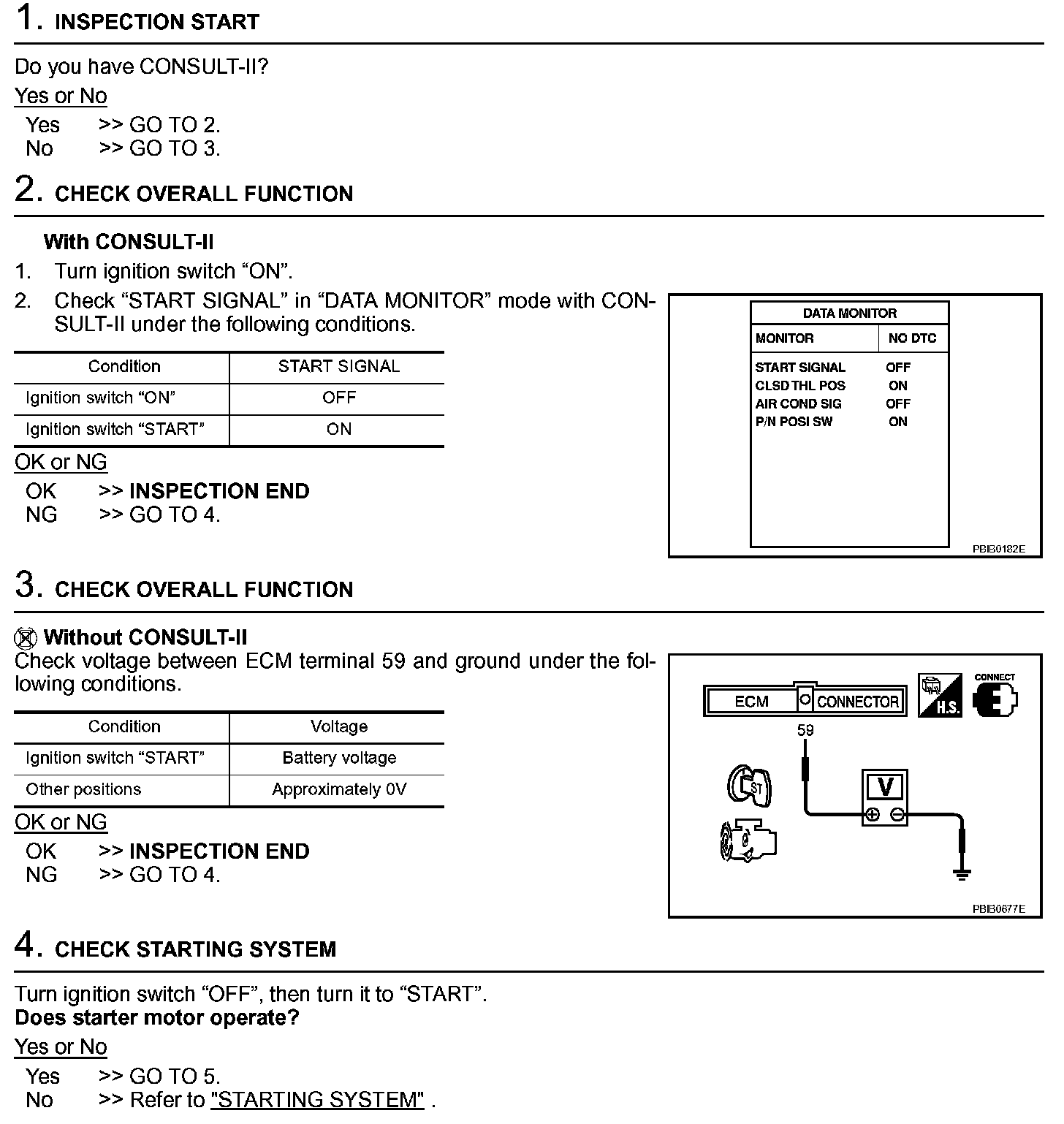

Diagnostic Procedure Step 1 - 4:

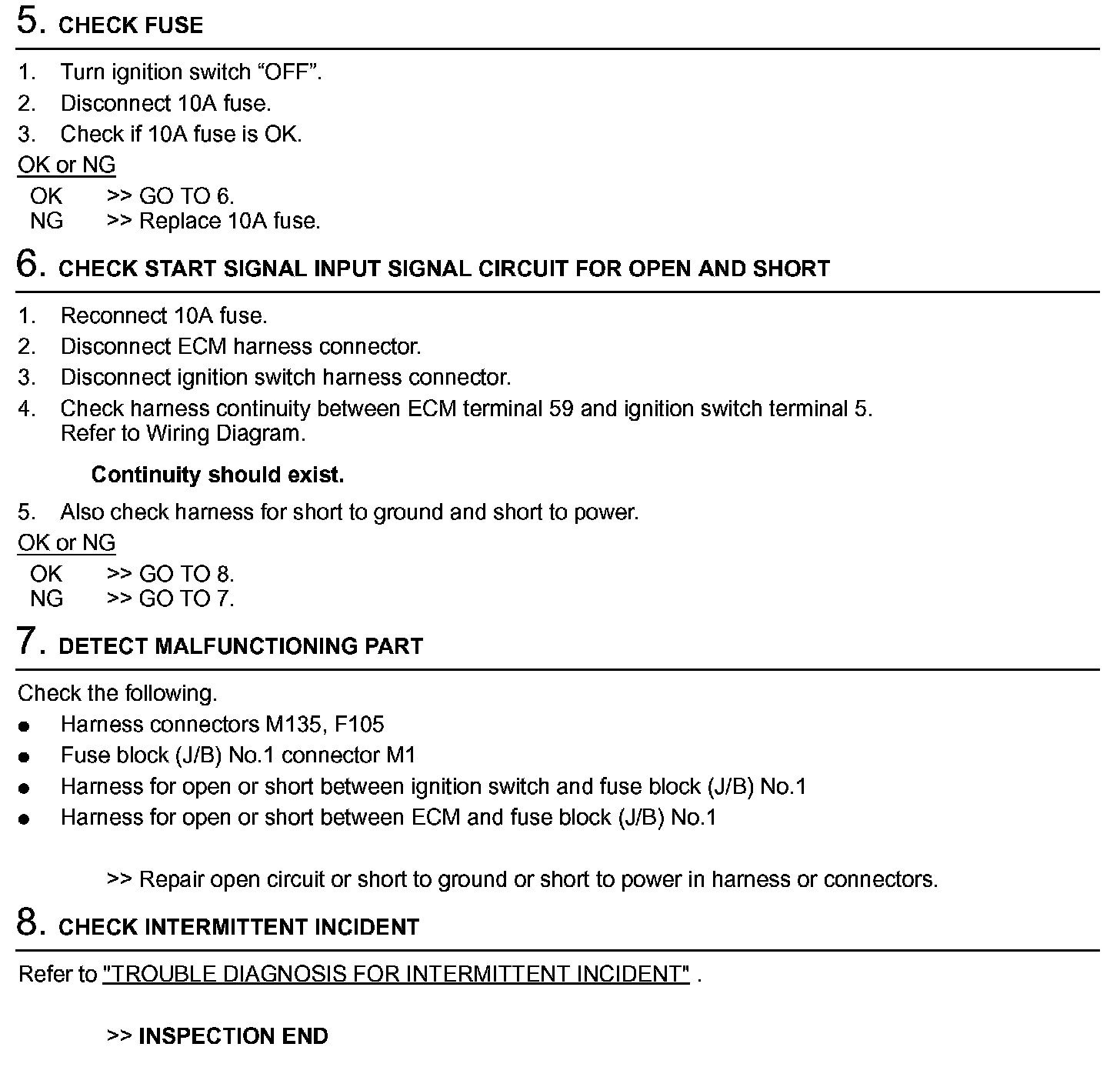

Diagnostic Procedure Step 5 - 8:
