Coolant: Testing and Inspection

Inspection

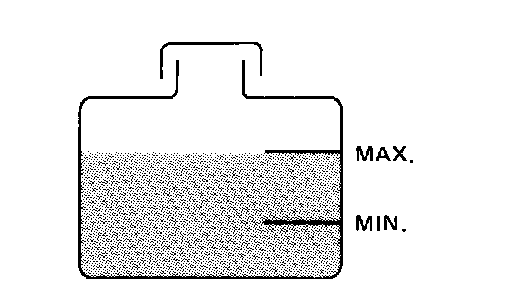

LEVEL CHECK





^ Check if the reservoir tank engine coolant level within MIN to MAX When engine is cool.
^ Adjust engine coolant if too much or too little.

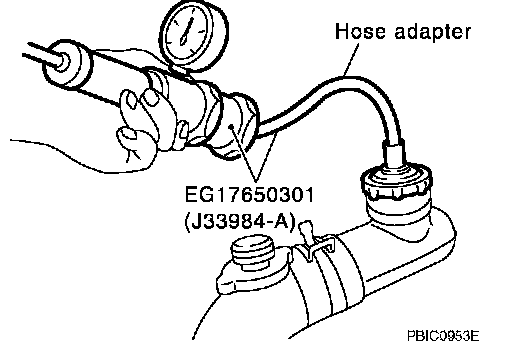

LEAK CHECK





To check for leakage, apply pressure to the cooling system with a tester.
Testing pressure: 157 kPa (1.6 kg/cm2, 23 psi)

WARNING: Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure engine coolant escaping from the radiator.

CAUTION: Higher pressure than specified may cause radiator damage.
