Removal and Installation of NAVI Control Unit

Removal and Installation of NAVI control unit




1. Remove center box assy.

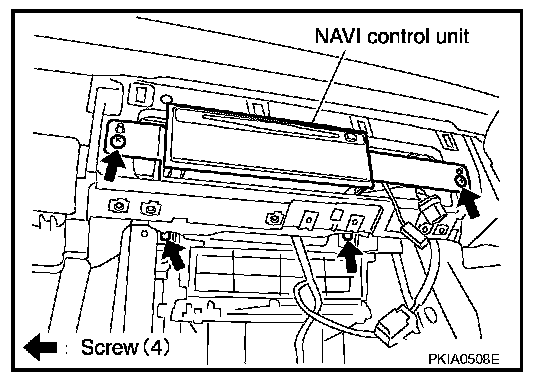

2. Remove screws (4), and remove NAVI control unit.

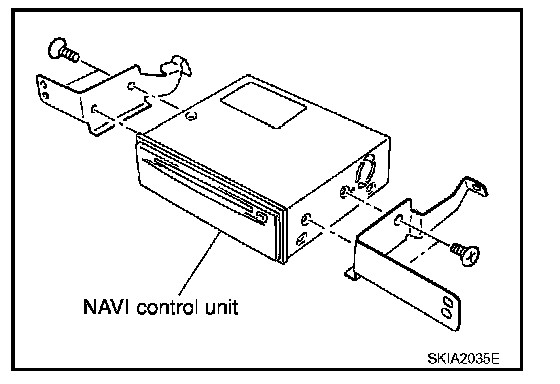

3. Remove screws(4), and remove bracket.
