Control Assembly: Service and Repair

Removal and Installation of Display and A/C Auto Amp
1. Remove the cluster lid finisher.
2. Remove the fixing screws, then remove the display and A/C auto amp.


INSTALLATION
Installation is basically the reverse order of removal.








Removal and Installation For A/C and Audio Controller
1. Remove audio unit and display unit assembly (with navigation system) from cluster lid C.

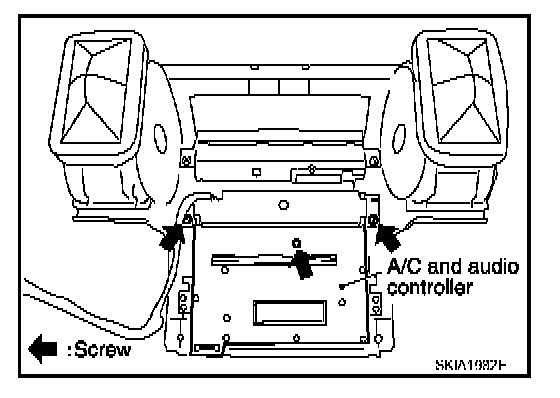

2. Remove screws (3) and remove A/C and audio controller.


INSTALLATION
Install in the reverse order of removal.

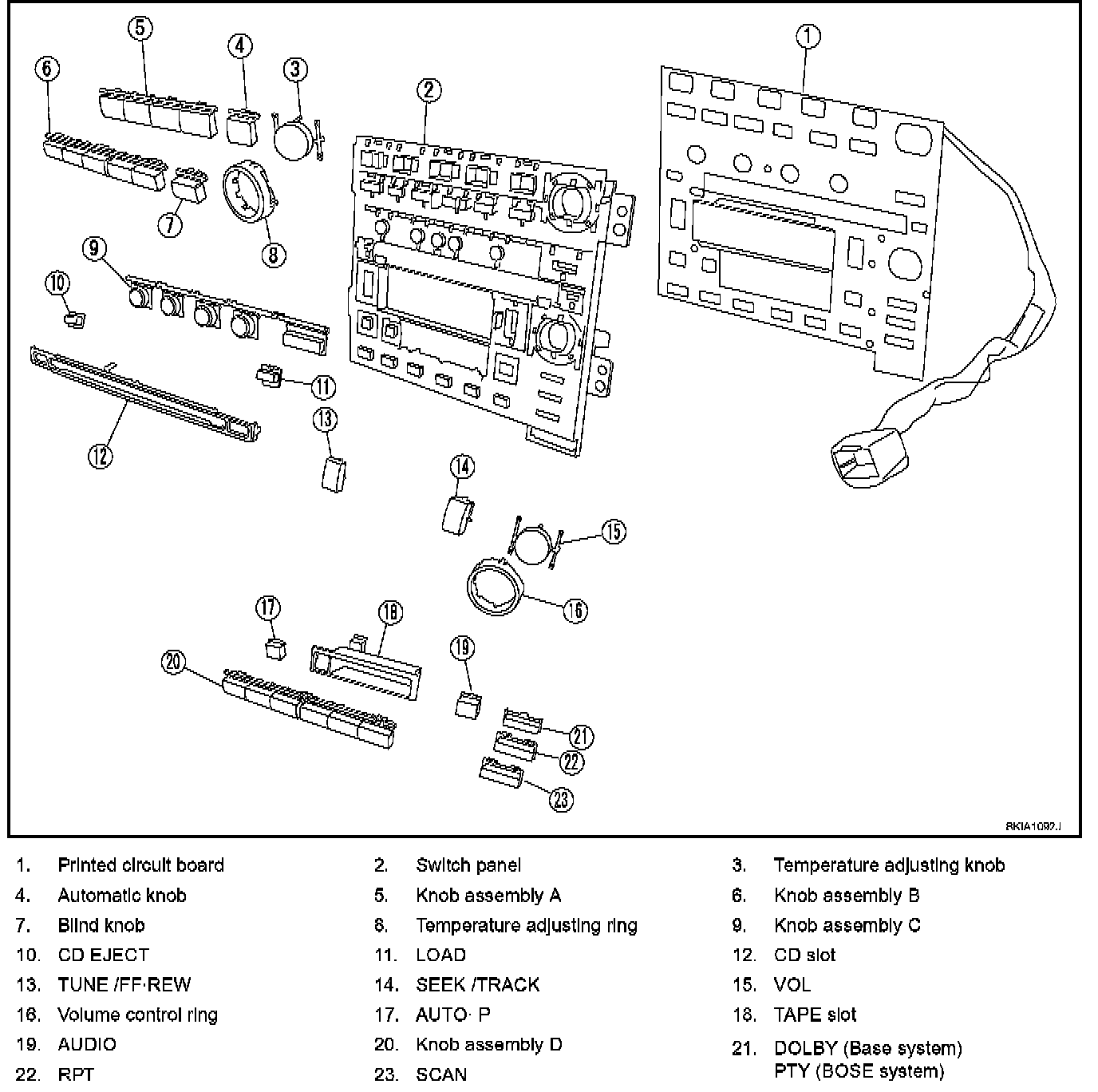

Disassembly And Assembly Of A/C And Audio Controller:

Disassembly and Assembly of A/C and Audio Controller

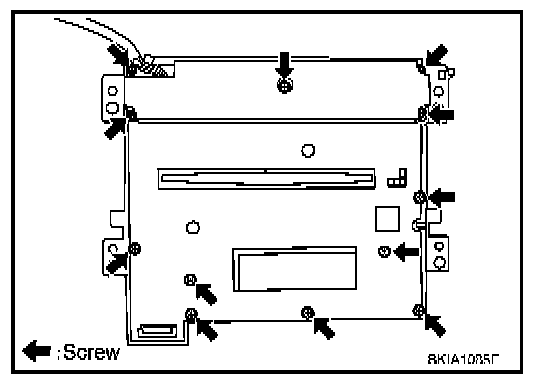

1. Remove screws (12) and remove printed circuit board.

CAUTION: Be sure not to damage printed circuit board by exposure

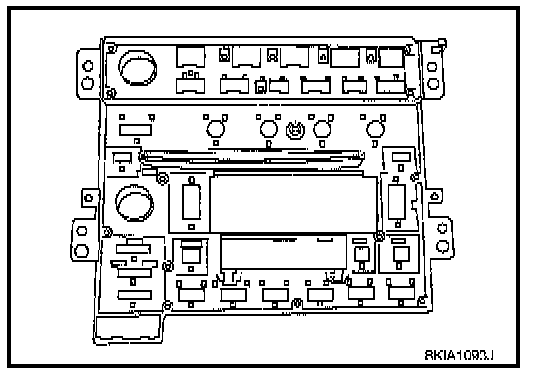

2. Remove switches from back surface of switch panel using.
