Oil Pan, Engine

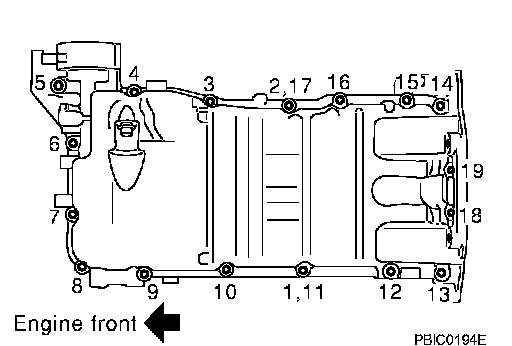

Tighten bolts in numerical order as shown.
No.11 and 17 indicate double tightening of bolts 1 and 2.
M6 x 30 mm (1.18 inch) No. 18, 19
M8 x 100 mm (3.97 inch No. 5, 9
M8 x 45 mm (1.77 inch) Except the above
