General Specifications

SERVICE DATA AND SPECIFICATIONS (SDS)





General Specifications








Oil pan to transmission case.

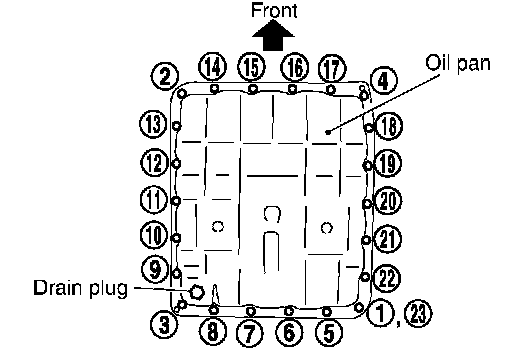

Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure.
7.9 Nm (0.81 kg-m, 70 inch lbs.)

CAUTION: Do not reuse oil pan mounting bolts.
