Cabin Temperature Sensor / Switch: Service and Repair

IN-VEHICLE SENSOR

Removal and Installation

REMOVAL

1. Remove instrument lower driver panel.

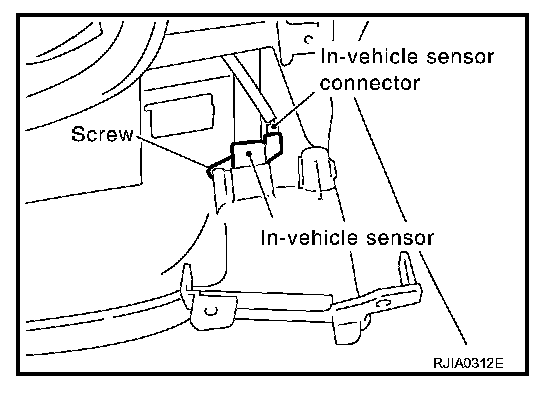

2. Disconnect in-vehicle sensor connector and aspirator duct.
3. Remove mounting screw, and then remove in-vehicle sensor.

INSTALLATION
Installation is basically the reverse order of removal.
