Cabin Temperature Sensor / Switch: Testing and Inspection

In-vehicle Sensor Circuit

COMPONENT INSPECTION







In-vehicle Sensor

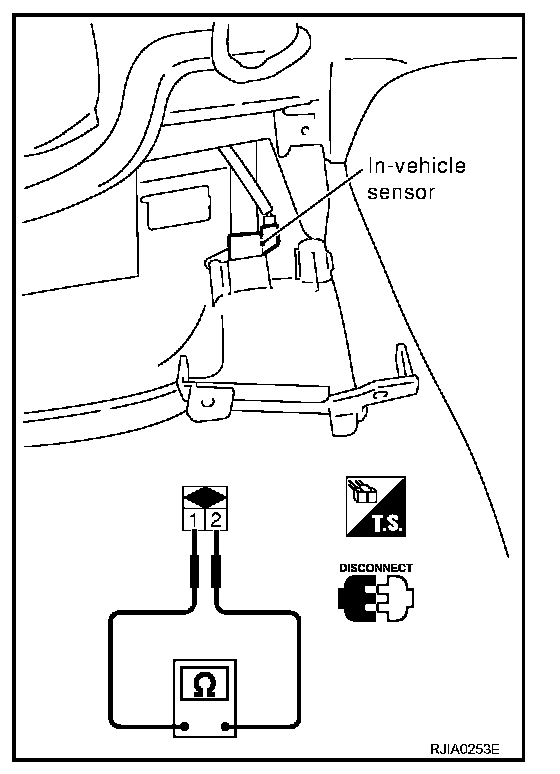

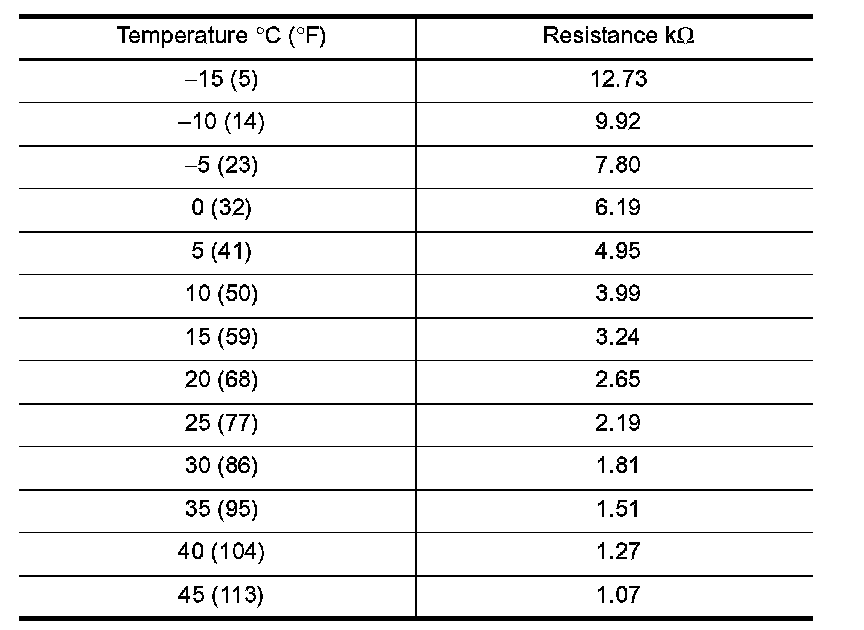

After disconnecting in-vehicle sensor connector M68, measure resistance between terminals 1 and 2 at sensor side, using the table.

If NG, replace in-vehicle sensor.
