Heater Core: Service and Repair

HEATER CORE

Removal and Installation

REMOVAL
1. Remove heater & cooling unit. Refer to "HEATER & COOLING UNIT ASSEMBLY". Service and Repair

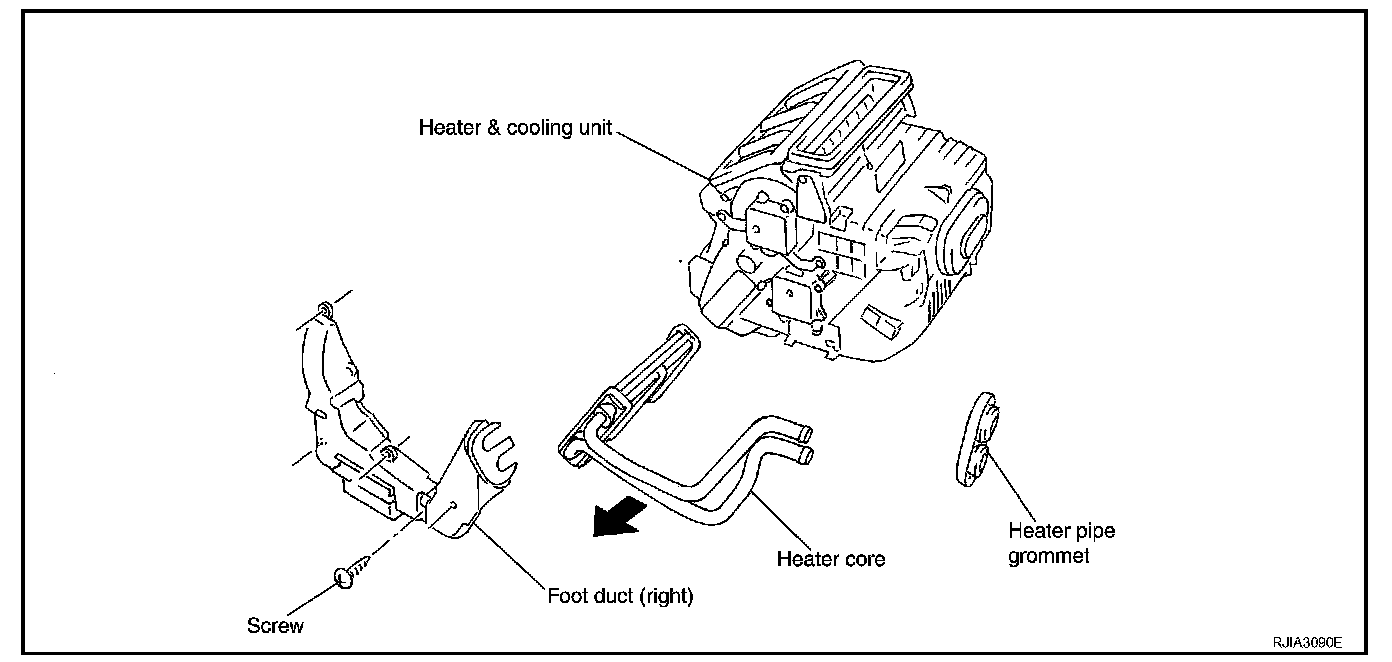

2. Remove mounting screw, and then remove foot duct (right).
3. Remove heater core from heater & cooling unit.

INSTALLATION
Installation is basically the reverse order of removal.
