Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2005
>>
Q45 V8-4.5L (VK45DE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Testing and Inspection
>>
Headlamp Aiming Control (Auto)
>>
Control Module Pinout Values
Control Module Pinout Values

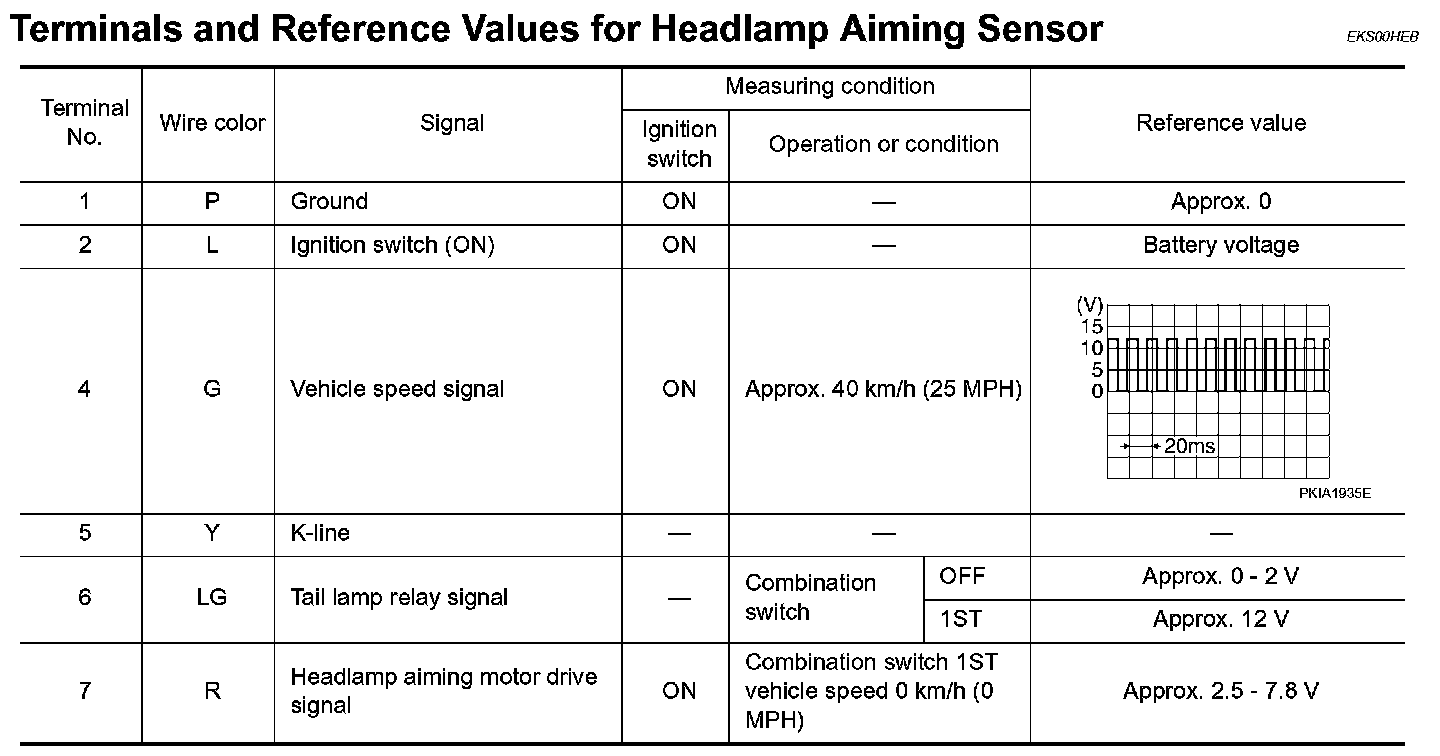

Terminals And Reference Values For Headlamp Aiming Sensor:
