Ignition Coil: Service and Repair

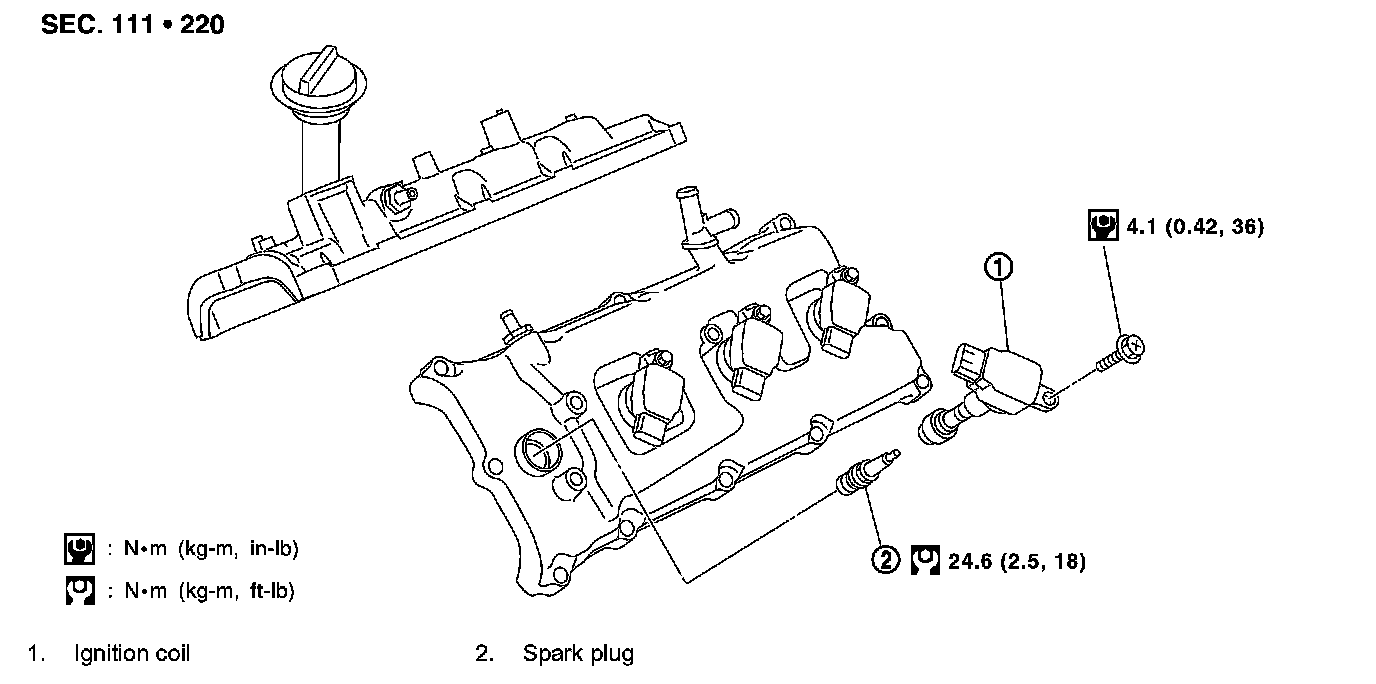

IGNITION COIL

Removal and Installation
REMOVAL
1. Remove engine cover (with power tool), air duct (inlet), air cleaner cover and battery cover. Refer to "Removal and Installation".
2. Remove air duct and air cleaner case assembly. Refer to "AIR CLEANER AND AIR DUCT".
3. Move heater hose and its peripheral parts aside. (No. 7 cylinder)
4. Disconnect harness connector from ignition coil.
5. Remove ignition coil.

CAUTION: Do not shock it.

INSTALLATION
Install in the reverse order of removal.
