Pinout Values and Diagnostic Parameters

TCM Input/Output Signal Reference Values

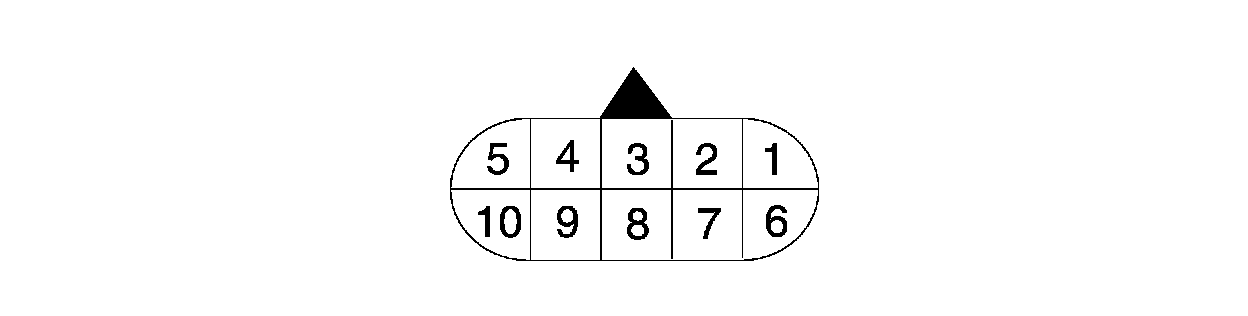

A/T ASSEMBLY HARNESS CONNECTOR TERMINAL LAYOUT

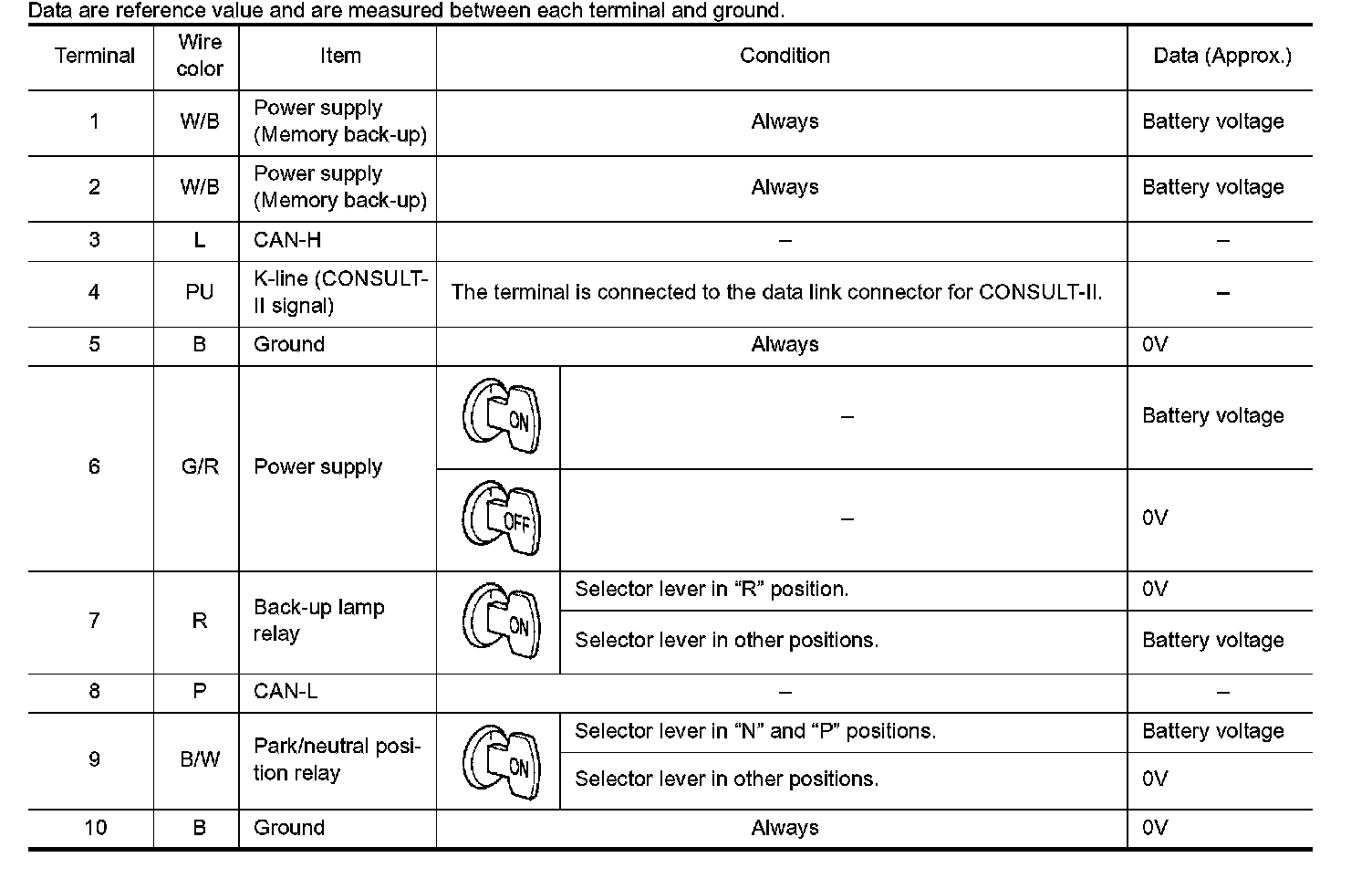

TCM INSPECTION TABLE

Data are reference value and are measured between each terminal and ground.
