Front Fender Liner: Service and Repair

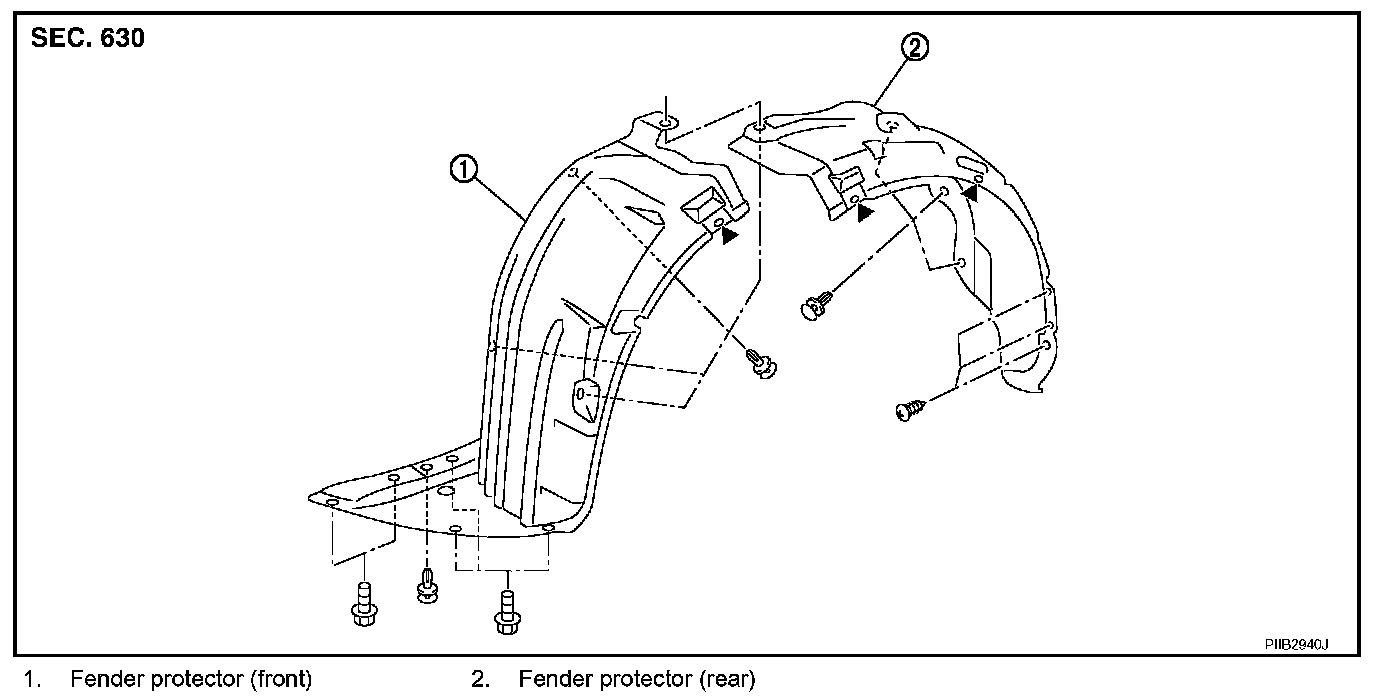

FENDER PROTECTOR




Removal and Installation

REMOVAL
1. Remove rear end screw of fender protector (rear).
2. Remove clips of fender protector (rear).
3. Remove plastic clamp from wheelhouse arches, and then remove fender protector (rear) from wheel house.
4. Remove screws of front under cover.
5. Remove front end screw of fender protector (front).
6. Remove front end clip of fender protector (front).
7. Remove fender protector (front) from wheel house.

INSTALLATION
Install in the reverse order of removal.

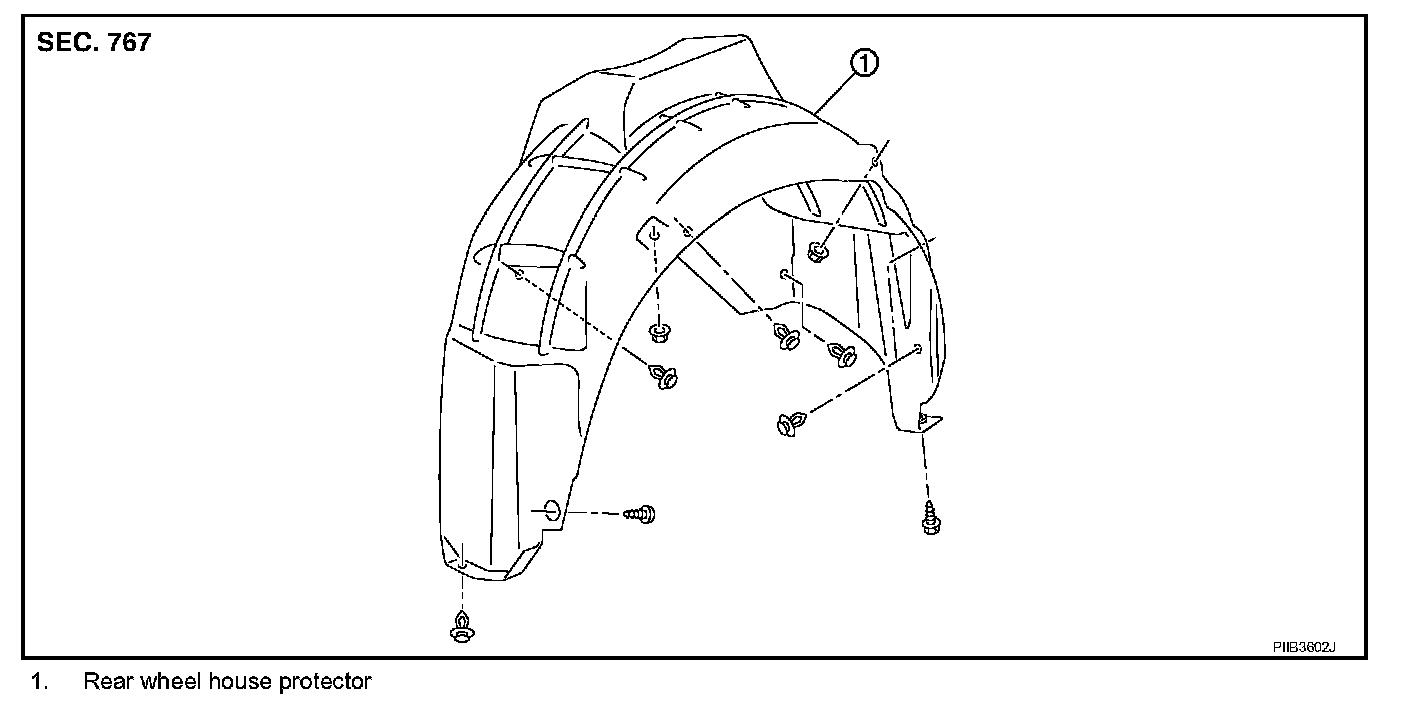

REAR WHEEL HOUSE PROTECTOR




REMOVAL AND INSTALLATION

REMOVAL
1. Remove screw of rear portion wheel house protector. (rear bumper side)
2. Remove screw of front portion wheel house protector. (center mud guard side)
3. Remove clips of wheel house protector.
4. Remove resin nuts of arch portion wheel house protector and remove rear wheel house protector.

INSTALLATION
Install in reverse order of removal.
