Home >> Infiniti >> 2007 >> G35 Coupe V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Steering Column Control Module >> Locations

Steering Column Control Module: Locations

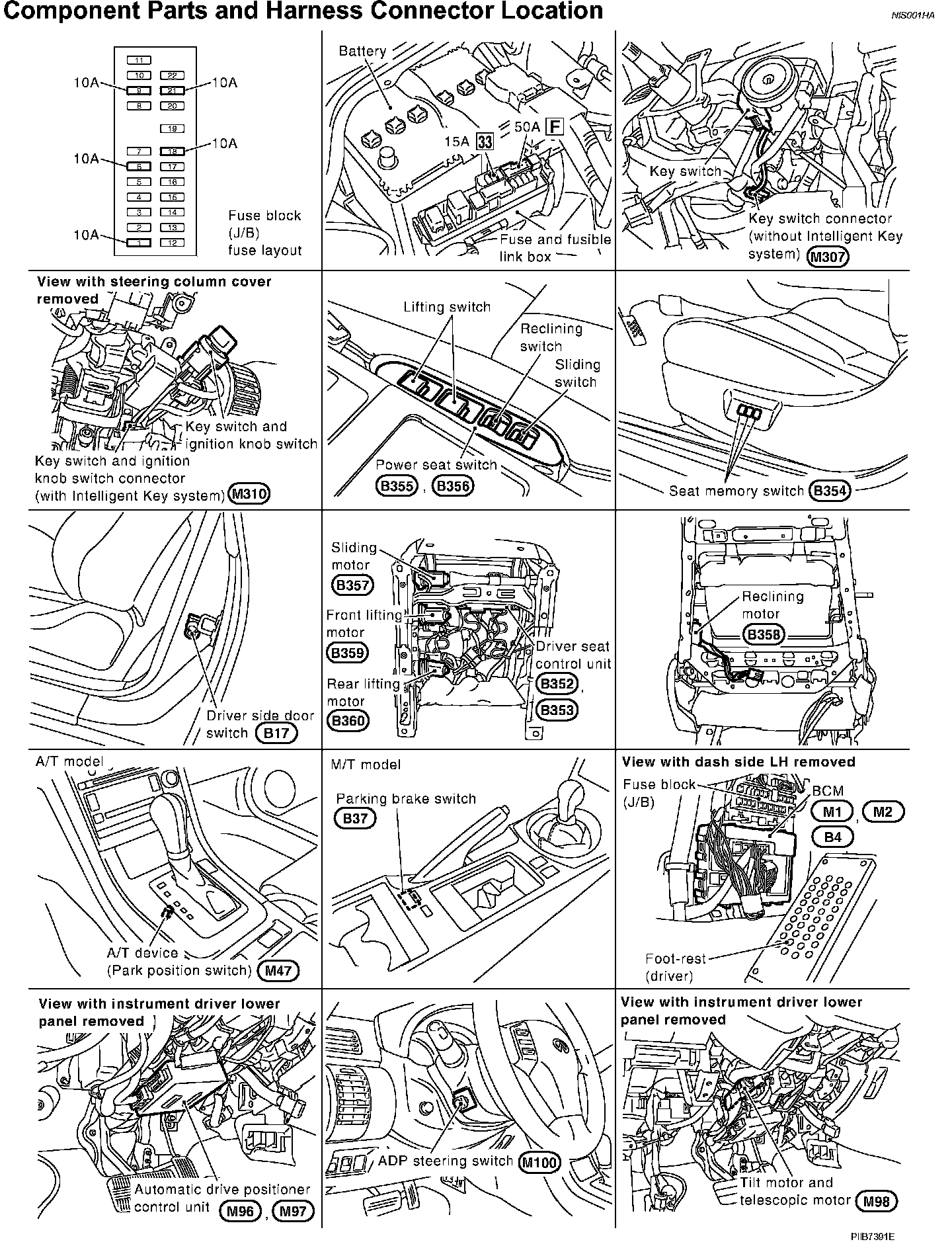

Component Parts And Harness Connector Location:

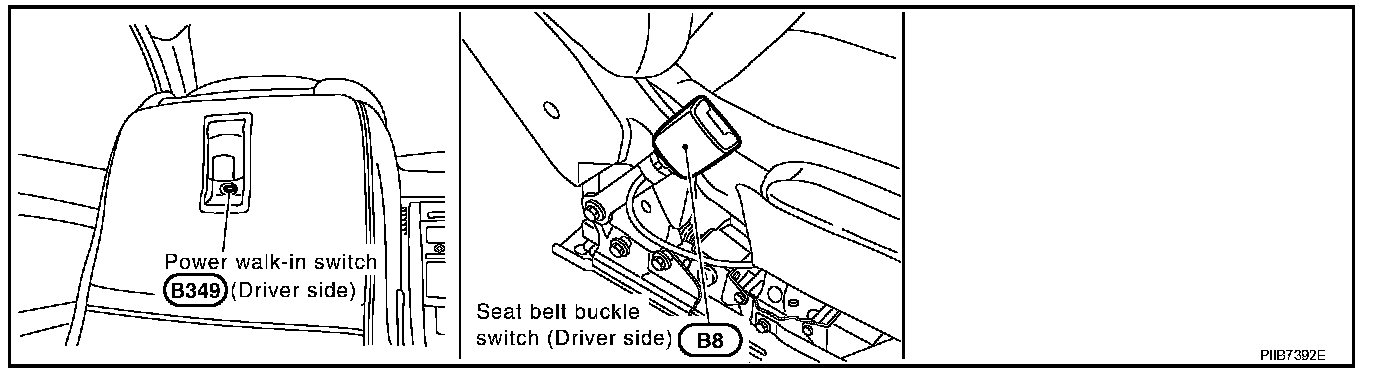

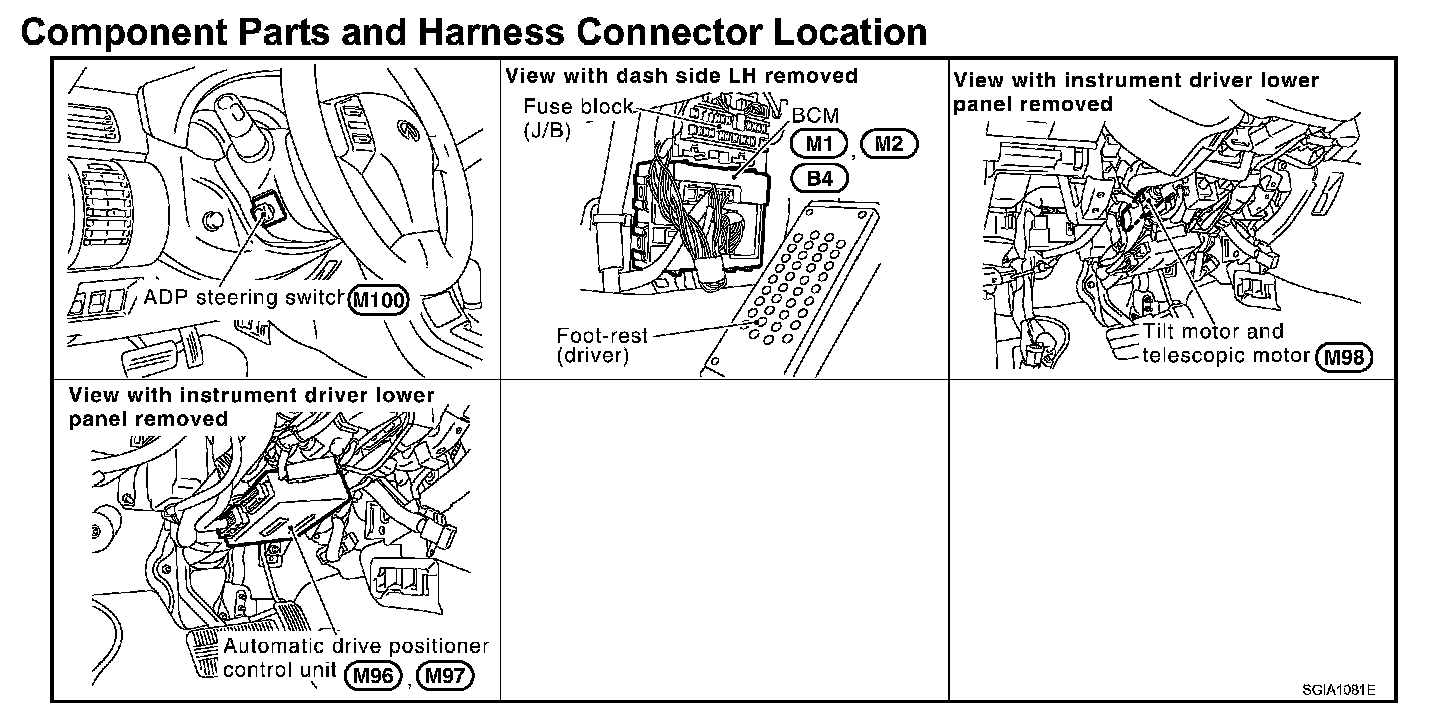

Component Parts and Harness Connector Location:
