Home >> Infiniti >> 2007 >> G35 Sedan V6-3.5L (VQ35HR) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> Steering Control Module >> Without 4WAS

Without 4WAS

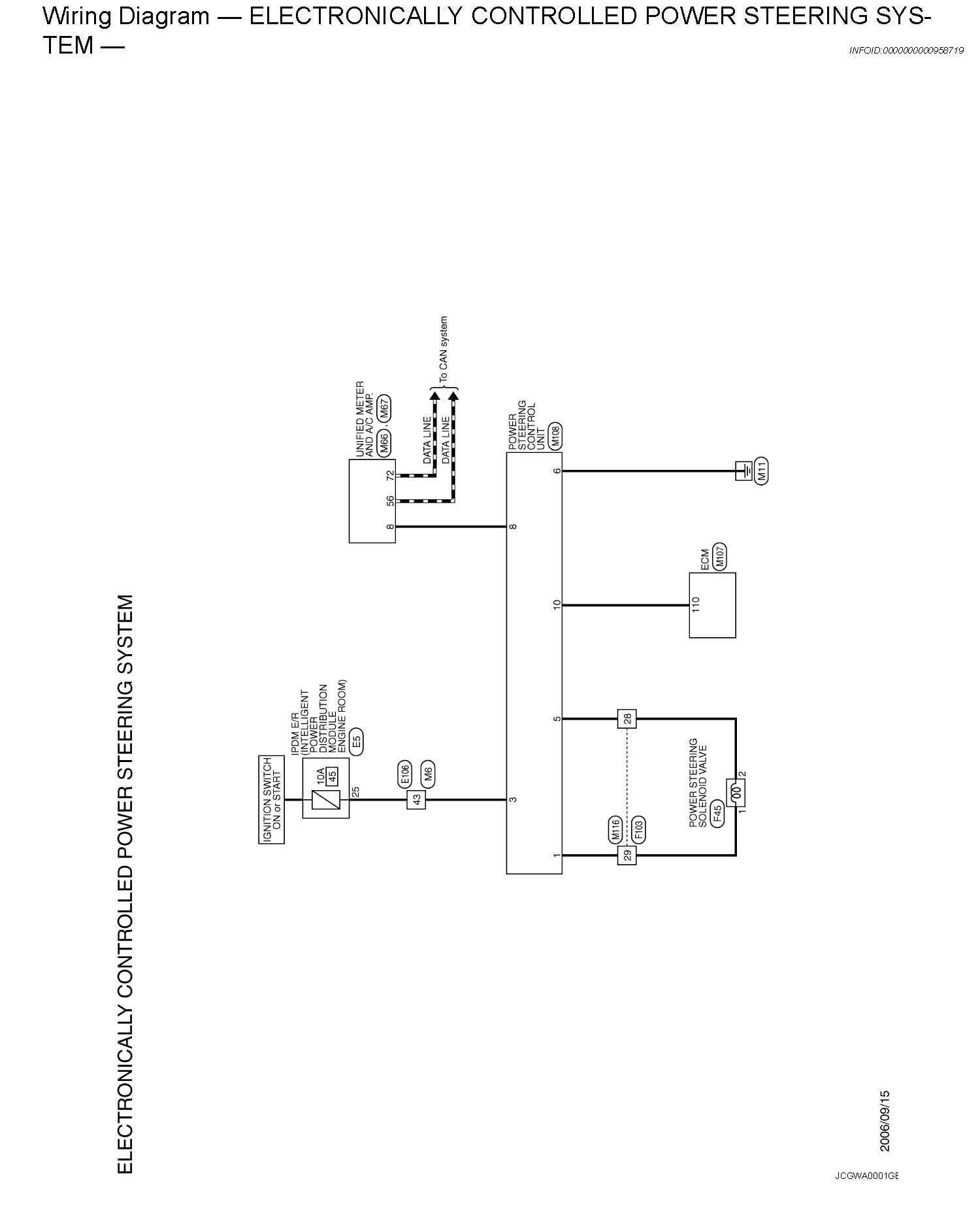

Electronically Controlled Power Steering System:
