Service Limits & General Specifications

^ Service parts apply only to grade "0".
A: Piston grade number
B: Front mark
C: Piston pin grade number

Connecting Rod Bearing

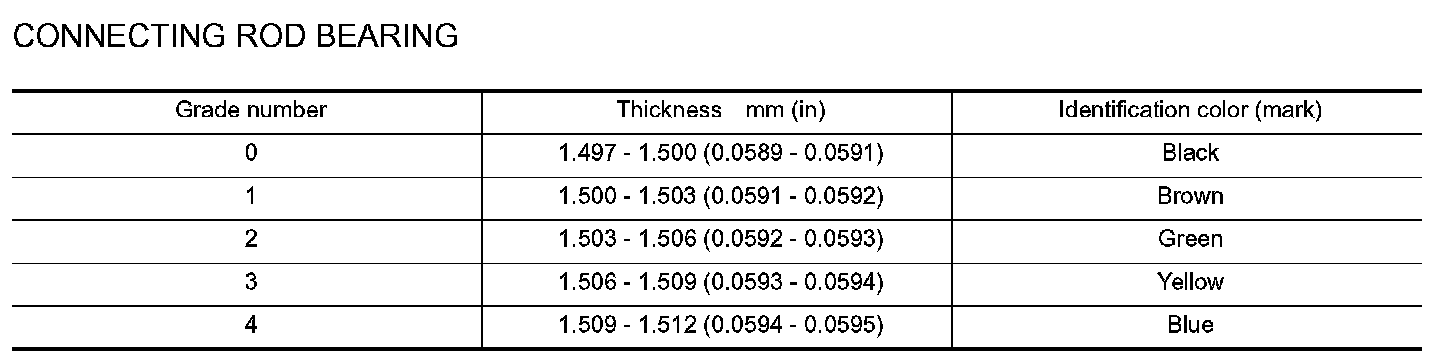

CONNECTING ROD BEARING

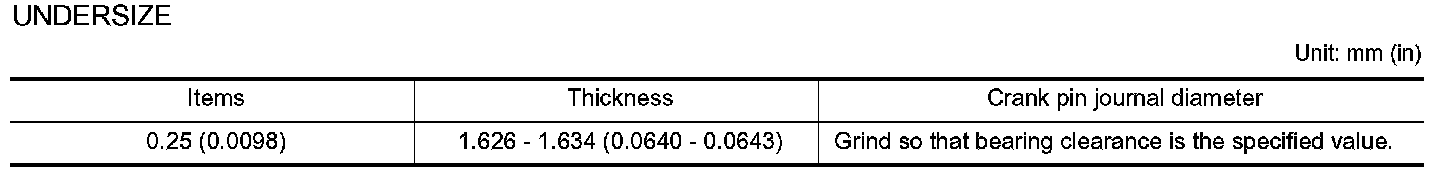

UNDERSIZE

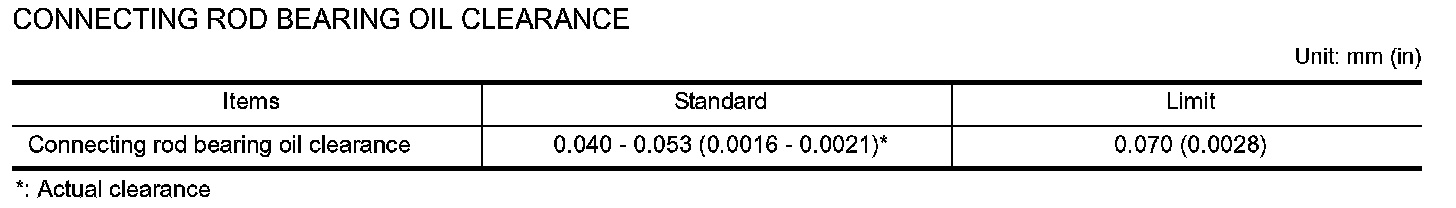

CONNECTING ROD BEARING OIL CLEARANCE
