Without 4WAS

POWER STEERING CONTROL UNIT

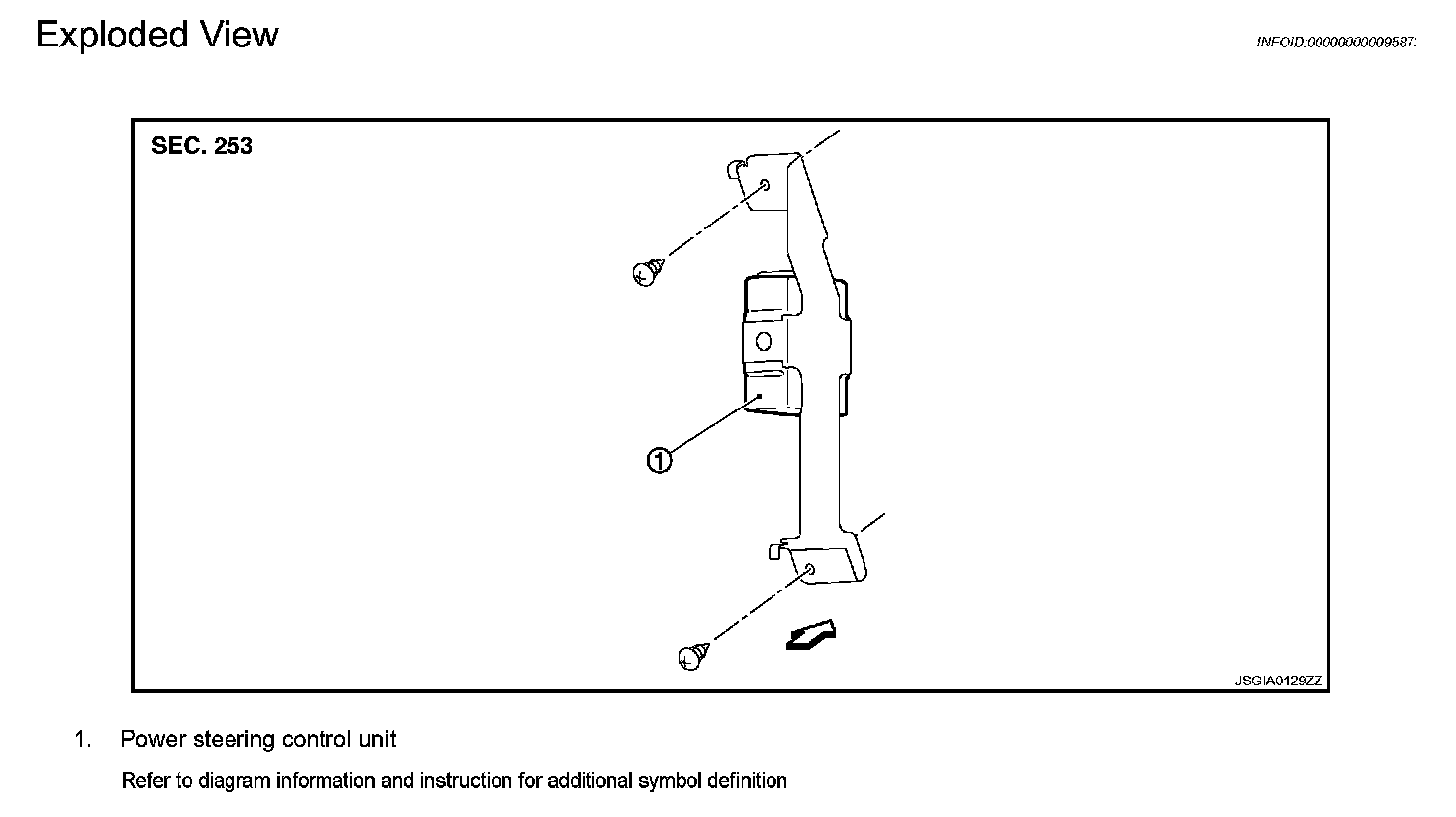

Exploded View STC-24:

Removal and Installation

REMOVAL
1. Remove the glove box assembly.





2. Remove the power steering control unit screws.
3. Remove the power steering control unit (1).
4. Disconnect power steering control unit connector.

INSTALLATION
Install in the reverse order of removal.
