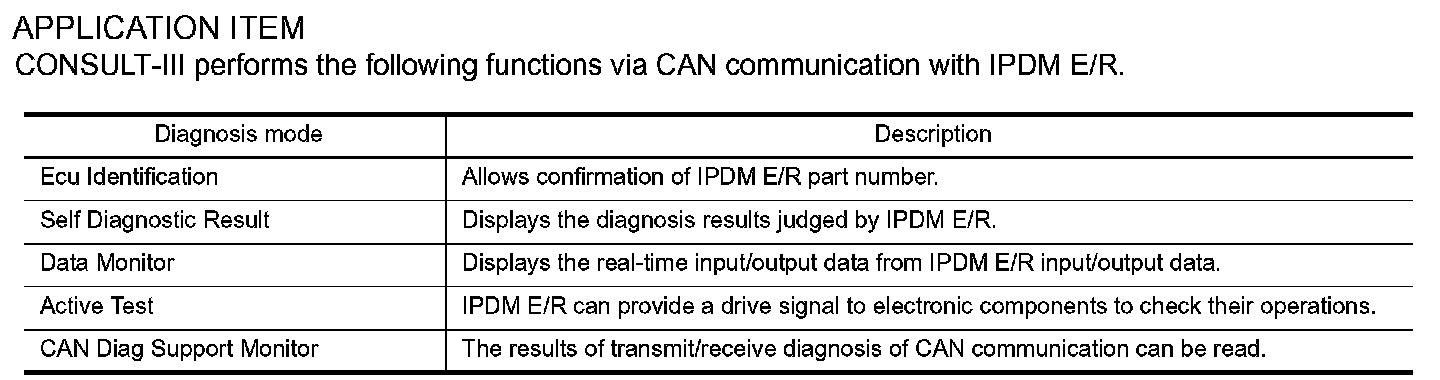

CONSULT-III Function (IPDM E/R)

CONSULT-III Function (IPDM E/R)






SELF DIAGNOSTIC RESULT
Refer to PCS-32, "DTC Index". Power Distribution Module

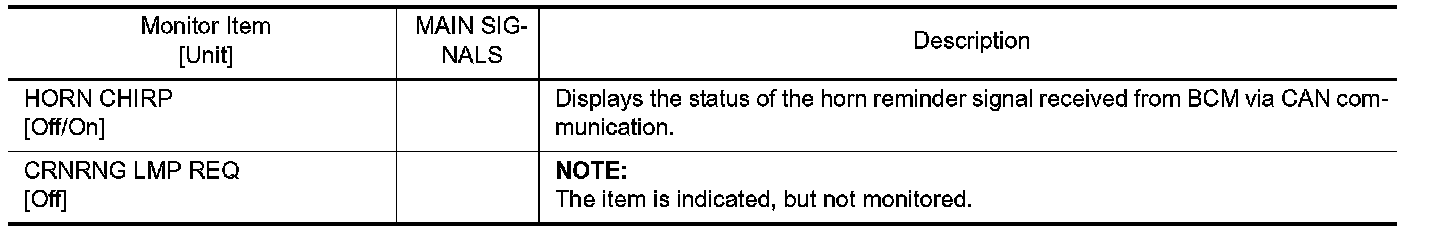

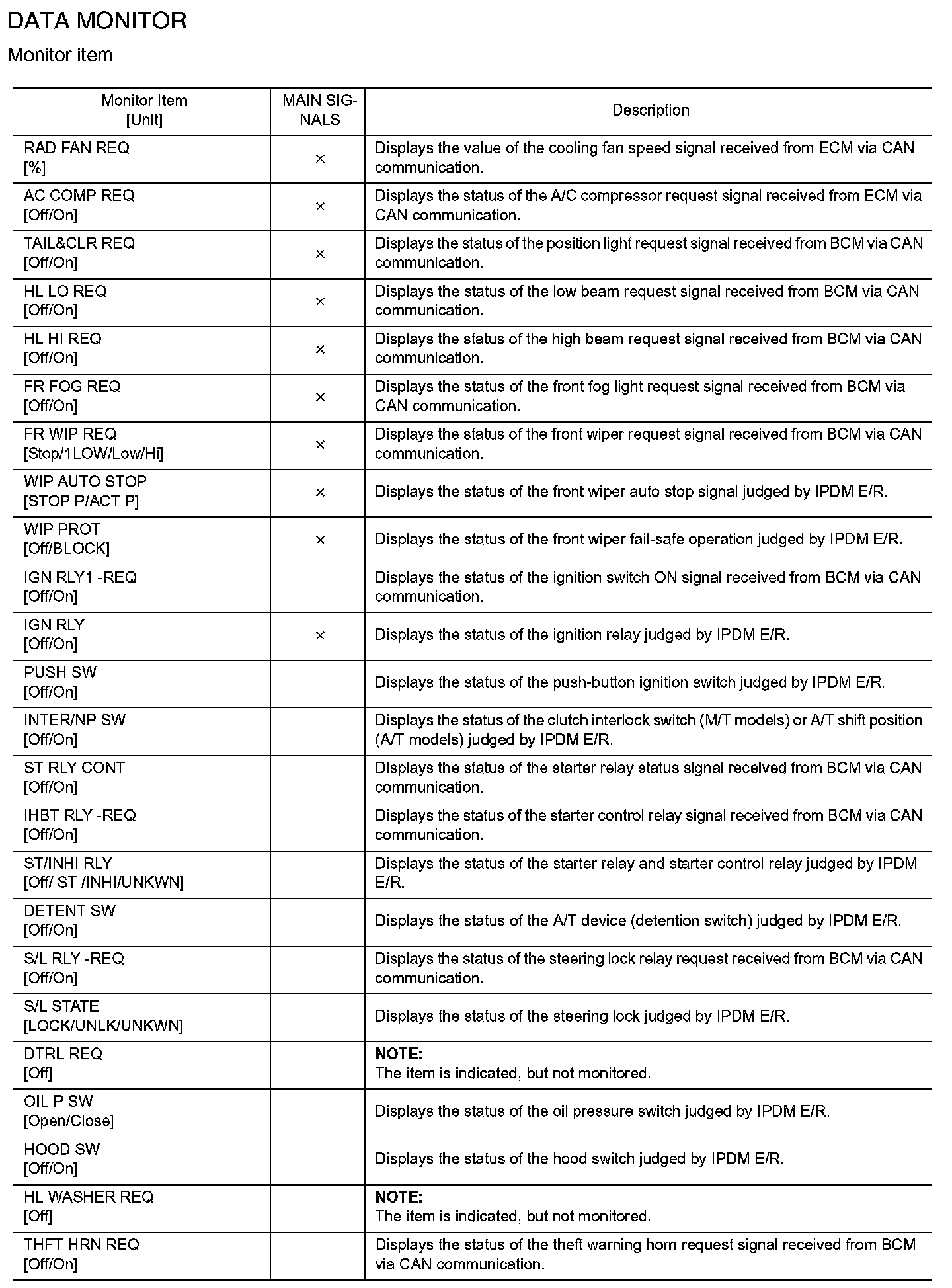

DATA MONITOR

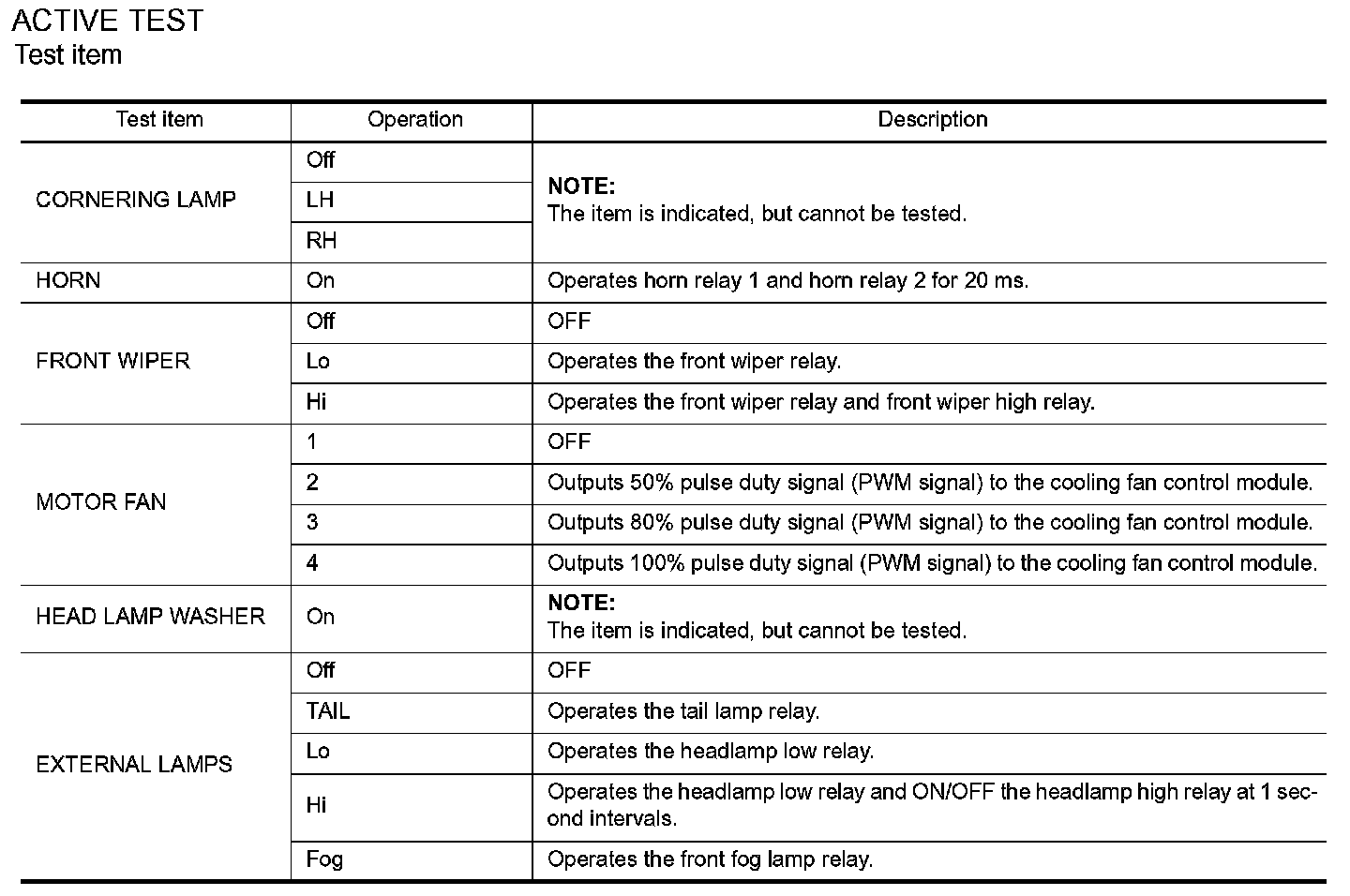

ACTIVE TEST
