Intake Manifold

Intake Manifold

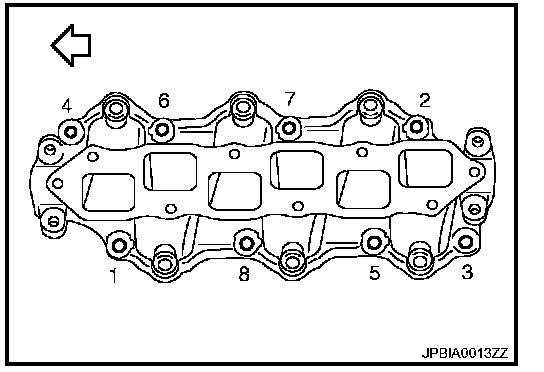

Tighten all mounting bolts and nuts to the specified torque in two or more steps in numerical order as shown in the figure.
<---: Engine front

CAUTION:
Install intake manifold with the marks (put on the intake manifold and the cylinder head before removal) aligned.
Tighten mounting bolts and nuts from the outside of manifold to the inside.

1st step:
Torque 7.4 Nm (0.75 kg-m, 5 ft-lb)
2nd step and after:
Torque 25.5 Nm (2.6 kg-m, 19 ft-lb)
