Control Module, Transfer Case
Wiring Diagram - AWD SYSTEM -Click here to view the eWD.

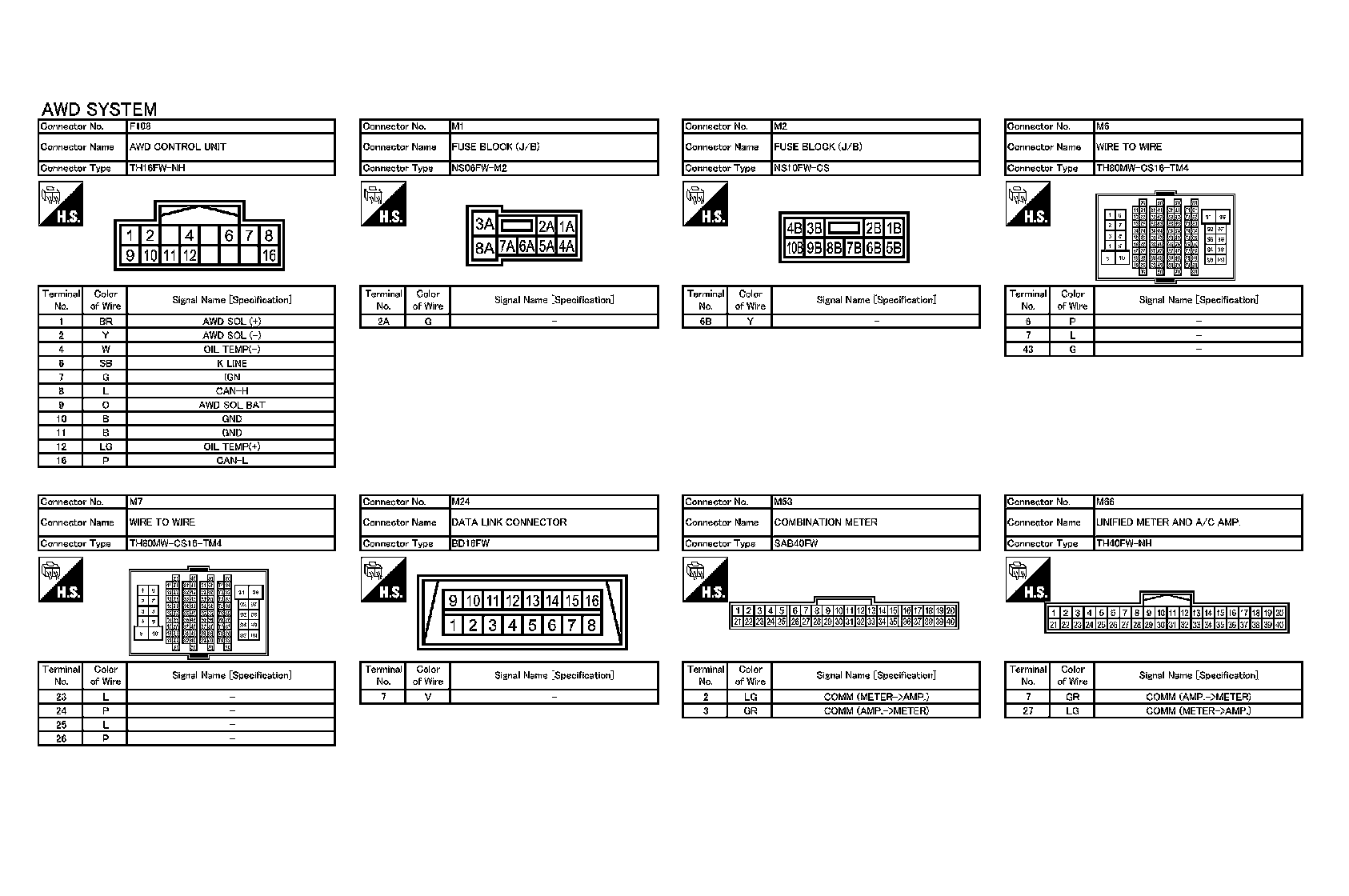

Wiring Diagram - AWD System - Part 1:

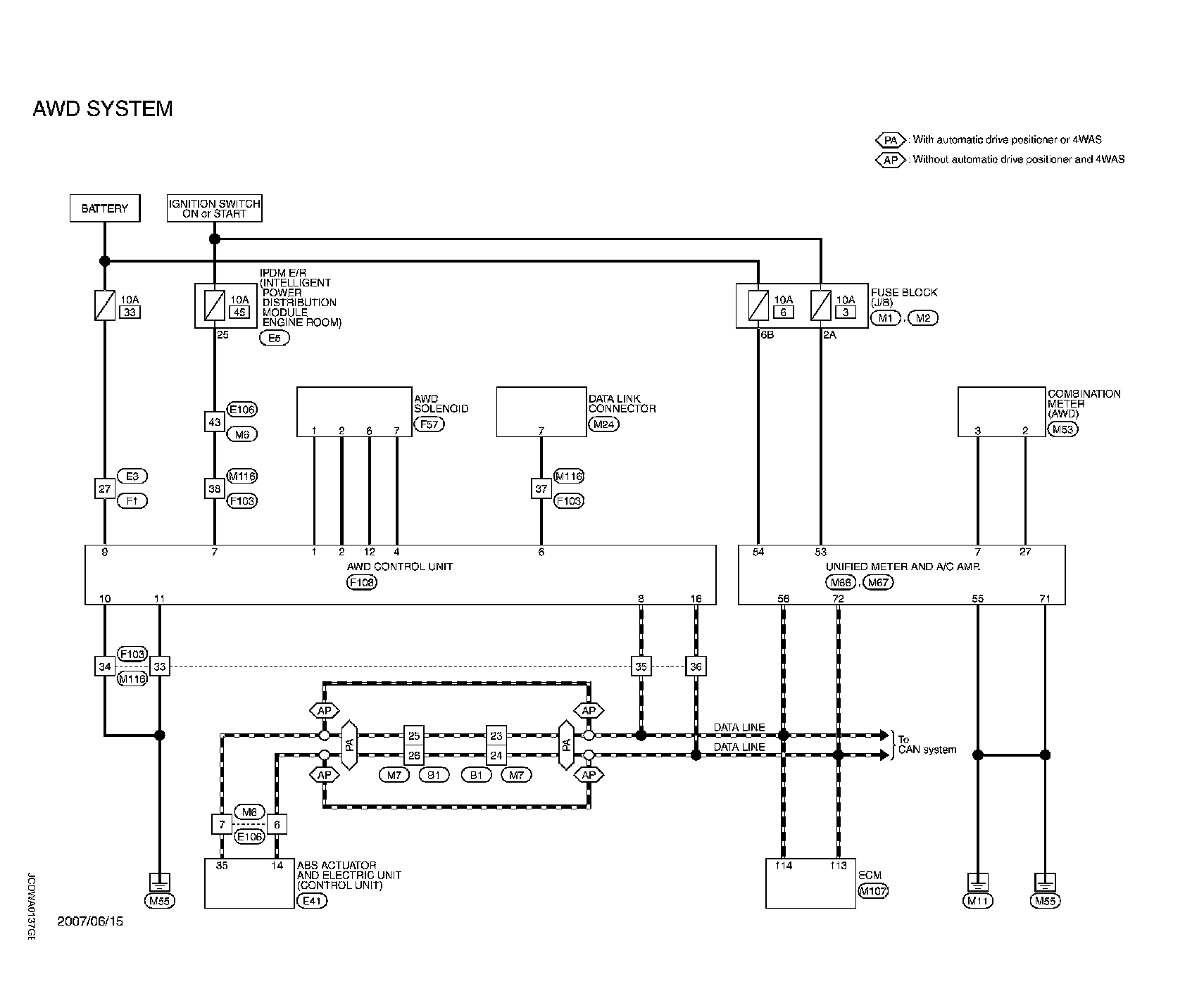

Wiring Diagram - AWD System - Part 2:

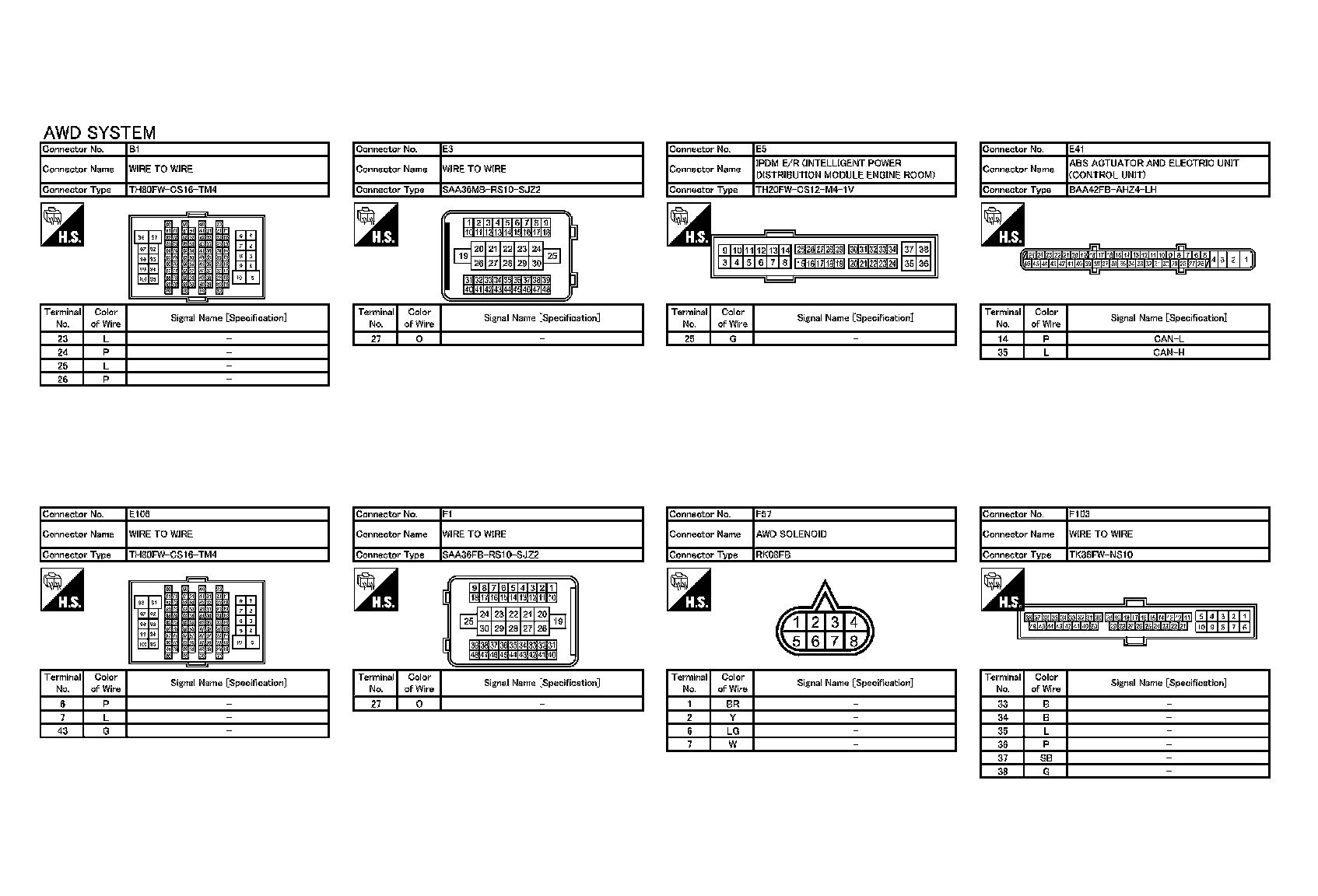

Wiring Diagram - AWD System - Part 3:

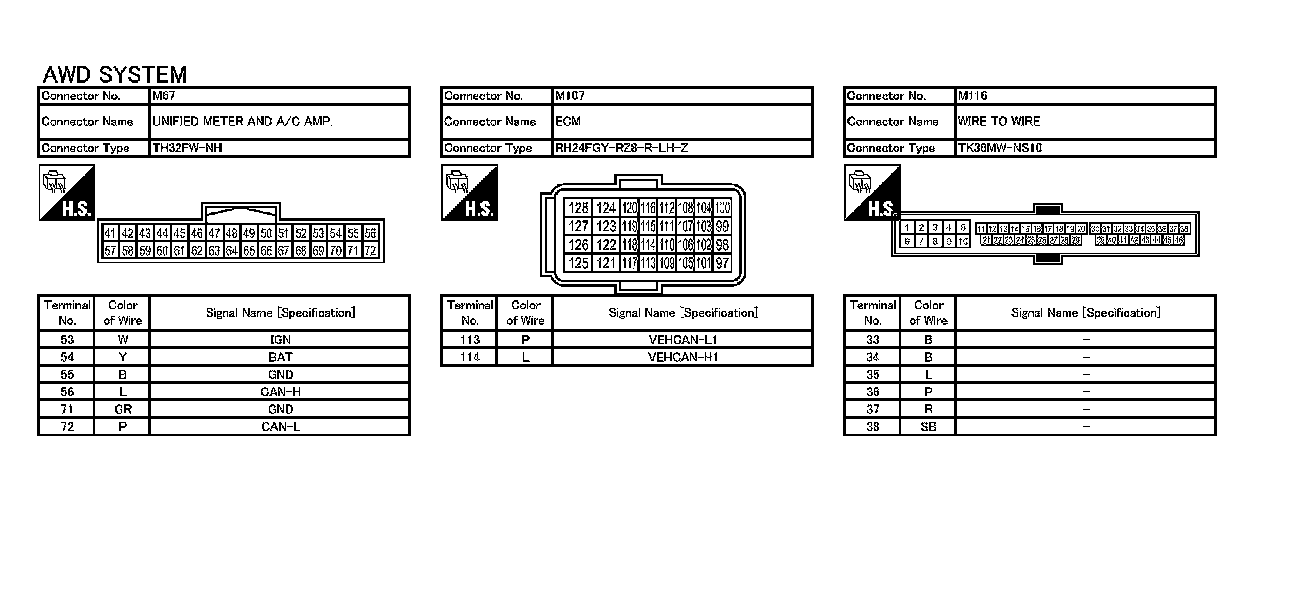

Wiring Diagram - AWD System - Part 4:
Click here to view the eWD.
