Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2008
>>
G35x Sedan AWD V6-3.5L (VQ35HR)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Transfer Case
>>
Transfer Assembly
Transfer Assembly

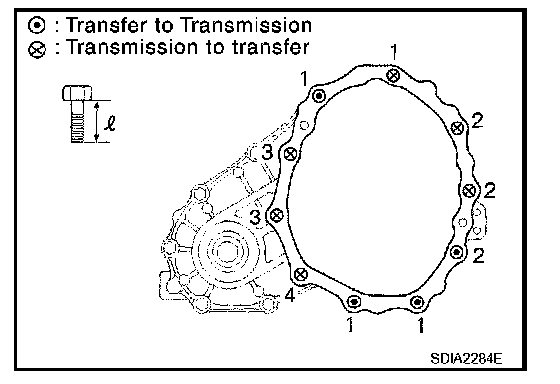

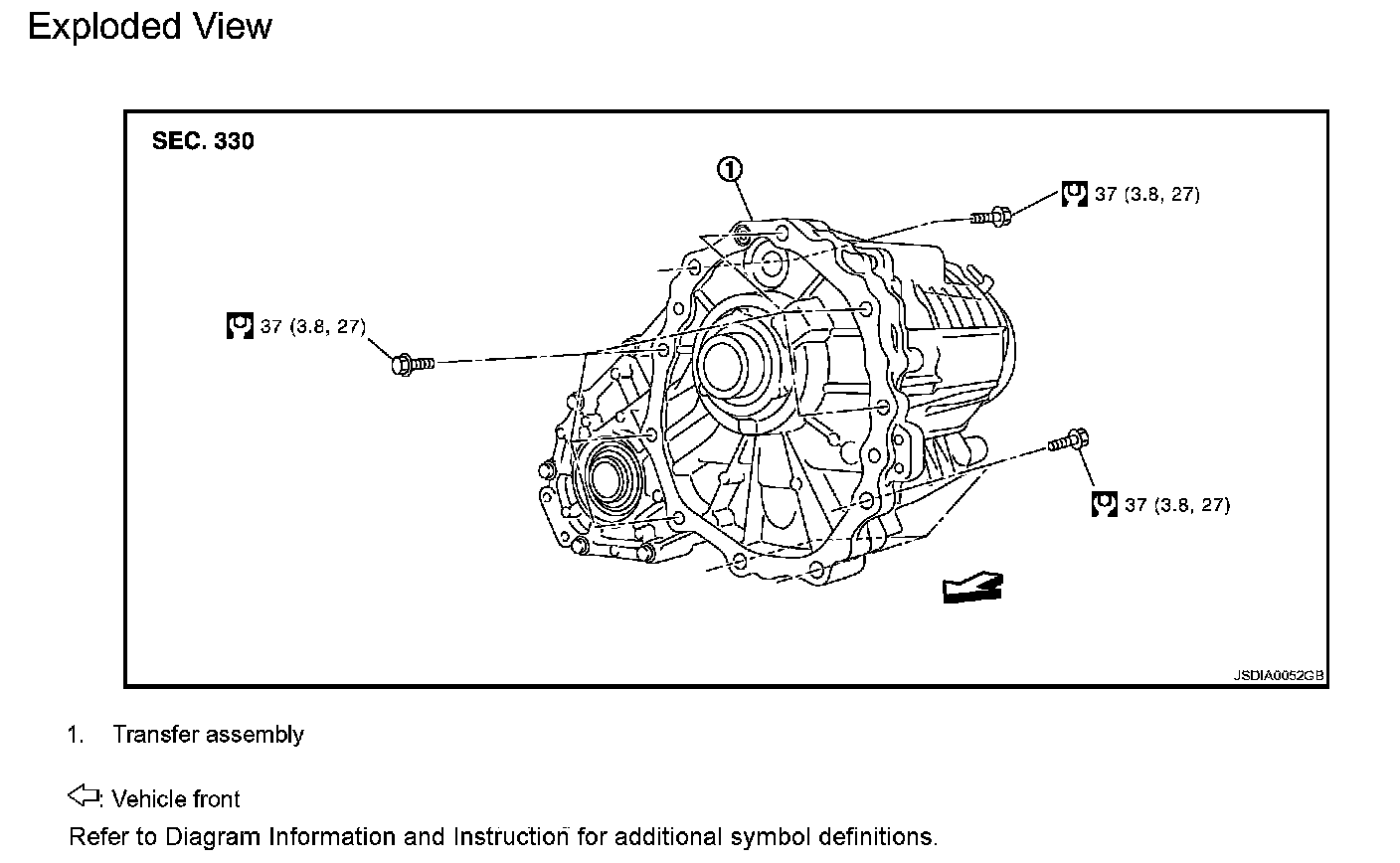

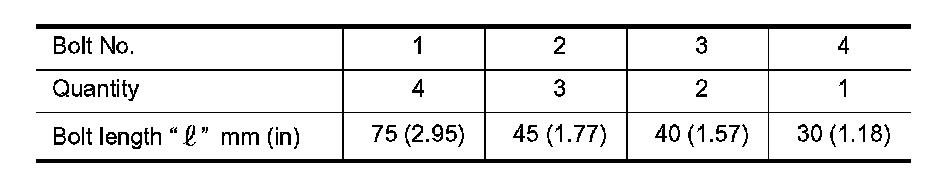

DLN-54 Exploded View:
