Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2008
>>
M35 V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Service and Repair
>>
Disassembly and Assembly
Disassembly and Assembly

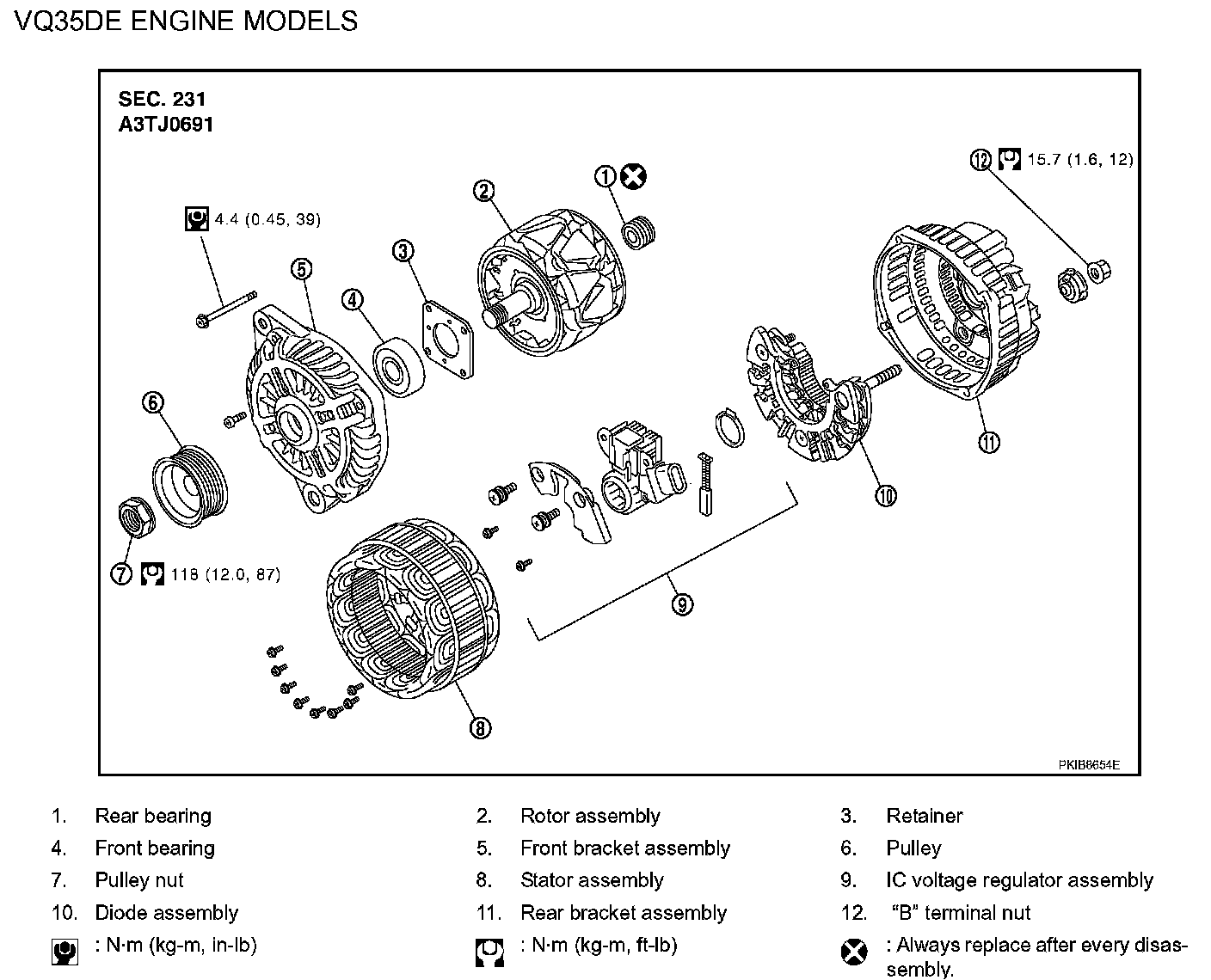

SC-32 Exploded View:
